Uniview | UNV 160Wh Solar System Kit (A+C+D) | SLR-B160P60

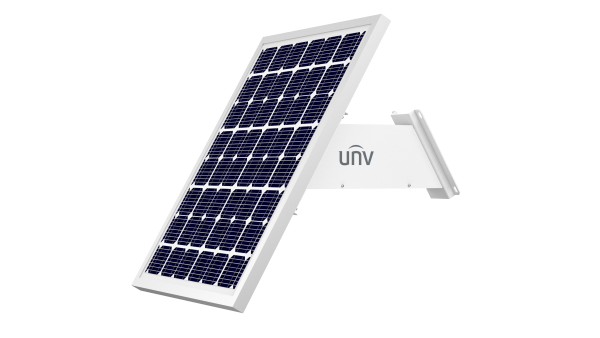

UNV 160Wh Solar System Kit (A+C+D)

SKU UNV-SLR-B160P60

Fast shipping from four branches
30-day returns on unopened products

Questions? Call us 866-364-0030The SS&Si dealer team

The SLR-B160P60 is a 160Wh solar power kit built to keep 4G surveillance cameras running in off-grid locations. The kit includes a 50Ah lithium battery, a 60W monocrystalline solar panel, and an operation and maintenance module - everything needed for a standalone power supply on a pole mount.

The hanging panel design and quick-connect 4-pin interfaces keep install time short. Pole-mount bands fit 67mm to 110mm diameter poles. A built-in heating module protects the battery in cold environments down to -20°C (-4°F), and multiple protections (overcharge, undervoltage, high/low temp) guard against field failures. The maintenance module (IPX5-rated) supports RS485 and includes a visual status indicator for quick diagnostics. Battery percentage can overlay on the camera's live OSD feed.

160Wh (50Ah) lithium battery for extended runtime through night and overcast conditions
60W monocrystalline solar panel with ≥22% cell conversion efficiency
Pole-mount bands accommodate 67mm to 110mm pole diameters
Built-in heating module for cold-weather battery protection down to -20°C (-4°F)
12V DC output (9-12.6V range), 2A max current
Not NDAA-compliant - manufacturer is on the U.S. Entity List

Specifications

SKU	UNV-SLR-B160P60
Brand	Uniview
Operating Voltage	9V - 12.6V DC output
Power Source	60W monocrystalline solar panel
Battery Capacity	50Ah / 160Wh lithium
Max Output Current	2A
Operating Temperature	-20°C to 55°C (-4°F to 131°F) discharge; -20°C to 45°C (-4°F to 113°F) charge
IP Rating	IPX5 (maintenance module)
Certifications	Not NDAA-compliant (manufacturer on U.S. Entity List)
Mounting	Pole mount (67-110mm / 2.6-4.3 in diameter)
Connectivity	RS485, 4-pin quick connector input/output
Cell Conversion Efficiency	≥22%
Dimensions (Battery)	16.5 x 4.6 x 13.2 in (419.2 x 118 x 336.5 mm)
Dimensions (Solar Panel)	30.1 x 15.6 x 1.0 in (765 x 395 x 25 mm)
Dimensions (O&M Module)	3.5 x 3.5 x 1.5 in (90 x 90 x 38.3 mm)
Weight	18.6 lbs (8.44 kg) total
