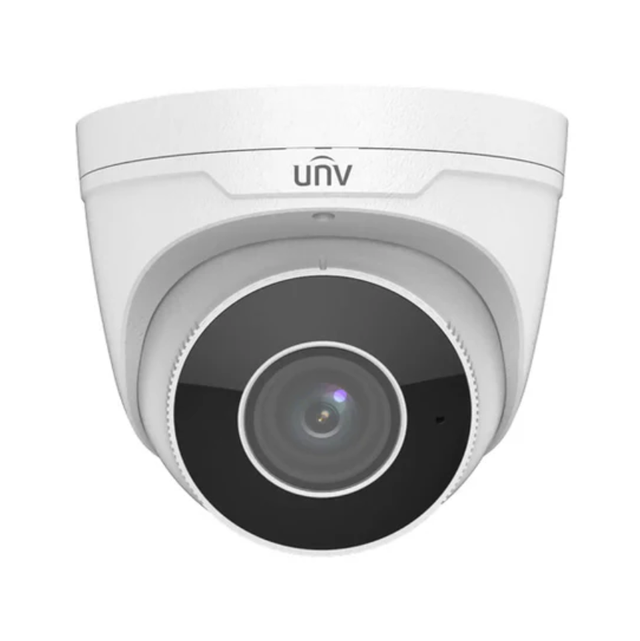

Uniview | UNV IP Varifocal Turret, 20fps@4MP(2688x1520), 2.8-12mm Motorized | IPC3634SR4-ADZK-H

UNV 4MP HD IR VF Eyeball Network Camera

• High-Quality Image: Features a 4MP, 1/3" CMOS sensor for sharp and detailed visuals.
• Resolution Options:
  • 4MP (2688x1520) @ 25/20fps
  • 4MP (2560x1440) @ 25/20fps
  • 3MP (2304x1296) @ 30/25fps
  • 2MP (1920x1080) @ 30/25fps
• Advanced Video Compression: Supports Ultra 265, H.265, H.264, and MJPEG for efficient data management.
• Wide Dynamic Range: 120dB true WDR technology ensures clear imaging even in high-contrast lighting conditions.
• Corridor Mode: Supports 9:16 Corridor Mode for vertical surveillance applications.
• Smart IR: Provides infrared illumination up to 40m (131ft) for enhanced night visibility.
• Storage Capability: Compatible with Micro SD cards up to 256GB for local storage.
• Durability: Rated IP67 for dust and water resistance.
• Power Supply: Supports PoE (Power over Ethernet) for simplified installation.
• Adjustment: 3-Axis for flexible mounting angles.

Supported Mounts:

• TR-WM03-B-IN: 3-inch Fixed Dome Mount
• TR-UP06-IN: Pole Mount Adapter
• TR-JB03-H-IN: Fixed Dome Junction Box

Additional Information:

• NDAA Compliant: Yes

SPEC SHEET
