Description
The Vertical Cable 214-2300s Series is a high-performance, 4-component composite access control cable engineered to simplify complex installs and reduce labor on commercial job sites. By consolidating four essential conductors into one streamlined pull, it eliminates cable clutter while improving installation speed and consistency.
Each cable integrates:
- 22-AWG / 3 Pair (Shielded)
- 18-AWG / 4 Conductor
- 22-AWG / 4 Conductor
- 22-AWG / 2 Conductor
All components are enclosed within a single, easy-to-route plenum-rated jacket, purpose-built for professional access control systems in demanding commercial environments.
Built for Commercial Performance
Rated CMP / CL3P Plenum, the 214-2300s Series is fully compliant for installation in air-handling spaces and above drop ceilings. Stranded bare copper conductors provide flexibility when navigating tight pathways, while the foil-shielded 22/3P component protects sensitive card reader data from EMI and electrical interference.

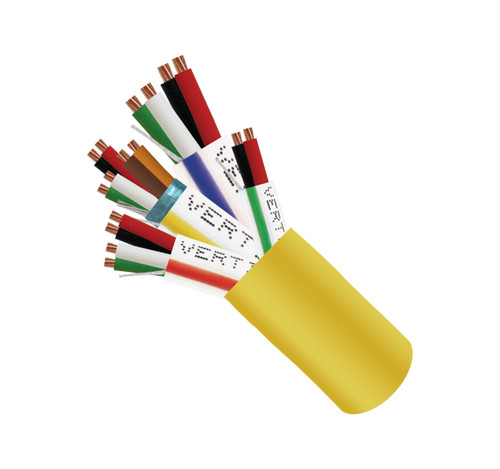

The 214-2333/P/YL1K features a highly visible Yellow jacket, the industry standard for identifying access control and security runs. Also available in Black and White to match your project requirements and organizational standards.
Each 1000 ft reel is packaged on a durable wooden spool to withstand the rigors of large-scale commercial deployments.
Key Benefits for Professional Dealers
- Reduce Labor Time: Four cables in one pull significantly decreases installation time and job site complexity.
- Cleaner Terminations: Color-coded inner jackets and clearly printed markings (Card Reader, Lock Power, REX, Door Contact) eliminate guesswork and speed up punch-downs.
- Code-Compliant Installs: CMP/CL3P rating ensures safe installation in plenum and HVAC spaces.
- Reliable Signal Integrity: Shielded reader pair minimizes interference and reduces service callbacks.
- Faster Prep Work: Individual nylon rip cords for each component allow clean stripping without conductor damage.
- Standards-Compliant Performance: ETL Listed, RoHS compliant, and designed to exceed ANSI/TIA-568.2-D and ISO/IEC 11801 specifications.
