Access Control Plenum (UL) VC
SKU VC-214-2330/P/YL Model 214-2330/P/YL
- Fast shipping from four branches
- 30-day returns on unopened products

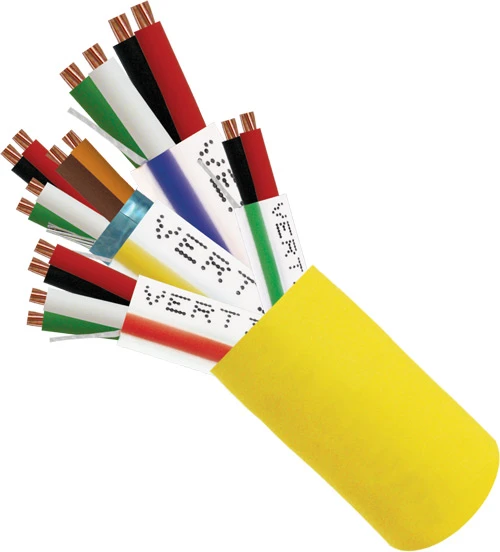

A composite cable carrying every conductor an opening needs in one jacket. One pull instead of four, which on a door twenty feet up a corridor ceiling is most of the labour saved.
Access Control Plenum (UL) VC
Supplied as Vertical Cable part 214-2330/P/YL. Full manufacturer specifications are linked in the Documents tab.
Features
- 4 Component Access Control Cable
- Contains: 22AWG 3 Pair Shielded, 18AWG 4 Conductor, 22AWG 4 Conductor, 22AWG 2 Conductor
- Each component contains a rip cord
- Overall PLENUM RATED Jacket
- Applications Include: Access Control Panels, Security Panels, Card Readers, Sensors, Keypads, Power, Microphones, Speakers, Alarm Systems
- UL Listed, RoHs Compliant
- 500 ft Spool
About Vertical Cable
Vertical Cable is a US manufacturer and distributor of low voltage and fiber cabling. Parts are supplied to published specification with manufacturer spec sheets available, which matters when an installation has to be certified or handed over with documentation.
Specifications
| SKU | VC-214-2330/P/YL |
|---|---|
| Brand | Vertical Cable |
| Manufacturer part number | 214-2330/P/YL |
| Product type | Composite access control cable |
| Fire rating | Plenum rated (CMP) |
| Colour | Yellow |
| Compliance | RoHS compliant |
Documents and resources
FAQs
What is the manufacturer part number?
Vertical Cable part 214-2330/P/YL. Quote this when cross-referencing against a specification or a bill of materials.
Is a manufacturer specification sheet available?
Yes. The Vertical Cable specification sheet for this part is linked in the Documents tab, which covers the full published performance and construction data.
What is the fire rating of this cable?
Plenum rated (CMP). Confirm the rating required for the specific pathway before installing, since plenum spaces and riser shafts have different requirements.
