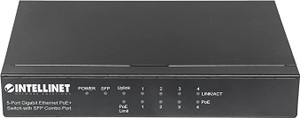

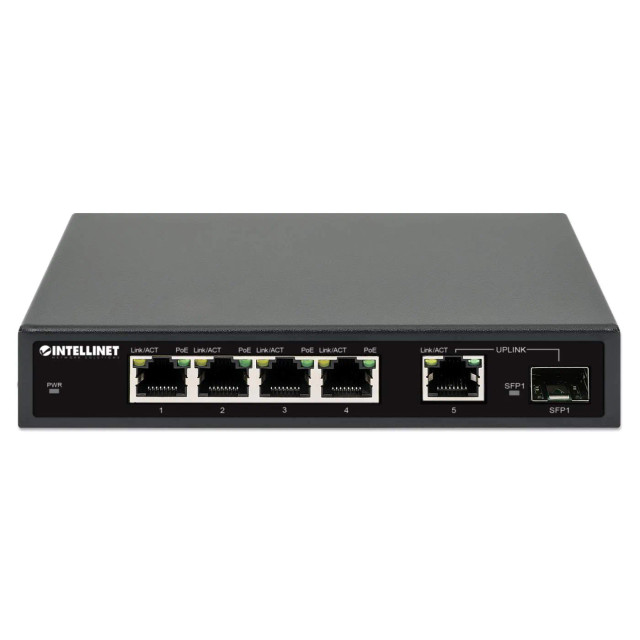

5-Port Gigabit Ethernet PoE+ Switch with SFP Port
SKU INT-561822
- Fast shipping from four branches
- 30-day returns on unopened products
5-Port Gigabit Ethernet PoE+ Switch with SFP Port. Supplied as Intellinet article 561822. The manufacturer datasheet is linked in the Documents tab.
Key details
- Network Cards and Adapters
- Create an Account
- 5-Port Gigabit Ethernet PoE+ Switch with SFP Port
- 91 W PoE Power Budget, Four PSE PoE Ports, IEEE 802.3at/af (PoE+/PoE) Compliant, Desktop Format, Wall-mount Option
- Provides up to four PoE network devices with power and data
- Four 10/100/1000 Mbps IEEE 802.3at/af-compliant RJ45 PoE ports, one gigabit RJ45 port and one gigabit SFP port
- PoE power budget of 91 watts
- United States
About Intellinet
Intellinet supplies network switches, PoE injectors and rack infrastructure for the professional channel, with published datasheets and declarations of conformity per article number.
Specifications
| SKU | INT-561822 |
|---|---|
| Brand | INTELLINET |
| Manufacturer part number | 561822 |
| Standards | IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Backplane speed | 12 Gbps |
| Dimensions | 86 x 153 x 29 mm (3.39 x 6.02 x 1.14 in.) |
| Weight | 0.41 kg |
| PoE budget | 91 W PoE Power Budget, Four PSE PoE Ports, IEEE 802.3at/af (PoE+/PoE) Compliant, Desktop Format, Wall-mount Option |
| Operating temperature | 0 - 40°C (32 - 104°F) |
| Ports | 5 port |
| PoE standard | PoE+ (IEEE 802.3at/af) |
Documents and resources
FAQs
What is the Intellinet article number?
Article 561822. Intellinet catalogue everything by article number, so quote this when cross-referencing a datasheet or a bill of materials.
Is a datasheet available?
Yes. The Intellinet datasheet for article 561822 is linked in the Documents tab.
Which PoE standard does this support?
PoE+ (IEEE 802.3at/af). Check the powered device's class and draw against the switch's total power budget before specifying.
