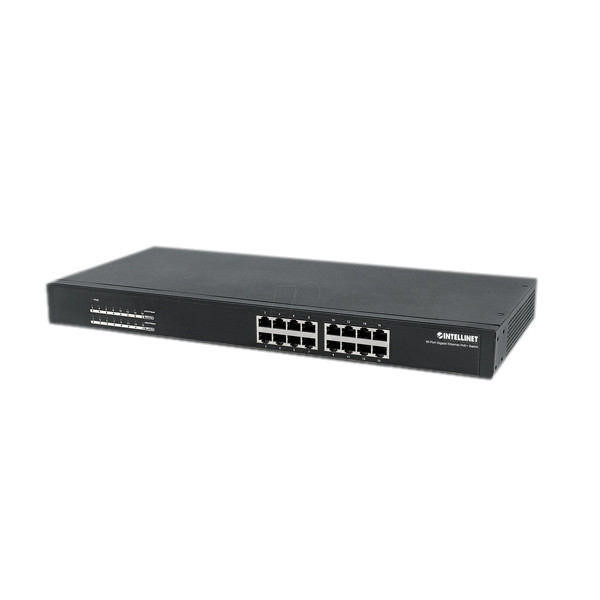

16-Port Gigabit Ethernet PoE+ Switch
SKU INT-560993
- Fast shipping from four branches
- 30-day returns on unopened products
16-Port Gigabit Ethernet PoE+ Switch. Supplied as Intellinet article 560993. The manufacturer datasheet is linked in the Documents tab.
16-Port Gigabit Ethernet PoE+ Switch
Save installation time and money with PoE.
- Provides power and data connection for up to 16 PoE network devices
- Saves time and money by delivering data and power via existing network cables
- 10/100/1000 auto-sensing ports automatically detect optimal network speeds
- IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
- Power output up to 30 watts per port
- PoE power budget of 220 watts
- Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
- Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
- All RJ45 ports with Auto-MDIX (auto uplink) support
- Store and forward switching architecture
- IEEE 802.3x flow control for full duplex
- Supports up to 8192 MAC address entries
- 256 kBytes buffer memory
- Two high-volume cooling fans ensure perfect ventilation
- Includes 19" rackmount brackets
- Three-Year Warranty
The Intellinet 16-Port Gigabit Ethernet Rackmount PoE+ Switch (560993) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with 16 Gigabit Ethernet ports, this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1,000 Mbps.
About Intellinet
Intellinet supplies network switches, PoE injectors and rack infrastructure for the professional channel, with published datasheets and declarations of conformity per article number.
Specifications
| SKU | INT-560993 |
|---|---|
| Brand | INTELLINET |
| Manufacturer part number | 560993 |
| Standards | IEEE 802.3at, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Backplane speed | 32 Gbps |
| MAC address table | 8192 entries |
| Buffer memory | 256 kBytes |
| Dimensions | 208 (L) x 442 (W) x 44 (H) mm / 8.19 (L) x 17.4 (W) x 1.73 (H) in. |
| Weight | 3.80 kg (8.3 lbs.) |
| Power consumption | 260 watts (maximum) |
| PoE budget | 220 W PoE Power Budget, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), Endspan, Rackmount |
| Operating temperature | 0 – 40°C (32 – 104°F) |
| Ports | 16 port |
| PoE standard | PoE+ (IEEE 802.3at/af) |
