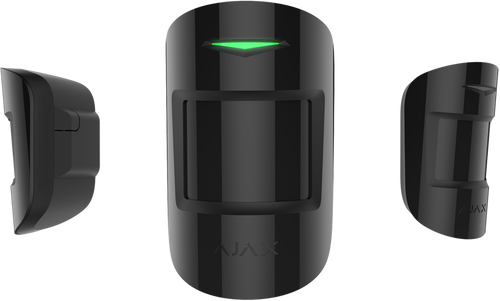

AJAX | MotionProtect Jeweller Wireless PIR Motion Detector with Pet Immunity, Black | 42822

AJAX | MotionProtect Jeweller Wireless PIR Motion Detector with Pet Immunity, Black | 42822

No reviews yet Write a Review
SKU:
AJ-42822

A wireless PIR covering 39 feet across 88.5 degrees, with pet immunity up to 44 pounds. It is the volume motion detector on an Ajax job, and it runs up to five years on the battery it ships with.

Built for the installer

Pet immunity here is a real specification rather than a marketing line: up to 44 pounds in weight and up to 1.6 feet in height. Above that the animal is treated as a person, which is the honest way to quote it to a customer with a large dog.

SmartDetect is the software filter that separates a person from a heat source. Combined with temperature compensation it holds detection performance from 14F to 104F, which matters in a space where the ambient temperature approaches body temperature and a cheaper PIR starts missing people.

Key features

  • Pet immunity to 44 lb and 1.6 ft, a specified limit rather than a vague claim
  • SmartDetect filtering separates a person from a passing heat source
  • Temperature compensation holds detection from 14F to 104F where cheap PIRs lose sensitivity
  • Up to 5 years battery life on the pre-installed CR123A
  • Three sensitivity levels set remotely, with no trimmer to adjust on a ladder

System requirements

Requires an Ajax hub or range extender. Indoor use only. Recommended mounting height is 7.9 ft.

Brand:
AJAX
Radio communication range:
Up to 5,600 ft in open space, between the device and a hub or range extender
Sensitive element:
PIR sensor
Motion detection distance:
Up to 39 ft when installed at 7.9 ft
Detection angle:
Horizontal 88.5 degrees
Detection speed:
From 1 to 6.6 ft/s
Sensitivity:
3 levels, adjustable in the Ajax app
Pet immunity:
Up to 44 lb weight and up to 1.6 ft height
False alarm filtering:
SmartDetect software algorithm with temperature compensation
Recommended mounting height:
7.9 ft
Sabotage protection:
Tamper alarm on enclosure opening or removal from the mounting panel
Use environment:
Indoor use only
Power input:
1 x CR123A, pre-installed
Battery life:
Up to 5 years
Dimensions:
4.33 x 2.56 x 1.97 in
Device weight:
3.03 oz
Operating temp:
14F to 104F
Operating humidity:
Up to 75%. UL/ULC certified to 93%
Protection class:
IP50
Colour:
Black
Region:
9NA, North America model
Radio protocol:
Jeweller, two-way encrypted wireless
Frequency band (North America):
905.0-926.5 MHz, certified to UL/ULC standards
Radio modulation:
GFSK with frequency hopping
Encryption:
Block encryption with a dynamic key
Communication loss detection:
After 36 seconds
Anti-spoofing:
Device authentication
Warranty:
24 months
What size pet will it ignore?
Up to 44 lb in weight and up to 1.6 ft in height. A dog taller or heavier than that will be detected as a person, so quote accordingly on sites with large animals.
How high should it be mounted?
7.9 ft. The 39 ft detection distance and 88.5 degree angle are both specified at that height, so mounting lower or higher changes the coverage.
Does it work in a warm room?
Yes. Temperature compensation maintains effective detection from 14F to 104F. A PIR without compensation loses sensitivity as ambient temperature approaches body temperature.
Does this device need an Ajax hub?
Yes. All Jeweller devices report to an Ajax hub or a range extender. The device cannot operate standalone and does not connect to a third-party panel directly.
What does the 9NA region code mean?
It is the North America model, operating on the 905.0-926.5 MHz Jeweller band certified to UL/ULC standards. European models on 868 MHz are not interchangeable with it.
How quickly is a lost device detected?
Within 36 seconds. Jeweller polls each device continuously, so a jammed, removed or failed device is reported rather than quietly going offline.
