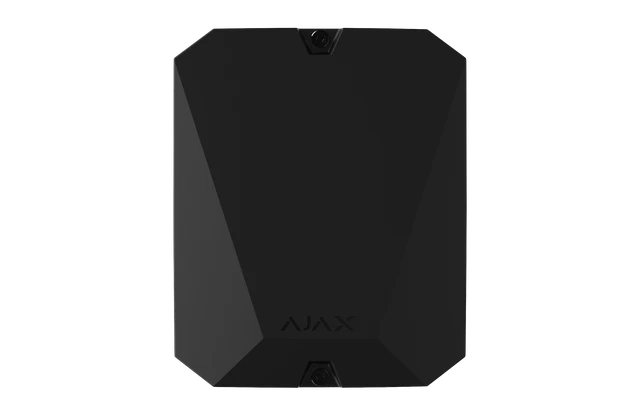

AJAX | MultiTransmitter Jeweller Integration Module for 18 Wired Zones, Black | 42829

AJAX | MultiTransmitter Jeweller Integration Module for 18 Wired Zones, Black | 42829

No reviews yet Write a Review
SKU:
AJ-42829

Eighteen wired zones onto an Ajax system from one module. This is the part that makes a hybrid takeover viable: the existing wired detectors stay exactly where they are and the customer gets the Ajax app, without rewiring a building.

Built for the installer

It supports NC, NO, EOL, 2EOL and 3EOL connection types, with EOL resistance configurable from 1 kOhm to 15 kOhm per resistor, so it matches the supervision scheme already in the existing panel rather than requiring the loops to be rebuilt. Cable runs reach 1,300 feet.

Fifteen wired device event types are selectable per zone, so each device reports as what it actually is. It is mains powered from 100-240 V, which also means it does not consume detector battery budget the way the single-zone Transmitter does.

Key features

  • 18 wired zones from one module, which is what makes a hybrid takeover economic
  • NC, NO, EOL, 2EOL and 3EOL support to match the existing supervision scheme
  • EOL resistance configurable from 1 kOhm to 15 kOhm per resistor
  • Cable runs to 1,300 ft so existing loops usually reach without extension
  • 15 selectable event types per zone so each device reports correctly
  • Mains powered, with no battery budget consumed by the connected devices

System requirements

Requires an Ajax hub or range extender. Powered from 100-240 V mains and designed for indoor use only. 2EOL and 3EOL require firmware 2.13 or later.

Brand:
AJAX
Radio communication range:
Up to 6,500 ft in open space, between the device and a hub or range extender
Wired zones:
18
Connection types:
NC, NO, EOL, 2EOL, 3EOL. Firmware below 2.13 supports NC, NO, EOL only
EOL resistance:
1 kOhm to 7.5 kOhm in 100 Ohm increments, or 1 kOhm to 15 kOhm per resistor up to 30 kOhm total
Cable length:
Up to 1,300 ft with a 0.00034 sq in copper-clad aluminium conductor
Operation mode:
Pulse or bistable, adjustable in the Ajax app
Event types:
15 event types of wired devices, selectable per zone
Power input:
100-240 V AC, 50/60 Hz
Sabotage protection:
Tamper alarm on enclosure opening or removal from the mounting panel
Use environment:
Indoor use only
Colour:
Black
Region:
9NA, North America model
Radio protocol:
Jeweller, two-way encrypted wireless
Frequency band (North America):
905.0-926.5 MHz, certified to UL/ULC standards
Radio modulation:
GFSK with frequency hopping
Encryption:
Block encryption with a dynamic key
Communication loss detection:
After 36 seconds
Anti-spoofing:
Device authentication
Warranty:
24 months
Can it match the existing panel's end-of-line supervision?
Yes. It supports NC, NO, EOL, 2EOL and 3EOL with resistance configurable from 1 kOhm to 15 kOhm per resistor, so existing loops usually connect without being rebuilt. 2EOL and 3EOL need firmware 2.13 or later.
How far can the existing wiring run?
Up to 1,300 ft, which means existing loops in most buildings reach the module without extension.
Why use this instead of several single Transmitters?
Cost, hub capacity and power. One module covers 18 zones from one device slot and runs on mains, where 18 Transmitters would occupy 18 slots and 54 batteries.
Does each zone report as a distinct device type?
Yes. Fifteen wired device event types are selectable, so each zone reports as the kind of device it actually is rather than a generic contact.
Does this device need an Ajax hub?
Yes. All Jeweller devices report to an Ajax hub or a range extender. The device cannot operate standalone and does not connect to a third-party panel directly.
What does the 9NA region code mean?
It is the North America model, operating on the 905.0-926.5 MHz Jeweller band certified to UL/ULC standards. European models on 868 MHz are not interchangeable with it.
How quickly is a lost device detected?
Within 36 seconds. Jeweller polls each device continuously, so a jammed, removed or failed device is reported rather than quietly going offline.
