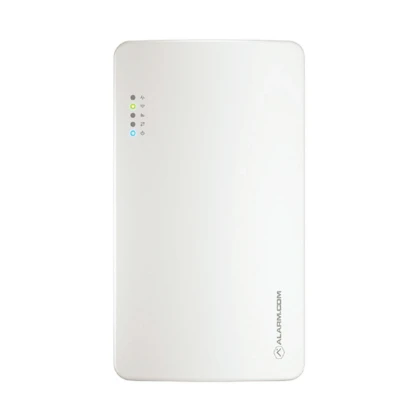

Dual-Path System Enhancement Module for Honeywell/ADEMCO VISTA Panels, Telus Canada
Alarm.com

Dual-Path System Enhancement Module for Honeywell/ADEMCO VISTA Panels, Telus Canada

SKU ADC-SEM300-VT-TL Model ADC-SEM300-VT-TL

This product has reached end of life.

Call or text your rep for an alternative. 866-364-0030

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

Brings an existing Honeywell/ADEMCO VISTA panel onto Alarm.com without replacing it. The customer keeps the panel, the keypads and every device already wired to it, and gains app control, remote access and notifications. On a takeover that is the difference between a module sale and a full system replacement the customer will not authorise.

Built for the alarm installer

It lands on the keypad bus with two data connections plus 12V and ground, so the install is a handful of terminations inside the existing can rather than a rewire. Z-Wave Plus support is built in, which means locks, lighting and thermostats can be added later without another controller on the wall.

One thing to program correctly: the SEM must be the sole communication path for alarm signaling. It is not compatible with the panel continuing to report over POTS, so the phone line reporting comes out of the programming as part of the job.

This variant reports over Telus 4G LTE, Canada.

Key features

  • Keeps the existing panel and devices, turning a replacement conversation into a module sale
  • Connects on the keypad bus, so the install is terminations rather than a rewire
  • Z-Wave Plus built in for locks, lighting and thermostats with no extra controller
  • Telus coverage with dual-path Ethernet available alongside cellular
  • Rated 14F to 131F, which covers unconditioned utility spaces and garages

System requirements

Requires a compatible Honeywell/ADEMCO VISTA panel (10P, 15P, 20P or 21iP, 2005 or later, v3.1+) and 12V from the panel. The SEM must be the sole alarm signaling path; POTS reporting must be removed. Ethernet is optional for dual-path.

Specifications

SKUADC-SEM300-VT-TL
BrandAlarm.com
Form factorSystem Enhancement Module in enclosure
Compatible panelsHoneywell/ADEMCO VISTA 10P, 15P, 20P and 21iP (2005 or later, v3.1+)
Panel interfacesTwo keypad bus connections (Data In/Out), 12V power, ground
Power input12V nominal, 125 mA continuous, 230 mA max
Operating temp14F to 131F (-10C to 55C)
Storage temp-30F to 140F (-34C to 60C)
Operating humidityUp to 90% RH, non-condensing
Dimensions7.66 x 4.35 x 1.65 in (19.46 x 11.05 x 4.19 cm)
AutomationOut-of-box support for Z-Wave Plus lock, lighting and thermostat devices
Cellular networkTelus 4G LTE, Canada
Communication pathsCellular with optional broadband Ethernet for dual path
Not compatible withPOTS. The SEM must be the sole communication path for alarm signaling

Documents and resources

FAQs

Can the panel keep its POTS line as a backup path?
No. The SEM must be the sole communication path for alarm signaling. It is not compatible with the panel also reporting over POTS, so the phone line reporting has to be removed from the programming.
Which VISTA panels does this work with?
Honeywell/ADEMCO VISTA 10P, 15P, 20P and 21iP manufactured 2005 or later at firmware v3.1 or higher. Check the panel date code and firmware before the visit.
Does the customer need a new panel to get the Alarm.com app?
No. That is the point of the SEM. It brings an existing compatible VISTA panel onto Alarm.com for app control, remote access and notifications without replacing the panel or rewiring the devices.
Does it add smart home capability?
Yes. The SEM includes out-of-box support for Z-Wave Plus locks, lighting and thermostats, so automation can be added to a legacy panel without another controller.
What cellular network does this variant use?
Telus 4G LTE, Canada. Confirm carrier coverage at the site address before ordering, since the carrier is fixed per part number.
