Description

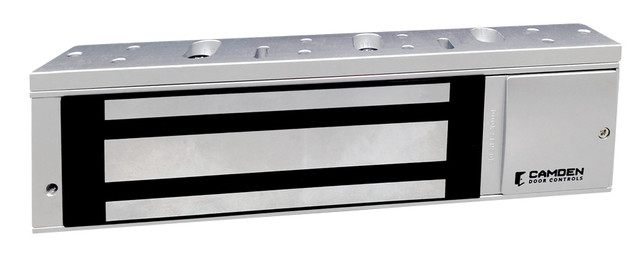

CX-91S-12 - 1200 Lb. Surface Mount Mag Lock by Camden Door Controls
The Camden CM-91S-12 is a single door mag lock with a holding force of 1200 lbs. It can be surface mounted and the 600 lb models are UL and CUL listed. It has been proven to be weather and vandal resistant over thousands of installations.
CM-91S-12 Application: 1200 Lb. Surface Mount Single Door - Basic.
Features and Benefits:
- Weather and vandal resistant construction proven over thousands of installations.
- Compatible with all access/egress systems.
- Lifetime warranty.
- Time delay of 0 - 30 seconds.
- Surface mount model.
- Bond sensor 1A@30V DC.
- On board MOV power surge protection prevents damage to mag lock.
- Wide range of mounting brackets and spacers available.
- Field selectable 12/24V DC operation.
Specification Data:
- Dimensions (Body): 2-7/8" H x 21" W x 1-9/16" D (73mm x 533mm x 40mm).
- Tempature Range: -15°C to 50°C degrees (5°F - 122°F).
