  • Centrios | Bluetooth Exit Trim with Mobile, Card & Fob Access, Taylor Bay Lever, Black Suede, Grade 1 UL10C Fire-Rated | CEE100-TB-BSP-PARA-KR

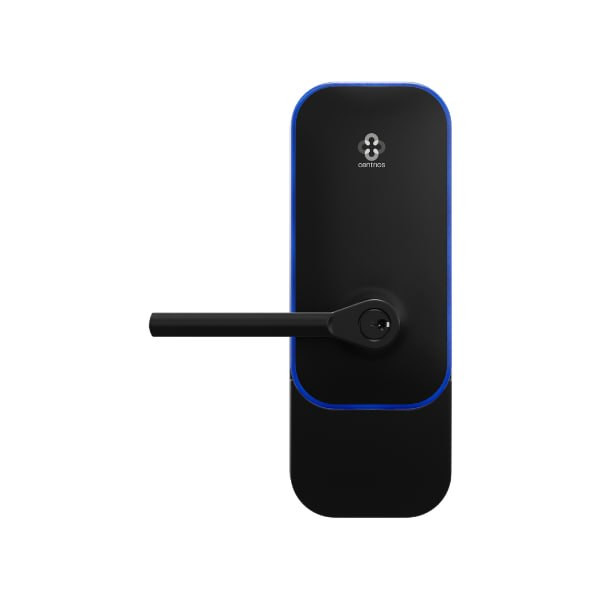

Bluetooth Exit Trim with Mobile, Card & Fob Access, Taylor Bay Lever, Black Suede, Grade 1 UL10C Fire-Rated
  • Wireless technology Bluetooth
Centrios

Bluetooth Exit Trim with Mobile, Card & Fob Access, Taylor Bay Lever, Black Suede, Grade 1 UL10C Fire-Rated

SKU CEN-CEE100-TB-BSP-PARA-KR

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The Centrios CEE100 Exit Trim brings Bluetooth mobile and Centrios credential access to commercial panic hardware. Taylor Bay lever, Black Suede Powder finish, ANSI Grade 1, UL10C 3-hour fire rated, and IP67 sealed on both sides of the door. Ships with an ACCENTRA fixed core cylinder and two cut keys, keyed random.

Where this fits

Any commercial opening that already has (or is getting) a panic exit device: schools, medical facilities, warehouses, tenant buildings. The trim adds credentialed entry to the exterior side of the door while the panic bar handles code-required egress. Native fit with the ASSA ABLOY ACCENTRA 6100 exit device, retrofits to Von Duprin 98/108 and other supported commercial exit devices.

Key features

  • Taylor Bay lever, Black Suede finish on an ANSI/BHMA Grade 1 exit trim
  • UL10C 3-hour fire rated, installable on fire door assemblies
  • IP67 both sides, operating range -35°F to 140°F
  • Three credential paths: Bluetooth mobile via Centrios app, HID SEOS Centrios cards, Centrios fobs
  • ACCENTRA fixed core cylinder included with two cut keys, keyed random, for mechanical override
  • Field adjustable handing, Passage and Privacy modes, built-in door position sensing (DPS)
  • 4x AA primary power with 9V DC emergency contact on the exterior

Plan requirement

Bluetooth mobile works on the free tier. Card and fob credentials activate when the site upgrades to the Pro Plan. Schedules, permissions, and audit history run through the Centrios app on any plan.

Available configurations

This listing is the Taylor Bay lever, Black Suede (BSP) build. Same exit trim, other lever option:

Need a custom configuration?

Use the Centrios 3D configurator, pre-loaded to this exact exit trim build, to change finish, lever, cylinder, latch, strike, keying, and more. When you have the configuration you want, download the PDF or copy the SKU and send it to your SS&Si sales rep for a quote on custom configurations.

Open the 3D configurator

Related credentials

Specifications

SKUCEN-CEE100-TB-BSP-PARA-KR
BrandCentrios
Form factorExit trim for panic hardware
Lever styleTaylor Bay (TB)
FinishBlack Suede (BSP)
CylinderACCENTRA fixed core, supplied
KeyingTwo cut keys, keyed random (KR)
CommunicationBluetooth Low Energy (Centrios app)
CredentialsCentrios cards and fobs (Pro Plan required), Bluetooth mobile via Centrios app
Power input4x AA (primary); 9V DC emergency contact
GradeANSI/BHMA Grade 1
Fire ratingUL10C, 3-hour
Weather ratingIP67 (both sides of the door)
Operating temp-35°F to 140°F (-37°C to 60°C)
ComplianceADA, FCC, IC
Auto relockYes
Door position sensingBuilt-in (DPS)
ManagementCentrios app (schedules, audit history, centralized access permissions)
EcosystemProprietary to Centrios
IncludedExit Trim, ACCENTRA fixed core cylinder, two cut keys keyed random
Operating modesPassage and Privacy
HandingField adjustable (left or right)
Exit device compatibilityASSA ABLOY ACCENTRA 6100 (native); retrofits to Von Duprin 98/108 and other supported commercial exit devices

Documents and resources

FAQs

Is the exit device (panic bar) included?
No. This SKU is the Exit Trim only. Pair it with a compatible commercial exit device (verify device compatibility before ordering). Native fit with the ASSA ABLOY ACCENTRA 6100.
Can this be installed on a fire door?
Yes. The Exit Trim is UL10C 3-hour fire rated and can be installed on fire door assemblies, subject to the exit device's own fire rating and the door manufacturer's listing.
Is it rated for outdoor use?
Yes. IP67 sealed on both sides of the door, with an operating range of -35°F to 140°F. Suitable for exterior and unheated openings.
What credentials work with the Exit Trim?
Bluetooth mobile credentials via the Centrios app, Centrios proximity cards, and Centrios fobs. Card and fob support requires the Centrios Pro Plan.
How is it powered?
Four AA batteries provide primary power. A 9V DC contact on the exterior side accepts emergency power for override if the batteries are depleted.
Does the trim include a mechanical key override?
Yes. An ACCENTRA fixed core cylinder is supplied with two cut keys keyed random, so the opening can be operated mechanically if needed.
Which exit devices does this fit?
Native fit with the ASSA ABLOY ACCENTRA 6100 exit device. Retrofits to a range of commercial exit devices, including the Von Duprin 98/108 series.
Can I use it in Passage or Privacy mode?
Yes. The trim supports both Passage and Privacy modes for day-to-day operation, on top of scheduled and credentialed access.
Is the handing fixed at the factory?
No. Handing is field adjustable, so one SKU covers left-hand and right-hand openings without ordering a different variant.
