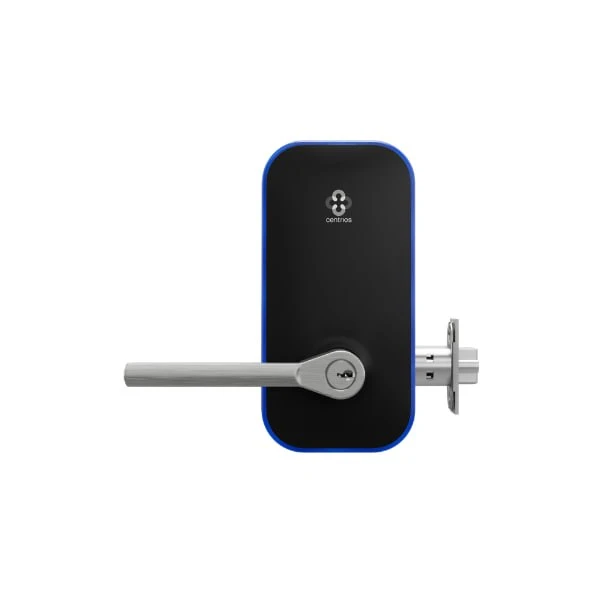

Bluetooth Cylindrical Smart Lock with Mobile, Card & Fob Access, Taylor Bay Lever, Satin Chrome, Grade 1 UL10C Fire-Rated

SKU CEN-CEB100-TB-626-PARA-CE-234S-497-KR

Fast shipping from four branches
30-day returns on unopened products

Questions? Call us 866-364-0030The SS&Si dealer team

The Centrios CEB100 puts commercial-grade mobile access on a standard cylindrical door prep without a hub, a controller, or a wire run to the opening. The lock stays offline. The user's phone is the bridge, and everything (audit, schedules, credential provisioning) rolls up to the Centrios web portal.

Built for the commercial installer

ANSI/BHMA Grade 1 body, UL10C 3-hour fire rating, and IP67 on both sides of the door. Standard cylindrical door prep, 2 3/4" backset, 2 3/4" square corner latch and ANSI 497 strike in the box. The cylinder is a supplied ASSA ABLOY ACCENTRA PARA fixed core with two cut keys keyed random and a KR keyway, so the opening drops into an existing master key schedule without a rekey.

Because the lock itself is offline and only Bluetooth-connected to the phone at the door, there is no network work at the opening. No Cat6 pull, no PoE budget, no wireless hub. That is the point.

Key features

Taylor Bay lever, Satin Chrome finish on an ANSI/BHMA Grade 1 cylindrical lock body
No hub, no wiring: 4x AA batteries with 9V emergency backup jumper, phone-as-bridge over Bluetooth
Multi-credential: Bluetooth mobile via the Centrios app, plus Centrios Cards and Fobs when the site is on the Pro Plan
UL10C 3-hour fire rating for commercial fire-rated openings
IP67 on both sides for exterior installs and wash-down environments, -35°F to 140°F operating range
Deadlocking latch, full-time passage egress, customizable schedules, and audit history managed from the Centrios web portal
Two-year comprehensive warranty covering finish, functionality, electrical, and mechanical from ASSA ABLOY

System requirements

An active Centrios account. The free tier covers up to 5 doors and 10 people with 24/7 Bluetooth mobile credentials. Card and fob credentials are gated behind the paid Pro Plan. Management, credential provisioning, and audit history live in the Centrios web portal, which the dealer or the end customer can hold the admin seat on depending on how the site is set up.

Available configurations

This listing is the Taylor Bay lever, Satin Chrome (626) build. Same lock, other lever and finish combinations:

Need a custom configuration?

Use the Centrios 3D configurator, pre-loaded to this exact cylindrical lock build, to change finish, lever, cylinder, latch, strike, keying, and more. When you have the configuration you want, download the PDF or copy the SKU and send it to your SS&Si sales rep for a quote on custom configurations.

Open the 3D configurator

Related accessories

Centrios Branded Card (25-pack): HID SEOS card credential
Centrios Non-Branded Card (50-pack): HID SEOS card credential in a plain finish
Centrios Branded Fob (25-pack): HID SEOS fob credential
Centrios Drill Jig: speeds field prep on standard cylindrical doors
Centrios Cover Plate: covers legacy prep from a previous lockset
Centrios 2 3/8" Square Latch: replacement latch for shorter backset installs

Specifications

SKU	CEN-CEB100-TB-626-PARA-CE-234S-497-KR
Brand	Centrios
Form factor	Cylindrical lockset, ANSI/BHMA Grade 1
Power input	4x AA batteries with 9V emergency backup jumper
Communication	Bluetooth to the Centrios app (phone-as-bridge, lock stays offline)
Credentials	Bluetooth mobile via Centrios app, Centrios Cards (HID SEOS), Centrios Fobs. Card and fob credentials require Pro Plan.
Lever style	Taylor Bay (TB)
Finish	Satin Chrome (626)
Cylinder	ASSA ABLOY ACCENTRA PARA fixed core, two cut keys keyed random
Keyway	KR
Door prep	Standard cylindrical
Backset	2 3/4"
Latch	CE234S, 2 3/4" square corner
Strike	ANSI 497
Fire rating	UL10C 3-hour
Weather rating	IP67 on both sides of the door
Operating temp	-35°F to 140°F
Compliance	ANSI/BHMA Grade 1, UL10C
Management	Centrios app (mobile) + Centrios web portal
Egress	Full-time passage egress, deadlocking latch
Warranty	2-year comprehensive: finish, functionality, electrical, mechanical

Documents and resources

Spec SheetPDF

FAQs

Does this lock require a hub or a network drop at the door?

No. The lock is offline. It talks Bluetooth to the Centrios app on the user's phone at the opening, and the phone bridges audit history, schedules, and credential provisioning back to the Centrios web portal. No Cat6 pull, no PoE, no hub at the door.

What credentials does the CEB100 support?

Bluetooth mobile credentials through the Centrios app, plus Centrios Cards (HID SEOS) and Centrios Fobs. Card and fob credentials require the Centrios Pro Plan.

Can I unlock this lock remotely from anywhere?

No. Because the lock itself is offline, a user has to be physically at the door with the Centrios app to unlock it. This is a security posture, not a limitation: no cloud path to the lock means no cloud attack surface at the opening.

Is the lock rated for exterior installs?

Yes. IP67 on both sides of the door and a -35°F to 140°F operating range cover exterior, wash-down, and cold-storage openings.

Is the CEB100 fire-rated?

Yes. UL10C 3-hour fire rating, ANSI/BHMA Grade 1.

What door prep does this fit?

Standard cylindrical door prep with a 2 3/4" backset. The 2 3/4" square corner latch (CE234S) and ANSI 497 strike ship in the box.

What's the keyway and can it join an existing master key system?

KR. The supplied ASSA ABLOY ACCENTRA PARA fixed core cylinder drops into an existing KR master key schedule without a rekey.

What's the warranty?

Two-year comprehensive warranty from ASSA ABLOY covering finish, functionality, electrical, and mechanical components.
