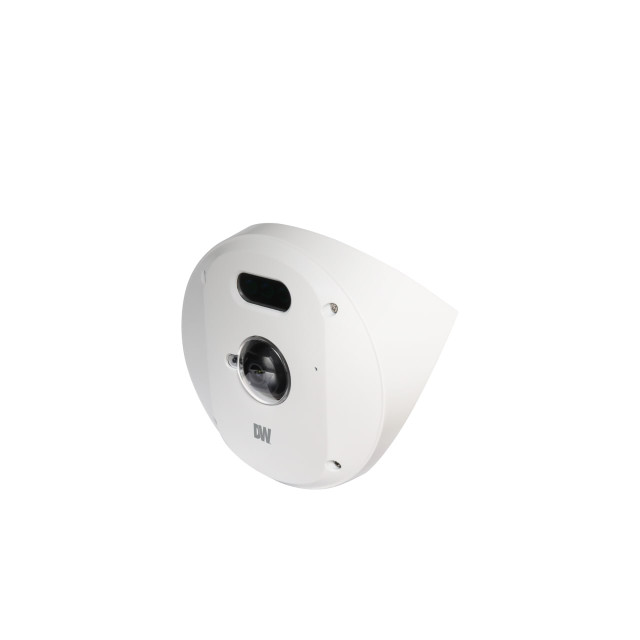

Corner installs are where standard turrets and bullets fall short. Ceiling-wall corners in jail cells, mantraps, elevator lobbies, and back-of-house corridors need a camera that mounts flush, covers the whole room, and resists tampering from anyone within arm's reach. The DW MEGApix AI DWC-XSCA05Bi is built for exactly that scenario.
The 2.26mm ultra-wide lens delivers a 124° horizontal field of view from a single corner mount, removing the dead zones a wall-mounted turret leaves behind. Edge AI runs object detection, classification, and tracking on the camera itself, so analytics events trigger without putting load on the recorder. Star-Light Plus pulls usable color in 0.0008 lux scenes, and 100ft Smart IR takes over when the room goes dark. The IK10-rated impact housing and tamper-resistant screw set survive the kind of physical abuse a corner camera in a custodial environment actually sees.
- Built for corner installs - flush-mount housing covers ceiling-wall intersections that turrets and bullets cannot reach
- Edge AI on the camera - object detection, classification, and tracking happen on-device, freeing recorder resources
- Star-Light Plus color in near-darkness - usable color down to 0.0008 lux before IR engages
- IK10 vandal rating - handles direct impacts in jails, schools, and high-traffic public corridors
- NDAA and TAA compliant - clears federal, GSA, and enterprise procurement requirements out of the box
- Two-way audio and alarm I/O - built-in mic, audio line out, and one alarm input/output for integrated response
Specifications
| SKU | DW-DWC-XSCA05Bi |
|---|---|
| Brand | DW |
| Power Source | PoE (IEEE 802.3af Class 3) or 12V DC |
| Power Consumption | Max 8W (PoE) / Max 7.2W (12V DC) |
| Compatibility | ONVIF Profile S/G/T, DW Spectrum IPVMS |
| Certifications | NDAA-compliant, TAA-compliant, UL, CE, FCC, RoHS |
| Warranty | 5-year limited |
| Image Sensor | 1/2.8" CMOS, Star-Light Plus |
| Resolution | 5MP (2592 x 1944) at 30fps |
| Lens | 2.26mm fixed, F2.2 |
| Field of View | 124° horizontal, 94° vertical |
| Minimum Illumination | 0.0008 lux color, 0 lux with IR |
| IR Distance | 100ft Smart IR |
| WDR | True WDR 120dB |
| Day/Night | True Day/Night with mechanical IR cut filter |
| Noise Reduction | Smart DNR (3D-DNR) |
| Edge AI Features | Object detection, classification, tracking |
| Video Compression | H.265, H.264, MJPEG (triple codec, simultaneous) |
| Audio | Built-in microphone, line-out, two-way audio support |
| Alarm I/O | 1 input, 1 output |
| Local Storage | microSD slot, up to 512GB |
| Network | 10/100 Base-T RJ-45 |
| IP Rating | IP67 |
| Impact Rating | IK10 |
| Mounting | Corner mount (ceiling-wall intersection) |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Operating Humidity | Less than 90% RH |
| Dimensions | 7.55" x 3.9" (192mm x 99mm) |
| Weight | 3.08 lbs (1.4 kg) |
| Housing Material | Aluminum |
