Description
Red 8 Features
Each unit is equipped with a fully supervised power circuit that monitors the battery and overall controller health and even charges the battery. Users receive important system notifications via text and email.
Self-Discoverable - Red 8 is automatically discovered as a connected device by the Cloud Node. When an Ethernet device is connected to the Cloud Node, it is not necessary to enter the IP address because the device is self-discovered.
Scalability - Whether you need four doors or a thousand, the Red 8 controller allows you to scale the system to just the right size. In addition, with the flexibility of our WiMAC (Wireless Mesh Access Control), you can add more doors anytime or anywhere.
Plug ‘n’ Play Connectivity - All io devices were designed to be plug ‘n’ play. That means they’re easy to install right out of the box. It’s simple to add in any io device no matter how large the job is, and you can quickly scale a system to any size. A Cloud Node can connect up to a thousand doors on a single platform.
Eight Reader Input Ports - Eight input ports are ideal for applications where both read-in and read-out are a security requirement. Know exactly when users enter and exit a premise. The additional reader inputs can also be assigned to trigger automated events.
Battery Charger and Statistics - In addition to charging the battery when a backup battery is attached, battery stats are also provided.
Fully Supervised - Never be caught off guard again. Pdk.io intelligently monitors the network and wireless connectivity of each controller in your system and alerts you if any issues arise, including: overcurrent events, primary power connectivity, battery connectivity, and battery charge status.
Supports OSDP Protocol - Open Supervised Device Protocol (OSDP) is an access control communications standard developed by the Security Industry Association to improve interoperability among access control and security products. OSDP brings heightened security and improved functionality. It is more secure than the standard Wiegand protocol and supports AES-128 encryption. OSDP handles two-way communication between a reader and a controller. A controller or an interface unit can connect with a reader and identify a device if it is malfunctioning, manage LED indication, or verify an entered PIN.
Specifications
Connections
- Removable screw-down terminals
- Polarized DC-only Power Supply Input
- Industrial-grade 2Amp Form-C Relays (8 Doors)
- Reader Input (8)
- 8 Input A
- 8 Input B
- Additional power and ground connections for devices other than door connectors
Communication Options
- Ethernet
- WiMAC wireless mesh (2.4 GHz / 802.15.4)
- Encryption: AES 128-bit
- Wireless Range: 1-mile line of sight / 450 ft. indoor average
Environmental
- Temperature: -20ºC ~ +60ºC / -4ºF ~ +140ºF
- Humidity: 0%–95% relative humidity noncondensing
Enclosure
- Dimensions (W x H x D) 14.25” x 18.25” x 4.0625”
- Metal lockable security can (indoor use only)
Weight
- 14lbs. (6.35kg)
Compliance
- Conforms to UL 294

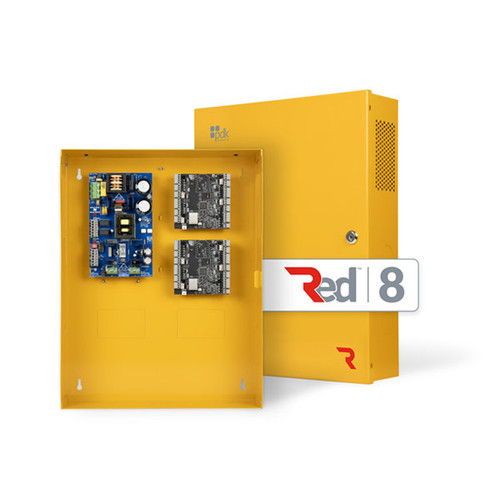

The Red 8 access control system provides unparalleled security and convenience, offering access to up to eight doors with a built-in 10 Amp power supply. This comprehensive solution, complete with two R4 readers, ensures a scalable and robust installation for any facility.
Designed with the installer in mind, the Red 8 combines advanced technology with user-friendly features. Its fully supervised power circuits provide real-time monitoring and battery health checks, sending crucial notifications via text and email, ensuring seamless operation and peace of mind.
- Self-Discoverable: Effortlessly connects to the Cloud Node without manual IP configuration.
- Scalability: Expand from four to a thousand doors as your security needs evolve.
- Plug ‘n’ Play Connectivity: Quick and easy installation for any size system with simple integration.
- Eight Reader Input Ports: Supports read-in and read-out for enhanced security monitoring.
- Battery Charger and Maintenance Stats: Consistently charges backup batteries while providing health updates.
- Fully Supervised Monitoring: Proactive alerts for power connectivity, battery status, and network issues.
- Supports OSDP Protocol: Ensures advanced security with AES-128 encryption and two-way communication.
- Industrial-Grade Components: Features high-quality materials and compliance with UL 294 standards.
Secure your facility with the Red 8 access control system, where reliability meets cutting-edge technology for peace of mind and unbeatable performance.
