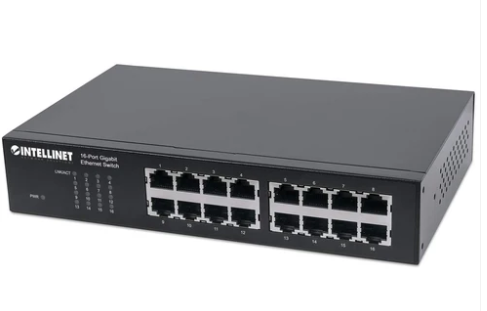

16-Port Gigabit Ethernet Switch. Supplied as Intellinet article 561068. The manufacturer datasheet is linked in the Documents tab.
Key details
- Network Cards and Adapters
- Create an Account
- 16-Port Gigabit Ethernet Switch
- 16-Port RJ45 10/100/1000 Mbps, IEEE 802.3az Energy Efficient Ethernet, Desktop, 10" and 19" Rackmount
- 10/100/1000 auto-sensing ports automatically detect optimal network speeds
- All RJ45 ports with Auto-MDIX (auto uplink) support
- For use on desktop or mounted in standard 19" rack
- United States
About Intellinet
Intellinet supplies network switches, PoE injectors and rack infrastructure for the professional channel, with published datasheets and declarations of conformity per article number.
Brand:
INTELLINET
Manufacturer part number:
561068
Standards:
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Backplane speed:
32 Gbps
MAC address table:
8192 entries
Dimensions:
215 (W) x 133 (L) x 44 (H) [mm] / 8.46 (W) x 5.24 (L) x 1.73 (H) [in.]
Weight:
0.94 kg (2 lbs.)
Power consumption:
9.1 watts (maximum)
Operating temperature:
0 – 40°C (32 – 104°F)
Ports:
16 port
What is the Intellinet article number?
Article 561068. Intellinet catalogue everything by article number, so quote this when cross-referencing a datasheet or a bill of materials.
Is a datasheet available?
Yes. The Intellinet datasheet for article 561068 is linked in the Documents tab.
Datasheet
