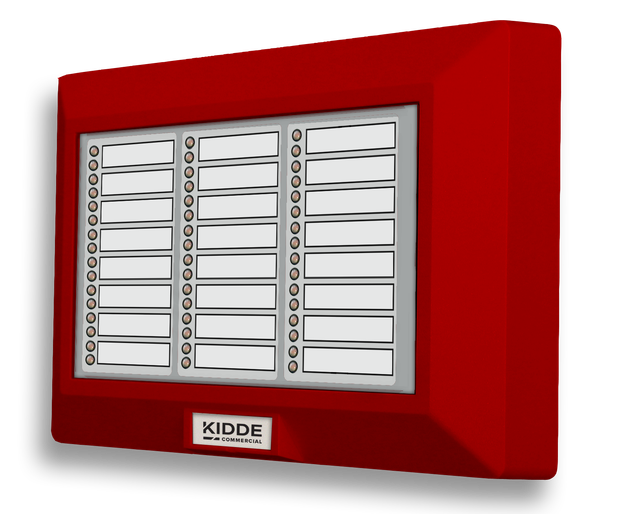

R-Series 24-Zone LED Remote Annunciator Expander for EVOLVE, VS & FX Fire Alarm Systems, Red
Kidde Commercial

R-Series 24-Zone LED Remote Annunciator Expander for EVOLVE, VS & FX Fire Alarm Systems, Red

SKU KD-K-RLED24R

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The K-RLED24R adds 24 zones of LED annunciation to any Kidde Commercial R-Series remote annunciator without running new NAC circuits. It connects to the FACP over RS-485, supports cable runs up to 4,000 ft on standard twisted pair, and gives fire installers zone-level alarm and trouble visibility right where building management needs it.

Built for the commercial fire installer

Compatible with the full Kidde Commercial intelligent panel lineup - EVOLVE, VS1, VS4, FX64, FX1000, and VM systems. RS-485 communication supports Class B, Redundant Class B, and Class A wiring configurations at baud rates from 9,600 to 115,200. UL, ULC, and FM listed. Mounts on a standard 4-inch square electrical box.

Key features

  • 24 zone pairs: individual alarm and trouble LEDs for each zone with replaceable zone card inserts for custom labeling
  • RS-485 communication: up to 4,000 ft on 18-14 AWG twisted pair, keeping annunciator placement flexible across large facilities
  • Multi-panel compatibility: works with EVOLVE, VS1, VS4, FX64, FX1000, and VM fire alarm control panels
  • Low power draw: 12 mA standby, 35 mA alarm - runs on 24 VDC from the panel with minimal impact on power budgets
  • Stackable: up to two expanders per R-Series annunciator for large-zone-count buildings
  • UL, ULC, and FM listed for code-compliant commercial fire installations

System requirements

Requires a Kidde Commercial R-Series remote annunciator (sold separately) and a compatible FACP. Connects via RS-485 on 18-14 AWG twisted pair. Mounts on a standard 4-inch square electrical box or listed enclosure. Maximum two expanders per annunciator.

Specifications

SKUKD-K-RLED24R
BrandKidde Commercial
Form factor24-zone LED expander module for R-Series remote annunciator
CommunicationRS-485 (Class B/DCLB, Redundant Class B/DCLB, or Class A/DCLA)
Data baud rate9,600 to 115,200 baud
Data wiring18-14 AWG twisted pair, max 4,000 ft (1,219 m)
Power input24 VDC continuous (from FACP)
Standby current12 mA
Alarm current35 mA (all LEDs on)
Zone indicators24 alarm LEDs, 24 trouble LEDs
Common controlsNone (zone display only)
Max expanders per annunciator2
CompatibilityEVOLVE, VS1, VS4, FX64, FX1000, VM
Operating temp32 to 120°F (0 to 49°C)
Operating humidity0 to 93% RH noncondensing at 90°F (32°C)
Mounting4-inch square electrical box or listed enclosure
Dimensions5-5/8 x 8-1/2 x 1-1/2 in (14.3 x 21.4 x 3.8 cm)
ColorRed
ComplianceUL, ULC, FM listed

Documents and resources

FAQs

What Kidde panels is the K-RLED24R compatible with?
Works with EVOLVE, VS1, VS4, FX64, FX1000, and VM fire alarm control panels from Kidde Commercial.
How many zone expanders can one annunciator support?
Up to two K-RLED24 expanders per R-Series remote annunciator.
How far can the annunciator be from the FACP?
Up to 4,000 ft (1,219 m) on 18-14 AWG twisted pair via RS-485 communication.
What wiring does the RS-485 connection require?
18-14 AWG twisted pair. Supports Class B/DCLB, Redundant Class B/DCLB, and Class A/DCLA configurations at 9,600 to 115,200 baud.
Does the K-RLED24R include common controls?
No. It displays zone alarm and trouble status only. It does not include Reset, Ack/Silence, Signal Silence, Drill, or Lamp Test. For common controls, see R-Series models with a "C" suffix.
What mounting hardware is required?
Mounts on a standard 4-inch square electrical box or UL/ULC listed enclosure. Ships with expander cable and zone card insert.
