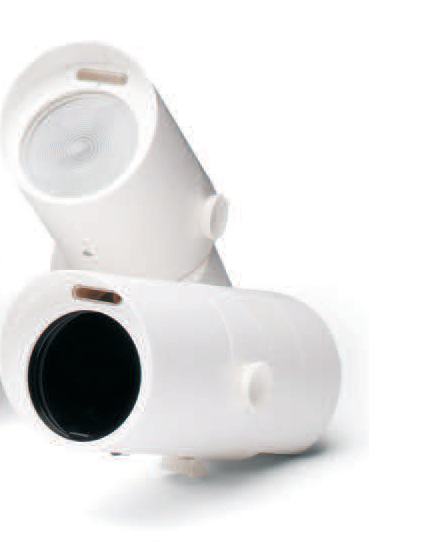

The KC3000-016 adds a second transmitter/receiver pair to a KC3000-103 end-to-end beam detector installation, letting one ground-level controller cover two separate beam paths instead of one. Each pair spans 16.5 to 393 ft (5 to 120m), so a single controller with two detector packs can protect a much larger open area without doubling your control hardware.
Built for the commercial installer
- One additional beam path per pack: up to one KC3000-016 per KC3000-103 controller
- Integrated laser alignment on both transmitter and receiver heads for one-person setup
- Separate fire and fault relays per pair, wired back to the shared controller
Brand:
Kidde Commercial
Form factor:
Additional transmitter/receiver head pair for KC3000-103 controller
Detection range:
16.5 to 393 ft (5 to 120 m)
Compatibility:
Kidde KC3000-103 end-to-end beam smoke detector controller (one additional pack per controller)
Alignment method:
Integrated laser alignment on transmitter and receiver
Spec Sheet
