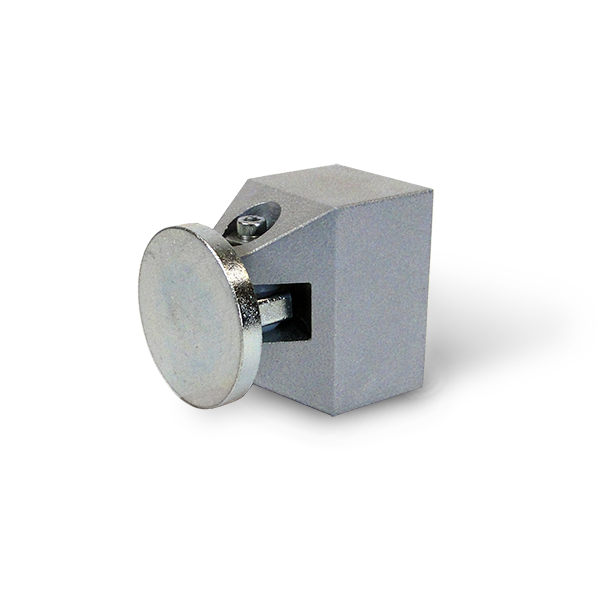

Electromagnetic Door Holder Replacement Armature, Long Catch Plate for 1504 Flush Wall Mount
Kidde Commercial

Electromagnetic Door Holder Replacement Armature, Long Catch Plate for 1504 Flush Wall Mount

SKU KD-CS2598-5

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The CS2598-5 is the replacement armature (long catch plate) for Kidde electromagnetic fire door holders. It mounts on the door and makes contact with the wall-mounted electromagnet, using a shock-absorbing nylon swivel ball that self-adjusts to any door angle. Specifically designed for the 1504-AQN5 flush wall-mounted door holder configuration.

Built for fast field replacement

When a catch plate gets damaged or worn, the CS2598-5 drops right onto the existing door mounting without modifying the door prep or the wall-side electromagnet. The long-style armature is sized specifically for the 1504 flush wall-mounted door holder. If you're working with 1501, 1502, 1505, 1508, or 1509 series door holders, order the CS2595-5 (short armature) instead.

Key features

  • 360-degree swivel contact plate: shock-absorbing nylon ball adjusts to any door angle automatically
  • Direct replacement for 1504-AQN5: fits existing door prep on flush wall-mounted door holders
  • No special tools required: same mounting pattern as the factory armature
  • UL/ULC listed as part of the Kidde Electromagnetic Door Holder system

Compatibility

This is the long armature, designed exclusively for the 1504-AQN5 (flush wall-mounted, long catch plate) door holder. For all other Kidde electromagnetic door holder models (1501, 1502, 1505, 1508, 1509), use the CS2595-5 short replacement armature instead.

Specifications

SKUKD-CS2598-5
BrandKidde Commercial
Form factorReplacement armature, long catch plate
CompatibilityKidde 1504-AQN5 flush wall-mounted electromagnetic door holder
MountingDoor-side, mates with wall-mounted electromagnet
Swivel360-degree shock-absorbing nylon ball
Shipping weight0.25 lb (0.11 kg)
ComplianceUL, ULC (R6291)

Documents and resources

FAQs

Which Kidde door holder does the CS2598-5 fit?
The CS2598-5 is the long replacement armature designed for the 1504-AQN5 flush wall-mounted electromagnetic door holder. For all other models (1501, 1502, 1505, 1508, 1509), use the CS2595-5 short armature instead.
What's the difference between the CS2598-5 and the CS2595-5?
The CS2598-5 is the long armature for the 1504 flush wall-mounted door holder. The CS2595-5 is the short armature for all other Kidde electromagnetic door holder models (1501, 1502, 1505, 1508, 1509).
Does the catch plate self-adjust to different door angles?
Yes. The armature uses a shock-absorbing nylon swivel ball that allows the contact plate to self-adjust to any door angle, ensuring full contact with the electromagnet regardless of door alignment.
Is the CS2598-5 a drop-in replacement?
Yes. It uses the same mounting pattern as the factory-installed armature, so no modifications to the door or the wall-side electromagnet are required.
