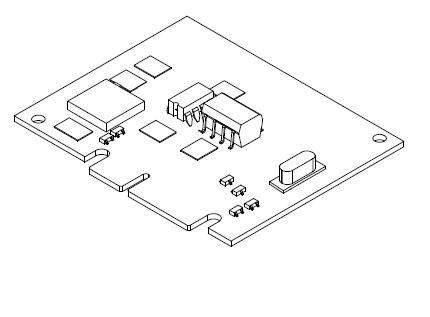

VM Series Ethernet Adapter Card with Digital Alarm Receiver Support
SKU KD-VM-ETH2
- Fast shipping from four branches
- 30-day returns on unopened products
The VM-ETH2 gives a VM Series panel an Ethernet connection for remote programming and diagnostics, plus the added ability to report to compatible digital alarm receivers over that same connection - one card instead of a separate dialer path. It's a straight upgrade over the base VM-ETH1: same connectivity, more reporting capability.
Built for the commercial installer
- 10/100 Ethernet for remote programming and diagnostics
- Digital alarm receiver reporting - check the VM UL Compatibility List for supported receivers before specifying
- Standard Ethernet cable (not supplied), up to 200 ft runs
Specifications
| SKU | KD-VM-ETH2 |
|---|---|
| Brand | Kidde Commercial |
| Communication | Ethernet 10/100 Base-T |
| Power input | 24 VDC |
| Current draw | 42 mA standby, 54 mA active |
| Wire run | Up to 200 ft, standard Ethernet cable (not supplied) |
| Compatibility | Kidde VM Series control panels; adds digital alarm receiver reporting beyond VM-ETH1 - verify receiver on the VM UL Compatibility List |
Documents and resources
