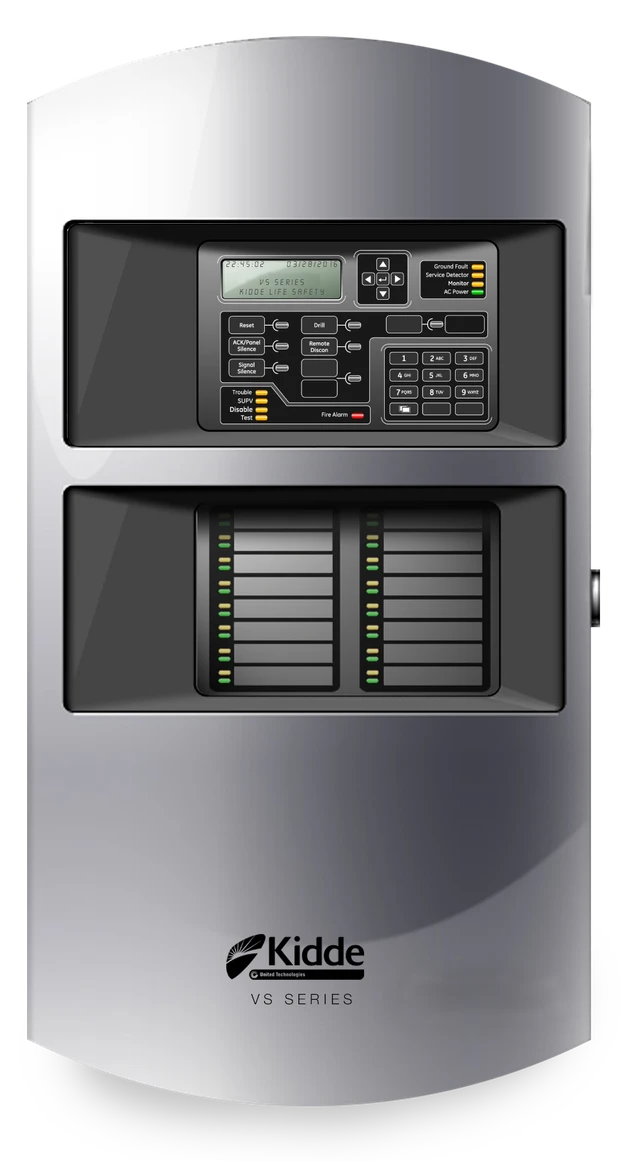

The Kidde VS4-G is a 4-loop intelligent fire alarm control panel from the VS Series, shipped with one 250-point SLC loop installed and ready for commissioning. It supports up to 1,000 addressable points at full build-out (4 loops x 250 points), making it the right panel for mid-to-large commercial fire alarm systems that need room to grow.
Built for the commercial fire installer
The VS Series runs Kidde's intelligent detection protocol across all connected SLC devices - detectors, modules, pull stations, and notification appliances. The front panel provides a backlit LCD with real-time event display, full numeric keypad, and dedicated controls for Reset, ACK/Panel Silence, Signal Silence, Drill, and Remote Disconnect. Status LEDs cover Ground Fault, Service Detector, Monitor, AC Power, Trouble, Supervisory, Disable, Test, and Fire Alarm conditions at a glance.
Key features
- 4-loop SLC capacity: ships with one 250-point loop installed, expandable to 1,000 addressable points
- Backlit LCD display with real-time event annunciation and full system navigation
- Dedicated operator controls: Reset, ACK/Panel Silence, Signal Silence, Drill, Remote Disconnect
- Full LED status annunciation: Ground Fault, AC Power, Trouble, Supervisory, Disable, Test, Fire Alarm
- Zone annunciator panel with per-zone LED indicators for at-a-glance system status
- 110V AC operation in a gray steel enclosure
System compatibility
Compatible with Kidde intelligent SLC devices including detectors, modules, pull stations, and notification appliances. Additional SLC loop cards available separately to expand from 1 to 4 loops. Supports Kidde R-Series Remote Annunciators for lobby or guard-station display and the VS Communications Bridge for network connectivity.
How many addressable points does the VS4-G support?
What Kidde devices work with the VS Series panel?
Can the VS4-G connect to remote annunciators?
What does the -G suffix mean in the model number?
Does this panel ship ready to commission or does it need loop cards?
Spec Sheet
