Evolve Series Intelligent FACP Replacement Main Board with Dual Ethernet & 4 NAC AUX Outputs
Kidde Commercial

Evolve Series Intelligent FACP Replacement Main Board with Dual Ethernet & 4 NAC AUX Outputs

SKU KD-EVOLVE-MB-RE

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

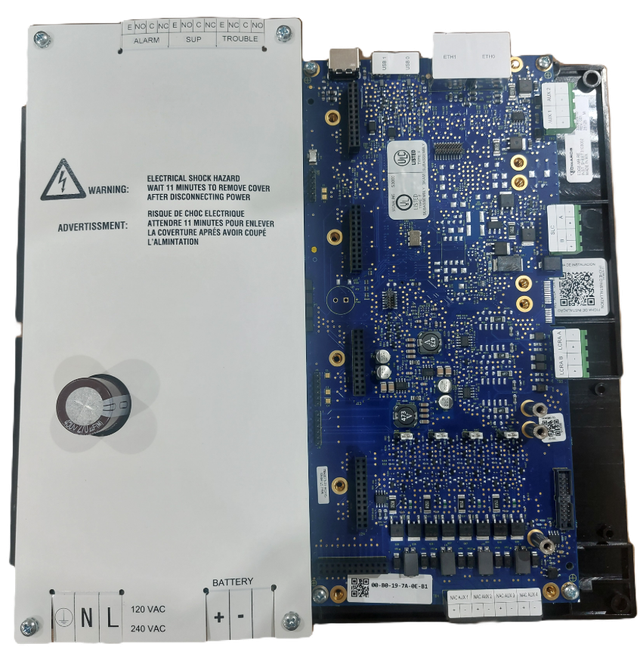

The Kidde Evolve Series Replacement Main Board (EVOLVE-MB-RE) is a direct drop-in replacement for the main electronics assembly in Kidde Evolve intelligent fire alarm control panels. When a main board fails or needs upgrading, this swap gets the panel back online without replacing the entire enclosure, backplane, or field wiring.

Built for the fire alarm installer

Dual-voltage input (120/240 VAC) covers both standard commercial and industrial power configurations. The board ships with dual Ethernet ports (ETH0/ETH1) for network connectivity and redundancy, dual USB ports for programming and diagnostics, and four dedicated NAC AUX outputs for notification appliance circuits. Form C relay outputs for Alarm, Supervisory, and Trouble conditions provide clean signal handoff to building automation or central station monitoring. UL and ULC listed.

Key features

  • Direct replacement board: swap the main electronics without disturbing field wiring, enclosure, or backplane
  • Dual Ethernet ports (ETH0/ETH1): network connectivity with built-in redundancy path
  • 4 NAC AUX outputs: dedicated notification appliance circuit auxiliary connections on-board
  • Dual-voltage operation: 120 VAC or 240 VAC input for commercial and industrial applications
  • Form C relay outputs: Alarm, Supervisory, and Trouble relays for clean signal integration
  • Dual USB ports: on-board USB connections for panel programming and diagnostics
  • UL and ULC listed: meets fire alarm system certification requirements in the US and Canada

Compatibility

Designed for Kidde Evolve Series intelligent fire alarm control panels. Verify panel model compatibility before ordering. Contact SS&Si for cross-reference assistance if replacing an older main board revision.

Specifications

SKUKD-EVOLVE-MB-RE
BrandKidde Commercial
Form factorReplacement main board assembly (PCB with integrated power supply)
Power input120 VAC or 240 VAC
BatteryBattery terminals on-board (+ / -)
CommunicationDual Ethernet (ETH0, ETH1), SLC loop connections
NAC output4 NAC AUX outputs (NAC AUX 1-4)
Relay outputsForm C: Alarm (E/NO/C/NC), Supervisory (E/NO/C/NC), Trouble (E/NC/C/NO)
USB ports2 (USB 0, USB I)
ComplianceUL listed, ULC listed
CompatibilityKidde Evolve Series Intelligent Fire Alarm Control Panels

Documents and resources

FAQs

What Kidde panels does the EVOLVE-MB-RE fit?
Replacement main board for Kidde Evolve Series intelligent FACPs. Verify your panel model with SS&Si before ordering to confirm enclosure and backplane compatibility.
Do I need to re-wire field devices when swapping the main board?
No. The board drops into the existing enclosure and connects to the backplane. Field wiring to SLC loops, NAC circuits, and relay outputs stays undisturbed.
Does this board support both 120V and 240V power?
Yes. The EVOLVE-MB-RE accepts 120 VAC or 240 VAC input, covering standard commercial and industrial power configurations.
What are the dual Ethernet ports for?
ETH0 and ETH1 provide network connectivity for remote panel programming, monitoring, and integration with a redundancy path.
How many NAC auxiliary outputs does the board have?
Four dedicated NAC AUX outputs (NAC AUX 1 through NAC AUX 4) built into the main board for notification appliance circuits.
