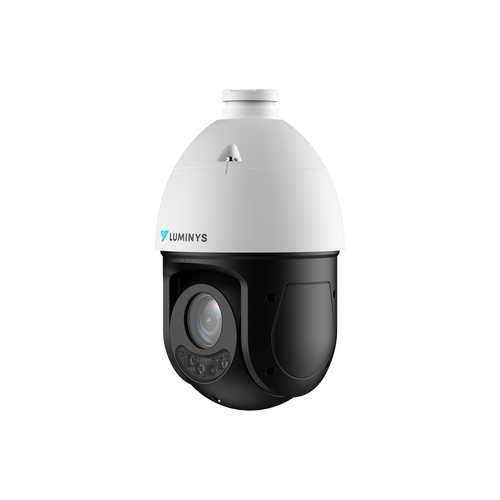

P5-S 4MP 25x LumiSearch PTZ with IR
Luminys

P5-S 4MP 25x LumiSearch PTZ with IR

SKU LM-P54-4SA25

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The Luminys P54-4SA25 covers large perimeters and parking facilities from a single camera position. A 25x optical zoom, four IR LEDs illuminating out to 328 feet, and LumiSearch AI-assisted target tracking run off a single PoE+ drop -- no separate power run required.

Built for the commercial installer

IP66-rated metal housing handles rooftops, covered parking, and outdoor perimeter work. The -40 deg F to 158 deg F operating range (LumiPolarPro / LumiDesertPro rated) covers extreme cold-climate and high-heat sites without special models. NDAA-compliant, FCC and IC certified, and ONVIF Profile S/G/T interoperable -- so it drops into most existing VMS deployments without custom integration. Wall mount bracket, rubber grommet, waterproof connector set, and all fasteners are included in the box.

Key features

  • 25x optical zoom, 300 presets, 8 programmable tours: covers large sites from one mounting point without continuous operator input
  • LumiSearch target tracking: locate a person across all LumiSearch-enabled cameras using a single reference image -- body-shape analysis only, no facial recognition, no pre-registration, no personal data stored
  • IR out to 328 ft (100 m): four IR LEDs with Smart IR, Zoom Priority, manual, and off modes; illumination adjusts automatically as the lens zooms
  • PoE+ (802.3at) or 12V DC powered: 15W max draw; one cable run covers data and power from any 802.3at switch port
  • VCA+ and LumiTracking analytics included: line crossing, intrusion, loitering, parking detection, and automatic moving-target follow built in -- no separate analytics license
  • NDAA-compliant: eligible for federal, state, and local government contract work

System requirements

Requires PoE+ (802.3at) switch port or 12V DC at 3A. LumiSearch functionality requires a LumiSearch-enabled Luminys NVR -- confirm NVR compatibility before specifying. Stores locally to Micro SD (up to 512 GB), NAS, or FTP/SFTP. Managed via LumiViewer desktop, LumiViewer Mobile, or any ONVIF Profile S/G/T compatible VMS.

Specifications

SKULM-P54-4SA25
BrandLuminys
Form factorSpeed dome PTZ, outdoor metal construction
Image sensor1/2.8-in. 4MP Progressive CMOS
Resolution4MP (2560x1440) max; multi-stream up to 4MP at 30 fps
Optical zoom25x (5.0mm to 125.0mm, F1.6 to F3.6)
IR range328.1 ft (100.9 m), 4 IR LEDs; Smart IR / Zoom Priority / Manual / Off
Min illumination0.005 Lux color; 0.0005 Lux B/W; 0 Lux with IR on
Pan range0° to 360° continuous; 0.1°/s to 200°/s (manual), up to 240°/s (preset)
Tilt range-15° to 90°, auto flip; 0.1°/s to 120°/s (manual), up to 200°/s (preset)
Presets / Tours300 presets; 8 tours (up to 32 presets each); 5 patterns
WDR120 dB
Power inputPoE+ (802.3at) or 12V DC (3A ±10%)
Power consumption15W max
Audio1-channel input / 1-channel output; G.711a, G.711Mu, PCM, AAC
Alarm I/O2 inputs / 1 output
CommunicationRJ-45 10/100 Base-T; ONVIF Profile S/G/T; HTTP, HTTPS, RTSP, RTMP, SMTP, FTP, SNMP and more
Onboard storageMicro SD up to 512 GB; also NAS, FTP/SFTP
Operating temp-40°F to 158°F (-40°C to 70°C)
Weather ratingIP66
DimensionsØ6.3 in. x 11.6 in. (Ø160.0mm x 295.0mm)
Net weight6.6 lb (3.0 kg)
AnalyticsVCA+, LumiSearch, LumiFocus, LumiTracking, Face Detection, iMD (Intelligent Motion Detection)
ComplianceNDAA, FCC, IC

Documents and resources

FAQs

What power does the P54-4SA25 require?
PoE+ (802.3at) or 12V DC at 3A. Max draw is 15W. A single PoE+ switch port covers both data and power with no separate power supply run.
Does LumiSearch use facial recognition?
No. LumiSearch analyzes body shape to locate a person across LumiSearch-enabled cameras using a reference image -- no facial recognition, no pre-registration, no personal data stored. Individuals get random session numbers for matching only.
What NVR is required for LumiSearch to work?
LumiSearch requires a LumiSearch-enabled Luminys NVR. Confirm NVR compatibility with Luminys before specifying -- not all Luminys NVRs support LumiSearch.
Is this camera NDAA-compliant?
Yes. The P54-4SA25 is NDAA Section 889 compliant and FCC and IC certified. Eligible for federal, state, and local government contract work.
What is the IR range and how is IR controlled?
Four IR LEDs illuminate out to 328.1 ft (100.9 m). IR mode can be set to Smart IR (auto-adjusts with zoom), Zoom Priority, Manual, or Off. With IR on, minimum illumination is 0 Lux.
What storage options does the P54-4SA25 support?
Onboard Micro SD card up to 512 GB, NAS, and FTP/SFTP. No NVR required for local recording -- though LumiSearch and some analytics features require a compatible Luminys NVR.
What mounting hardware is included with the camera?
Includes wall mount bracket (LUM-W02), rubber grommet, waterproof connector set, expansion bolts, hex screws, spring hooks, and Allen wrench. Pole, pendant, and corner mount require additional accessories sold separately.
What VMS or client software is compatible?
Works with any ONVIF Profile S/G/T compatible VMS. Also supported by LumiViewer desktop client and LumiViewer Mobile app natively.
