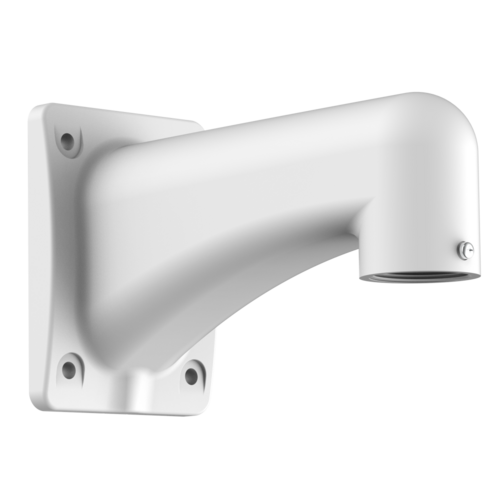

The Luminys LUM-W06 is a deep-reach aluminum wall mount bracket engineered for higher-mass cameras: Luminys P44 series PTZ, N9F fisheye, and N9P multi-sensor models. 255 mm (10 in.) reach gets the lens away from the wall so it can see straight down or wrap the corner without the wall itself dominating the frame.
Compatible Cameras
- Multi-sensor: N9P-20RAV
- Fisheye: N9F-8RA1, N9F-12RA1
- PTZ: select P44 series
Successor to the P44-W01 mount.
Brand:
Luminys
Form Factor:
Wall Mount Bracket (Deep Reach)
Material:
Aluminum
Color:
White
Dimensions:
115.0 mm x 160.0 mm x 255.0 mm (4.53 in. x 6.30 in. x 10.04 in.)
Weight:
0.7 kg (1.5 lb)
Load Bearing Capacity:
7.0 kg (15.4 lb)
Spec Sheet
