Description
Product Overview

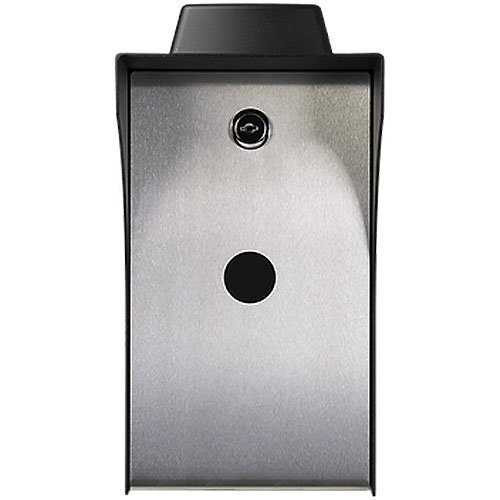

Pdk’s Red™Pedestal Controller is the solution for access control needs in outdoor applications such as parking lots, gated communities, and storage facilities. A robust weatherproof stainless-steel housing protects the controller and provides a blank faceplate for your favorite reader. It features built-in network connectivity and self-discovery to simplify IP configuration. It is also fully equipped with controller health monitoring and OSDP functionality.
Main Features
advanced security: ProdataKey Red™ products lead the industry in secure communication protocols. This includes OSDP, mobile, and encrypted credential communication.
power monitoring: Equipped with an onboard power supply and a fully-supervised power circuit that monitors input, output, battery voltage, and overall controller health.
plug n’play connectivity:All pdk Red devices were designed to be plug n' play. That means they're easy to install right out of the box. It's simple to add any device no matter how large the job is.
self discoverable:The Red Pedestal will be automatically discovered by the Cloud Node when an Ethernet cable is connected; it is not necessary to enter the IP address; the device is self-discoverable.
eliminate trenching:Protecting access to gates and exposed areas has never been easier or more cost-effective. Because of our WiMAC™ wireless capabilities, the Red Pedestal eliminates the substantial expenses associated with trenching.
system scalability: Whether you need two doors or a thousand, the pdk Red Pedestal gives you the flexibility to add more doors anytime, anywhere, on any device.
Specifications
Connections
- Removable Screw-down Terminals
- Built-in Power Supply
- Industrial-grade 2A Form-C Relays (2)
- Reader Input (2)
- Input A (2)
- Input B (2)
Communication Options
- Ethernet
- WiMAC™ Wireless (2.4 GHz/ 802.15.4)
- Encryption: AES 128bit
- Wireless Range: 1 Mile LoS, 450ft indoor average
Enclosure
- Dimensions (W x H x D) 5.5” x 9.5” x 5.5”
- Stainless-Steel enclosure
Power
- Included Power Supply: 14V DC, 2A transformer
- 12V-24V AC/DC Input
- 12VDC 1.2A *Battery-Backed Output
- Powers readers and other door hardware directly from the bus.
- *Battery not included
The PDK RPW Red Pedestal Outdoor 2 Door Controller is engineered for reliable access control in outdoor environments, perfect for parking lots, gated communities, and storage facilities. Its robust weatherproof stainless-steel enclosure ensures durability and security, featuring a blank faceplate ready for your preferred reader.
Designed for effortless installation, this controller includes built-in network connectivity and self-discovery capabilities, simplifying the IP configuration process. With advanced controller health monitoring and OSDP functionality, you can trust that your security system is operating at peak performance.
- Advanced Security: Utilizes ProdataKey's leading security protocols, including OSDP and encrypted credential communication.
- Power Monitoring: Features an onboard power supply with a fully-supervised circuit that continuously tracks input, output, battery voltage, and overall health.
- Plug n’ Play Connectivity: Easy to install right out of the box, allowing for quick integration of additional devices.
- Self Discoverable: Automatically detected by the Cloud Node through Ethernet connection, eliminating the need to manually enter IP addresses.
- Eliminate Trenching: The innovative WiMAC™ wireless capabilities reduce installation costs by removing the need for trenching.
- System Scalability: Capable of expanding from two doors to thousands, allowing flexibility in scaling your security system.
With the PDK RPW Red Pedestal, experience unparalleled efficiency and reliability in access control, allowing you to secure your spaces effortlessly.
