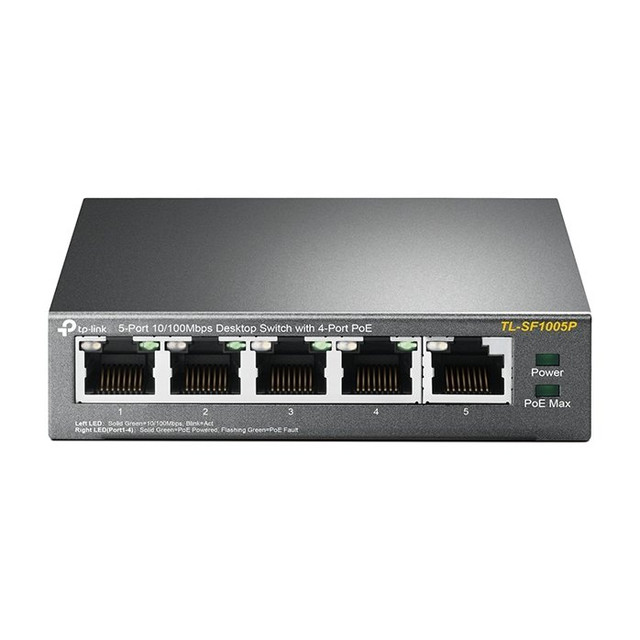

5-Port 10/100 Mbps Desktop PoE Switch with 4 PoE Ports, 58 W, Unmanaged
TP-Link

5-Port 10/100 Mbps Desktop PoE Switch with 4 PoE Ports, 58 W, Unmanaged

SKU TP-TL-SF1005P Model TL-SF1005P

  • Five 10/100 Mbps ports, four of them 802.3af PoE from a 58 W budget
  • Up to 15.4 W per PoE port for cameras, access points and IP phones
  • Unmanaged and fanless, plug and play with nothing to configure or manage
  • Metal desktop case with an external 48V DC power adapter included
New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

Product highlights

  • Ports5 x 10/100, 4 with PoE
  • PoE58 W, 802.3af
  • MountDesktop
  • Size3.9 x 3.9 x 1.0 in, fanless

The TL-SF1005P is an unmanaged 5-port Fast Ethernet desktop switch with four 802.3af PoE ports and a 58 W budget, a quick way to power a few cameras, access points or phones where gigabit speed is not needed. Plug it in and it works: no software, no configuration, and no fan.

Built for small camera and Wi-Fi jobs

Ports 1 to 4 deliver 802.3af PoE at up to 15.4 W per port from a 58 W total budget, and port 5 carries data only. Auto-negotiation and auto MDI/MDIX mean any cable works on any port, and MAC address auto-learning and 802.3x flow control keep traffic orderly. The metal case is fanless.

Key features

  • 4 PoE ports, 58 W total: 802.3af at up to 15.4 W per port for cameras, APs and phones
  • Five Fast Ethernet ports: 10/100 Mbps with auto-negotiation and auto MDI/MDIX
  • Plug and play: unmanaged, nothing to configure
  • Fanless metal case: silent on a desk or shelf

System requirements

None. Uses the included 48V DC / 1.25A external power adapter. Powered devices must be 802.3af compliant.

Specifications

SKUTP-TL-SF1005P
BrandTP-Link
Form factor5-port Fast Ethernet unmanaged desktop PoE switch
CommunicationEthernet / IP
Power inputExternal adapter, 48V DC / 1.25A (included)
Power consumption64.8 W max with 58 W of PoE load
ManagementUnmanaged
PoE802.3af PoE
Port speedFast Ethernet
Ethernet ports5 x 10/100 Mbps RJ45 (ports 1-4 PoE)
PoE budget58 W total, 802.3af (15.4 W) per port
Switching capacity1 Gbps
MAC address table2K
Communication notesStore-and-forward, MAC auto-learning and aging, 802.3x flow control (full duplex) and backpressure (half duplex), auto-negotiation, auto MDI/MDIX
CoolingFanless
MountingDesktop
Dimensions3.9 x 3.9 x 1.0 in (99.8 x 98 x 25 mm)
Operating temp32°F to 104°F (0°C to 40°C)
Operating humidity10 to 90% RH, non-condensing
ComplianceFCC, RoHS
Package contentsTL-SF1005P, power adapter, user guide

FAQs

How many ports on the TL-SF1005P have PoE?
Four. Ports 1 to 4 are 802.3af PoE sharing a 58 W budget; port 5 is data only.
Is the TL-SF1005P a gigabit switch?
No. All five ports are 10/100 Mbps Fast Ethernet, with a switching capacity of 1 Gbps.
Can it power 802.3at PoE+ devices?
The PoE ports are 802.3af at up to 15.4 W each, so choose powered devices that are 802.3af compliant and draw 15.4 W or less.
Does this switch need to be configured?
No. It is unmanaged and works out of the box. There is no web interface or VLAN support.
Is the TL-SF1005P loud?
No. It is fanless, so it is silent on a desk or shelf.
