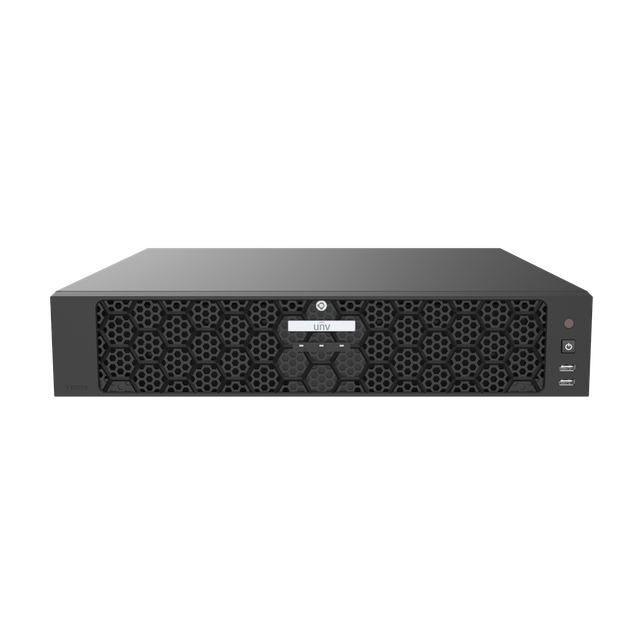

64-Channel 4K 2U Rack-Mount NVR
SKU UNV-NVR508-64E-R
- Fast shipping from four branches
- 30-day returns on unopened products
The NVR508-64E-R is a 64-channel network video recorder in a 2U rack-mount chassis. It records at up to 32MP resolution using H.265, H.264, and Ultra 265 compression, with 384Mbps incoming and outgoing bandwidth. Eight hot-swappable SATA bays accept drives up to 16TB each for 128TB maximum raw storage, with RAID 0, 1, 5, 6, and 10 configurations available.
The unit supports ONVIF Profile S, G, and T and connects to third-party IP cameras from Axis, Bosch, Hanwha, Pelco, Sony, and others via standard protocols. Dual HDMI and dual VGA outputs handle independent 4K display at 60Hz. Rear connectivity includes dual Gigabit Ethernet, eSATA, RS485, RS232, 16 alarm inputs, and 10 alarm outputs. Optional redundant power supply is available.
- 8 hot-swappable SATA bays with RAID support - swap drives without powering down
- ONVIF Profile S/G/T - connects to most third-party IP cameras without proprietary software
- Dual HDMI + dual VGA outputs - supports four independent monitors at up to 4K@60Hz
- Dual Gigabit Ethernet with N+1 hot spare failover
- ANR maintains recording continuity during network interruptions
- AC 100-240V input with optional redundant power supply
Specifications
| SKU | UNV-NVR508-64E-R |
|---|---|
| Brand | Uniview |
| Power Source | AC 100-240V, 50/60Hz |
| Power Consumption | ≤50W (without HDD) |
| Compatibility | ONVIF Profile S, G, T |
| Certifications | CE, FCC, UL, RoHS, WEEE |
| Max Channels | 64 |
| Max Recording Resolution | 32MP |
| Compression | Ultra 265, H.265, H.264 |
| Bandwidth | 384Mbps incoming / 384Mbps outgoing |
| Storage | 8 SATA bays, up to 16TB each (128TB max) |
| RAID Support | RAID 0, 1, 5, 6, 10 |
| Video Output | 2x HDMI (4K@60Hz), 2x VGA |
| Network Interface | 2x RJ45 Gigabit Ethernet |
| USB | 2x USB 2.0 (front), 2x USB 3.0 (rear) |
| Audio | 1 input, 2 outputs |
| Alarm | 16 inputs, 10 outputs |
| eSATA | 1 port |
| Form Factor | 2U Rack-Mount |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Operating Humidity | ≤90% RH (non-condensing) |
| Dimensions | 17.4" x 17.6" x 3.7" (442 x 448 x 93mm) |
| Weight | ≤13.23 lbs (6kg) without HDD |
