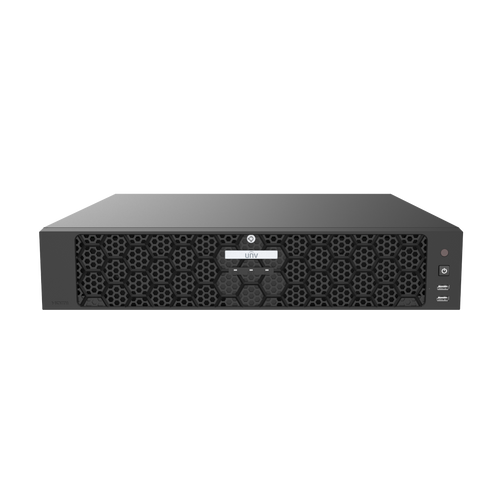

64-Channel 4K Network Video Recorder
SKU UNV-NVR504-64E-IQ
- Fast shipping from four branches
- 30-day returns on unopened products
The NVR504-64E-IQ is a 64-channel network video recorder supporting recording resolutions up to 32MP. It handles Ultra 265, H.265, and H.264 compression with 384Mbps incoming bandwidth, and decodes up to 8 channels of 4K at 30fps simultaneously for live monitoring.
Four SATA bays accept drives up to 16TB each (64TB total) with RAID 0, 1, and 5 support. Dual Gigabit Ethernet ports provide multi-access, load balancing, and failover. ONVIF Profile S/G/T compliant for use with third-party IP cameras. ANR technology maintains local camera-side recording during network interruptions.
- 64 IP channels, recording resolution up to 32MP
- 4 SATA bays - 64TB max storage with RAID 0/1/5
- Dual HDMI (4K@60Hz) + dual VGA outputs for independent display
- Dual Gigabit Ethernet with failover and load balancing
- 2U rack-mount form factor, standard 19" rack compatible
- ONVIF Profile S/G/T compatible
Specifications
| SKU | UNV-NVR504-64E-IQ |
|---|---|
| Brand | Uniview |
| Operating Voltage | AC 100-240V |
| Power Consumption | ≤50W (without HDD) |
| Compatibility | ONVIF Profile S, G, T |
| Certifications | CE, FCC, UL, RoHS, WEEE |
| IP Channels | 64 |
| Max Recording Resolution | 32MP |
| Video Compression | Ultra 265, H.265, H.264 |
| Incoming Bandwidth | 384Mbps (Smart Off) / 200Mbps (Smart On) |
| Decoding Capability | 8ch 4K@30fps / 16ch 4MP@30fps / 32ch 1080P@30fps |
| Storage | 4 SATA, up to 16TB each (64TB total) |
| RAID Support | RAID 0, 1, 5 |
| Video Output | 2x HDMI (4K@60Hz / 4K@30Hz) + 2x VGA |
| Network | 2x RJ45 10/100/1000M Ethernet |
| USB | 2x USB 2.0 (front), 2x USB 3.0 (rear) |
| eSATA | 1 port |
| Alarm I/O | 16 in / 10 out |
| Audio I/O | 1 RCA in / 2 RCA out |
| Serial Ports | RS485, RS232 |
| Form Factor | 2U Rack-Mount |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Operating Humidity | ≤90% RH (non-condensing) |
| Dimensions | 17.4" x 17.0" x 3.4" (442 x 432 x 86mm) |
| Weight | ≤12.1 lbs (5.5kg) |
