345 MHz Wireless Door/Window Contact, Drop-In 5800MINI Replacement with Bluefield Magnet LED for Honeywell VISTA, Lyric, 2GIG & PROA7
  • Frequency 345 MHz
Versa

345 MHz Wireless Door/Window Contact, Drop-In 5800MINI Replacement with Bluefield Magnet LED for Honeywell VISTA, Lyric, 2GIG & PROA7

SKU VER-MINI345

  • 345 MHz door and window contact for Honeywell VISTA, Lyric and 2GIG panels
  • Drop-in 5800MINI replacement with the same body size, mounting spot and Loop 1 zone
  • Bluefield LEDs confirm magnet alignment, 0.25" slim profile, supervised with cover tamper
  • 5+ years on one CR2032, slide-off cover for tool-free battery changes
Also available as
319.5 MHz 345 MHz 433 MHz
New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

Product highlights

  • Frequency345 MHz
  • Battery life5+ years, one CR2032
  • Size2.2 x 1 x 0.25"
  • Detection1" magnet gap, tamper reported
  • CompatibilityHoneywell, Resideo, 2GIG
  • Warranty2 years

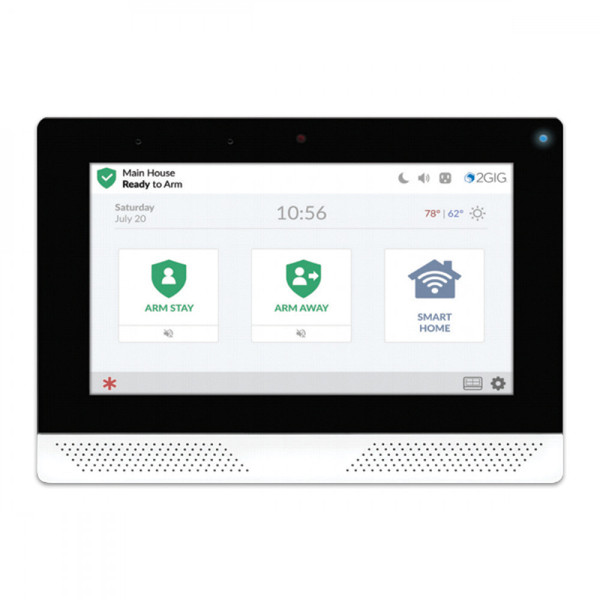

Pairs with

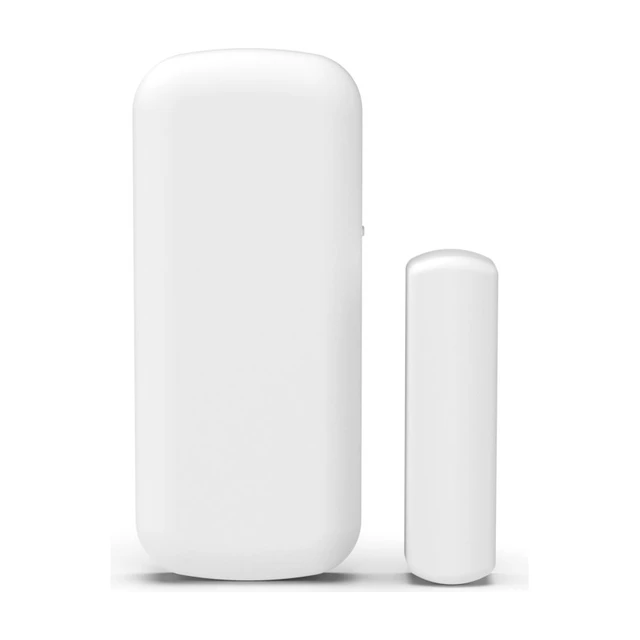

The Versa MINI-345 is a 345 MHz wireless door and window contact for Honeywell VISTA, Honeywell Lyric and 2GIG panels, and for Resideo PROA7 panels fitted with a PROTAKEOVER module. It is a drop-in replacement for the Resideo 5800MINI: the same 2.2 x 1 x 0.25 in. body, the same mounting spot and the same Loop 1 zone, so a swap is a quick job.

One part for both panel families

The MINI-345 sends on the Honeywell and Resideo 5800-series protocol at 345 MHz, and 2GIG GC2, GC3, EDGE and GC Touch panels read 5800-series sensors natively. That means one SKU enrolls on a VISTA and on a 2GIG, with no separate model to stock for each brand. The cover slides off instead of prying off, so battery and color changes take seconds and the sensor never leaves the frame.

Versa's patented Bluefield blue LED lights while the magnet is in range, so you confirm placement at the door before you commit the tape. The blue and green LEDs stay active for 15 minutes after the battery goes in or the cover comes off, and lifting the cover restarts the timer.

Key features

  • Drop-in 5800MINI replacement: same body size, same mounting spot, same zone type
  • Bluefield magnet alignment: blue LED confirms the magnet is in range, green flashes on transmit, red flags a low battery
  • Narrow magnet: the housing is 0.320 in. wide, so it fits narrow aluminum profiles and tight frame channels
  • 1 in. magnet gap on wood: 1/4 in. on metal surfaces
  • Reed switch plus cover tamper: fully supervised as a single zone, enrolled on Loop 1
  • 5+ year typical battery life: one Panasonic CR2032 lithium coin cell

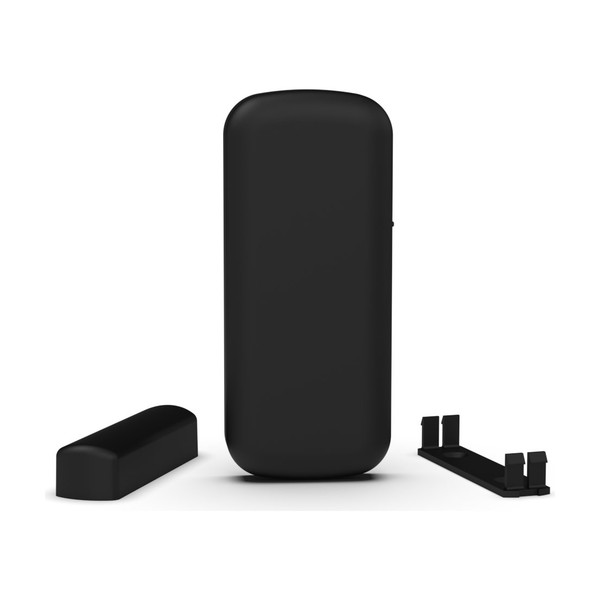

  • Tool-free slide-off cover: brown and black cover packs are sold separately
  • Supplied mounting tape: no drilling and no recessing

Replacing a 5800MINI or a 5816

The MINI-345 keeps the 5800MINI footprint, so it mounts where the old sensor was and programs as the same supervised zone. Resideo's newer 5800MINIV is 2.44 x 1.25 x 0.45 in., which Versa puts at about 2.5 times the volume. Replacing a 5816 as a plain door contact works too, but the MINI-345 reports on Loop 1, so check the loop when you re-enroll. If the 5816 has a wired contact loop on its screw terminals, that zone needs a different part.

System requirements

Any panel with a 345 MHz 5800-series receiver. A Honeywell VISTA needs a 5800-series receiver, and the Lyric has one built in. 2GIG GC2, GC3, EDGE and GC Touch need nothing extra. A Resideo PROA7 or PROA7PLUS needs a PROTAKEOVER module set to rotary position 0 for 5800 series.

Specifications

SKUVER-MINI345
BrandVersa
Form factorDoor/window contact with magnet, single zone
Frequency345 MHz
Power inputOne Panasonic CR2032 3V lithium coin cell (225 mAh)
Battery life5+ years
Loop numberLoop 1 (magnetic contact input)
Magnet gap1 in. (25.4 mm) max on wood, 1/4 in. (6.35 mm) max on metal
Magnet width0.320 in.
SupervisionSupervised
TamperCover tamper and reed switch
Transmitter dimensions2.2 x 1 x 0.25 in. (55.9 x 25.4 x 6.4 mm)
Operating temp32°F to 122°F (0°C to 50°C)
Operating humidity95% non-condensing (UL tested at 85%)
Installation environmentIndoor only
MountingDouble-faced tape (supplied)
Compatibility notesHoneywell VISTA (5800-series receiver), Honeywell Lyric, 2GIG GC2/GC3/EDGE/GC Touch, Resideo PROA7/PROA7PLUS with PROTAKEOVER (rotary 0). Drop-in for the 5800MINI.
ComplianceUL, FCC Part 15, ISED licence-exempt RSS
EnclosureSlide-off cover, white; brown and black cover packs sold separately

Warranty

2 years

Documents and resources

FAQs

Which panels does the Versa MINI-345 work with?
Honeywell VISTA with a 5800-series receiver, Honeywell Lyric (receiver built in), and 2GIG GC2, GC3, EDGE and GC Touch. Resideo PROA7 and PROA7PLUS need a PROTAKEOVER module set to rotary 0.
Does the MINI-345 work with 2GIG panels?
Yes. 2GIG GC2, GC3, EDGE and GC Touch read Honeywell 5800-series sensors natively at 345 MHz, which is the protocol the MINI-345 sends. The same part also enrolls on a VISTA.
Will the MINI-345 fit where a 5800MINI was?
Yes. It is a direct replacement: same 345 MHz frequency, same 2.2 x 1 x 0.25 in. body, same Loop 1 supervised zone. It mounts in the old sensor's spot and programs the same way.
Is the MINI-345 the same size as the 5800MINIV?
No. Resideo lists the 5800MINIV at 2.44 x 1.25 x 0.45 in. on a CR2450. The MINI-345 keeps the original 5800MINI footprint and CR2032, and its magnet is 0.320 in. wide.
Can the MINI-345 replace a 5816?
For a plain door or window, yes, but it reports on Loop 1, so check the loop when you re-enroll. If the 5816 uses its screw terminals for a wired contact loop, that zone needs a different part.
How do I enroll the MINI-345?
Fit the CR2032 plus side up, put the panel in auto-learn, then open and close the magnet. Name the zone, set the type and use Loop 1. Run the panel's Go/No Go test before sticking it down.
Why did the blue magnet LED stop lighting?
It is on a timer. The blue and green LEDs run for 15 minutes after battery install or cover removal, then sleep to save the battery. Lift the cover again for another 15 minutes.
How far can the magnet sit from the sensor?
Up to 1 in. (25.4 mm) on wood and 1/4 in. (6.35 mm) on metal. Metal frames cut the gap, so check that the blue LED lights with the door closed before committing the tape.
What battery does the MINI-345 use?
One Panasonic CR2032 3V lithium coin cell, rated 5+ years. The cover slides off, so you can change it with the sensor still on the frame. Red flashes every 5 seconds after a transmission on low battery.
Can the MINI-345 be used outdoors?
No. It is an indoor sensor rated for 32°F to 122°F and 95% non-condensing humidity. Keep it away from moisture, foil-backed wallpaper, large metal surfaces and heavy electrical wiring.
