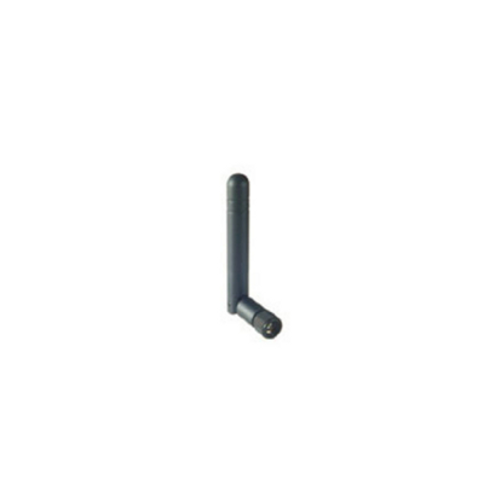

The second half of an LTE module's antenna pair. Most Alarm.com LTE modules are designed around two antennas, a primary that transmits and receives and this diversity antenna that receives only. Leaving the diversity port empty gives up reception the module was engineered to have.
Built for the alarm installer
It lands on antenna connector 2, marked Div, and it ships pre-installed on modules that include it. Order it as a replacement when the original goes missing from the box, gets damaged during rough-in, or turns up absent on a module someone else installed and the site is now reporting marginal signal.
At 8 inches it is short enough to route inside a panel can without fighting the lid. This is an indoor antenna, so keep it inside the conditioned envelope.
Key features
- Completes the two-antenna pairing that Alarm.com LTE modules are designed around
- Compact 8 inch form factor routes inside a panel can without fighting the cover
- Lands on connector 2 (Div), so there is no guesswork about which port it belongs on
- Straight replacement for a diversity antenna lost or damaged during install
System requirements
Requires an Alarm.com LTE module with a second (Div) antenna connector. This is a receive-only diversity antenna and does not replace the primary. Indoor use only.
