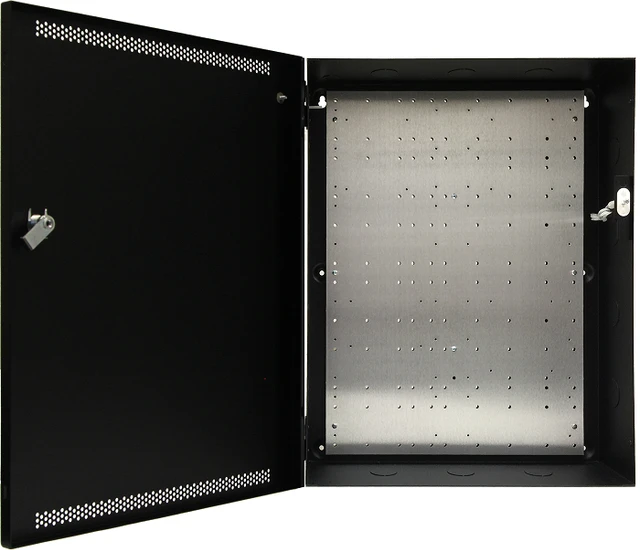

The mid-size can for an access control job that outgrew a single-door enclosure. At 20 by 16 inches there is room for a supply, a distribution board and a multi-door subassembly on one removable backplate, which means the whole assembly gets built and pre-wired on the bench instead of on a ladder.
Built for the commercial installer
The backplate carries pre-engineered Mercury mounting patterns and threaded standoffs covering both standard and PoE subassemblies, so one enclosure handles several door-count configurations rather than stocking a different can per layout. Power and distribution boards mount in known locations and access boards land on the standoffs, with no drilling and no improvised hardware.
The shell is 16-gauge steel in a textured black finish with knockouts on all four sides. The door lifts off on a quick disconnect grounding strap to get it out of the way during rough-in while staying bonded. Lockset and tamper switch are included, and 4.5 inches of depth leaves room for the battery set.
Key features
- Removable backplate so the assembly is built and pre-wired on the bench, not in the field
- Pre-engineered Mercury mounting patterns and threaded standoffs, no drilling to locate boards
- Supports standard and PoE subassemblies for higher door counts out of one enclosure
- Removable door with quick disconnect grounding strap, out of the way during rough-in and still bonded
- Lockset and tamper switch included, no separate hardware to source
- 4.5 inch depth with battery area and knockouts on all four sides
System requirements
Houses Alarm.com access control power and distribution boards in multiple configurations. The backplate uses the Mercury mounting pattern, so verify the subassembly you intend to mount matches before ordering.
