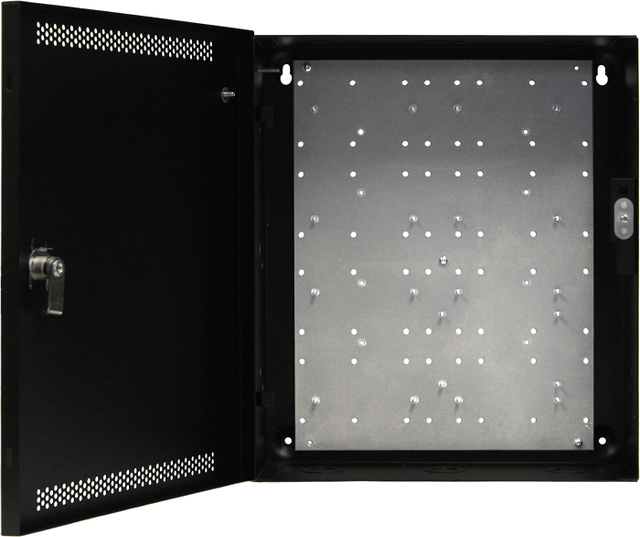

Bench the enclosure instead of building it on a ladder. The removable backplate comes out of the can, so power and distribution boards get mounted and pre-wired at the shop, and the install at the site is hanging a box and dropping a finished backplate into it.
Built for the commercial installer
The backplate carries pre-engineered Mercury mounting patterns and threaded standoffs, which covers both standard and PoE subassemblies without drilling or improvising standoffs. That is what lets one enclosure handle several door-count configurations rather than stocking a different can per layout.
The shell is 16-gauge steel in a textured black finish with knockouts on all four sides, so conduit and cable entry work from whichever direction the wire actually arrives. The door lifts off entirely on a quick disconnect grounding strap, which gets it out of the way during rough-in without leaving a ground floating. A lockset and tamper switch are included, and the 4.5 inch depth leaves room for the battery set behind the boards.
Key features
- Removable backplate so boards are mounted and pre-wired on the bench, not in the field
- Pre-engineered Mercury mounting patterns and threaded standoffs, no drilling to locate boards
- Supports standard and PoE subassemblies for higher door counts out of one enclosure
- Removable door with quick disconnect grounding strap, out of the way during rough-in and still bonded
- Lockset and tamper switch included, no separate hardware to source
- 4.5 inch depth with battery area and knockouts on all four sides
System requirements
Houses Alarm.com access control power and distribution boards in multiple configurations. The backplate uses the Mercury mounting pattern, so verify the subassembly you intend to mount matches before ordering.
