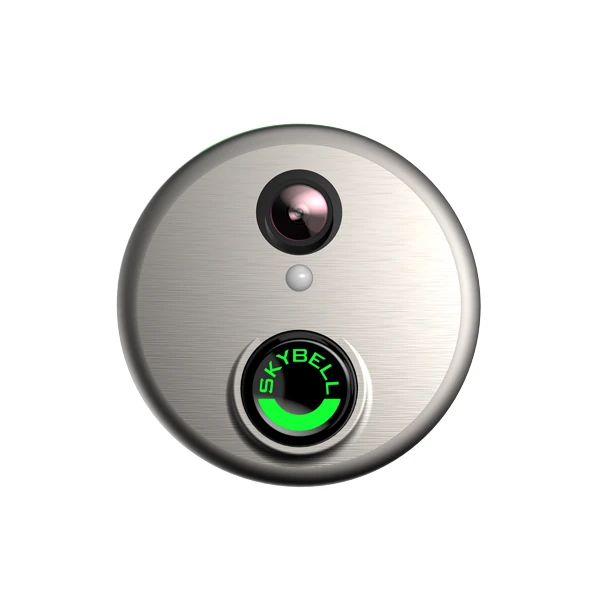

The original SkyBell HD in satin nickel, with a 180-degree view and full-colour night vision rather than the washed-out infrared most doorbells fall back to after dark. Rated -40F to 140F, which is a wider band than almost anything else in the category.
Built for the installer
It runs from a 16-24 VAC transformer at 10 VA, or a DC supply at exactly 12 VDC and 0.5 to 1 amp. Two important wiring notes: a transformer with no doorbell chime in the circuit needs a 10 watt 10 ohm resistor, and a digital chime needs the digital doorbell adapter (ADC-VACC-DB-A). Getting either wrong is the usual cause of a doorbell that buzzes, rings constantly, or will not ring at all.
A PIR motion sensor covers up to 8 feet, separate from the camera's own detection. The internal battery is rated 3 to 5 years and exists to ride out chime circuit dips rather than to run the device.
Key features
- 180-degree field of view, wide enough to cover the whole porch from one position
- Full-colour night vision rather than monochrome infrared after dark
- Rated -40F to 140F, a wider band than most of the category
- PIR motion sensor to 8 feet alongside camera-based detection
- Accepts AC or DC power, with a documented resistor and adapter path for awkward circuits
System requirements
Requires 16-24 VAC at 10 VA (20 VA for two doorbells on one circuit), or exactly 12 VDC at 0.5-1 A. A transformer with no chime in circuit requires a 10 watt 10 ohm resistor. Digital chimes require the digital doorbell adapter (ADC-VACC-DB-A). Wi-Fi 802.11 b/g/n 2.4 GHz, minimum 2 Mbps.
Does this work with a digital chime?
What if the transformer has no chime in the circuit?
What DC supply does it need?
What wire gauge should be used?
Can two doorbells share one transformer?
