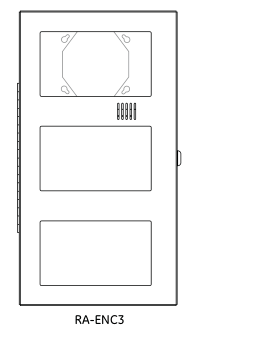

The RA-ENC3 gives an R-Series annunciator and two expanders a secure, finished surface-mount home, protecting the electronics behind a key-locked door while keeping the display visible through the plexiglass window.
Built for the commercial fire installer
16-gauge welded steel construction with a painted finish and a mounting lip that replaces the integral mounting ring supplied with the annunciator and expanders, so no separate hardware is needed. Wiring channels route interconnections cleanly between the three positions. Includes a security lock with two keys, and attaches directly to a standard electrical box.
Key features
- 3-position: one R-Series annunciator plus two expanders, with two interconnection cables included
- Key-locked door with plexiglass window for status visibility
- 16-gauge welded steel, beige finish
- Includes security lock and two keys
- Wiring channels for clean interconnection routing between positions
System requirements
Attaches to a standard electrical box, replacing the integral mounting ring on the annunciator/expander. Allow approximately 2 inches of clearance on both sides for key access and door swing.
Does this include the annunciator?
How many expanders does this hold?
Spec Sheet
