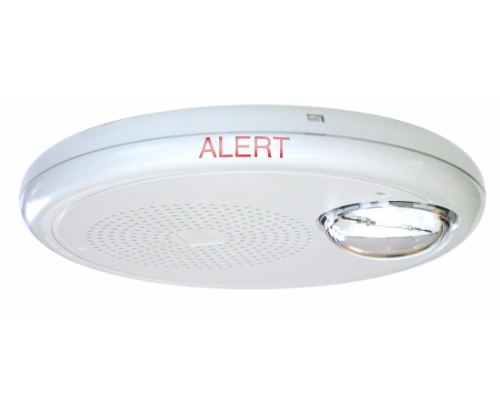

Kidde | Genesis GC Series 520 Hz High Fidelity Ceiling Speaker-Strobe, White, ALERT Marking, 25 VRMS, Multi-Candela High cd, Clear Lens | GCHFWA-S2VMCH

You save

Kidde | Genesis GC Series 520 Hz High Fidelity Ceiling Speaker-Strobe, White, ALERT Marking, 25 VRMS, Multi-Candela High cd, Clear Lens | GCHFWA-S2VMCH

No reviews yet Write a Review

SKU:: KD-GCHFWA-S2VMCH

Description
Specifications
FAQs
Documents

The Kidde Genesis GCHFWA-S2VMCH is a high fidelity 520 Hz ceiling speaker-strobe built for commercial sleeping areas, dormitories, and hotels where NFPA 72 requires low-frequency audible signaling. The white housing with ALERT marking supports mass notification applications, and the multi-candela high cd strobe (selectable 95/115/150/177 cd) covers a wide range of room sizes from a single SKU.

Built for the commercial fire installer

This device mounts flush to any standard North American 4-inch square electrical box (2-1/8" deep) or 960A-4RF round flush box - no extension ring or trim plate required. The low-profile design sits just 1" off the ceiling, 30% slimmer than comparable signals. Wattage taps (1/4W, 1/2W, 1W, 2W) and candela settings are field-selectable without removing the device - open the cover, adjust the switches, and close. Settings remain visible through front windows after installation.

Key features

520 Hz high fidelity output: meets NFPA 72 requirements for sleeping areas in hotels, dormitories, and residential occupancies
Multi-candela high cd strobe: field-selectable 95, 115, 150, or 177 cd output covers small to large spaces without swapping hardware
Low-profile ceiling mount: 30% slimmer than comparable signals, mounts flush to standard 4" square box
Field-configurable wattage: select 1/4W, 1/2W, 1W, or 2W without removing the device from the ceiling
UL 1971, UL 1638, UL 1480 listed: approved for public and private mode applications, ceiling or wall mount
ALERT marking: white housing with ALERT label for mass notification differentiation per ADA requirements

System requirements

Connects to a listed fire alarm control panel via 25 VRMS speaker circuit and 16-33 VDC or VFWR strobe circuit. Compatible synchronization sources include GSA-CC1S, GSA-MCC1S, SIGA-CC2A, GSA-MCC2A, EG1M-RM, MIRBPS6A, MIRBPS10A, APS6A, APS10A, VS Series, and Fireshield Plus 5 and 10 zone panels. Wire with #18 to #12 AWG conductors.

Brand:

Kidde Commercial

Form factor:

Ceiling speaker-strobe, low-profile

Speaker voltage:

25 VRMS

Speaker frequency:

520 Hz high fidelity

Speaker response:

400 to 4,000 Hz

Wattage taps:

1/4W, 1/2W, 1W, 2W (field selectable)

Sound output:

81.4-90.0 dBA at 10 ft (UL 1480 rated, 25 VRMS)

Strobe candela:

95, 115, 150, 177 cd (field selectable, high cd, clear lens)

Strobe voltage:

16-33 VDC or 16-33 VFWR (24V nominal)

Strobe flash rate:

1 flash per second, default

Lens:

Clear, optical grade polycarbonate

Housing:

White, textured UV stabilized engineered plastic, 94V-0 rated

Marking:

ALERT

Mounting:

Flush to 4" square box (2-1/8" deep) or 960A-4RF round flush box, no extension ring required

Dimensions:

6.8" dia (173 mm), 1.0" depth (25 mm)

Wire connections:

#18 to #12 AWG (0.75-2.5 mm²), screw terminals, polarized

Operating temp:

32-120°F (0-49°C)

Operating humidity:

0-93% RH

Compliance:

UL 1971, UL 1638, UL 1480, ULC-S541, UL/ULC listed ceiling or wall, MEA, CSFM, ADA

Synchronization:

Meets/exceeds UL 1971, max 20 Ohms between devices

Compatible sync sources:

GSA-CC1S, GSA-MCC1S, SIGA-CC2A, GSA-MCC2A, EG1M-RM, MIRBPS6A, MIRBPS10A, APS6A, APS10A, VS Series, Fireshield Plus 5/10 zone

Does this model meet NFPA 72 sleeping area requirements?

Yes. The GCHFWA-S2VMCH is a 520 Hz high fidelity model approved for use in sleeping areas per NFPA 72 when used with approved audio hardware and a factory-supplied 520 Hz tone. Suitable for hotels, dormitories, and residential occupancies.

What candela settings are available?

This is a high cd output model with four field-selectable settings: 95, 115, 150, and 177 cd. Settings are changed via a slide switch inside the device without removing it from the ceiling.

Will it fit a standard 4-inch electrical box?

Yes. Mounts flush to any standard North American 4-inch square electrical box, 2-1/8" deep, or a 960A-4RF round flush box. No extension ring or trim plate needed.

Can I change wattage and candela settings after installation?

Yes. Open the cover to access the wattage tap switch (1/4W, 1/2W, 1W, 2W) and candela switch. Settings remain visible through small front windows after the cover is closed. No need to remove the device.

What synchronization sources work with this device?

Compatible sources include GSA-CC1S, GSA-MCC1S, SIGA-CC2A, GSA-MCC2A, EG1M-RM, MIRBPS6A, MIRBPS10A, APS6A, APS10A, VS Series, and Fireshield Plus 5 and 10 zone panels. Synchronization meets or exceeds UL 1971 requirements.

Is this approved for mass notification applications?

Yes. White housing with ALERT marking differentiates mass notification from life safety (FIRE) alerts. Blue and amber lens models also available for mass notification use.
