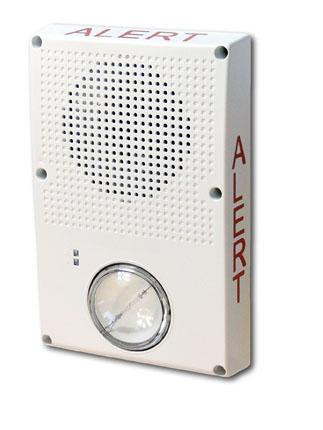

Genesis WG4 Outdoor Wall/Ceiling Speaker-Strobe, High-Output 102/123/147/161 cd Clear Lens, White with ALERT Marking (25/70V)
Kidde Commercial

Genesis WG4 Outdoor Wall/Ceiling Speaker-Strobe, High-Output 102/123/147/161 cd Clear Lens, White with ALERT Marking (25/70V)

SKU KD-WG4WA-SVMHC

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The Genesis WG4WA-SVMHC is an outdoor-rated wall/ceiling speaker-strobe built for mass notification and emergency communications (ECS/MNS) applications. White housing with red ALERT marking, clear high-output strobe selectable at 102, 123, 147, or 161 cd, and a dual-voltage speaker (25V/70V) with field-selectable wattage taps from 1/4W to 2W. UL 1971 and UL 1638 listed for both indoor and outdoor installations.

Built for the commercial installer

Rated for wet and harsh environments down to -31°F, the WG4 Series handles parking garages, loading docks, process areas, and exterior walls where standard notification appliances fall short. Wall or ceiling mount with four orientation options. Full backplane sealing gasket allows installation to recessed in-the-pour or block electrical boxes, and all wiring is room-side for faster trim-out. Mounts to the Kidde 74347U outdoor-rated box or a standard 4-inch square box in dry locations.

Key features

  • Outdoor and indoor rated: UL 1971 (indoor) and UL 1638 (outdoor) listed with -31°F to 151°F operating range
  • High-output strobe: field-selectable at 102, 123, 147, or 161 cd (indoor) - settings visible through sealed viewport after cover install
  • Dual-voltage speaker: switch-selectable 25V or 70V with 1/4, 1/2, 1, or 2 watt taps (up to 90 dBA at 10 ft)
  • Room-side wiring: terminals accept 12 to 18 AWG, no need to access behind the box after mounting
  • Genesis sync compatible: precision-timed to UL 1971 synchronization standards with compatible FACPs, modules, and power supplies
  • ALERT marking: white housing with ALERT labels for clear ECS/MNS differentiation from fire alarm appliances

System compatibility

Synchronizes with VM and VS Series life safety systems, FX Series fire alarm control panels, and Genesis sync modules (GSA-CC1S, GSA-MCC1S, SIGA-CC2A, GSA-MCC2A, EG1M-RM). Also compatible with MIRBPS6A, MIRBPS10A, APS6A, and APS10A power supplies.

Specifications

SKUKD-WG4WA-SVMHC
BrandKidde Commercial
Form factorWall/ceiling mount speaker-strobe, low-profile
Speaker voltage25 VRMS or 70 VRMS, switch selectable (default 70 VRMS)
Strobe voltage24 VDC / 24 VFWR nominal
Speaker wattageField-selectable 1/4W, 1/2W, 1W, or 2W
Sound outputUp to 90.0 dBA at 10 ft (2W, 25V)
Speaker response400 to 4,000 Hz
Strobe output (indoor)102 / 123 / 147 / 161 cd (UL 1971, clear lens)
Strobe output (outdoor)41 / 50 / 60 / 65 cd (UL 1638, clear lens)
Strobe current (VDC)495 / 494 / 390 / 324 mA at positions A/B/C/D
Strobe current (FWR)646 / 607 / 487 / 412 mA at positions A/B/C/D
Operating temp-31°F to 151°F (-35°C to 66°C)
Operating humidity0 to 95% noncondensing
Weather ratingWet rated
Wire size12 to 18 AWG (0.75 to 2.50 mm²)
Supervisory voltage30 V max
MountingWall or ceiling, four orientations
Electrical boxesWet: 74347U; Dry: 4" square by 1-1/2" deep (2-1/8" with trim skirt)
Housing colorWhite
MarkingALERT
Lens colorClear
ComplianceUL 1971, UL 1638
Sync compatibilityVM/VS Series, FX Series FACPs; GSA-CC1S, GSA-MCC1S, SIGA-CC2A, GSA-MCC2A, EG1M-RM modules; MIRBPS6A, MIRBPS10A, APS6A, APS10A power supplies

Documents and resources

FAQs

What FACP or sync source does this speaker-strobe require?
Syncs with VM/VS Series, FX Series FACPs, Genesis modules (GSA-CC1S, GSA-MCC1S, SIGA-CC2A, GSA-MCC2A, EG1M-RM), and power supplies (MIRBPS6A, MIRBPS10A, APS6A, APS10A).
Can this speaker-strobe be installed outdoors?
Yes. The WG4 Series is wet-rated and UL 1638 listed for outdoor use. It operates from -31°F to 151°F and mounts to the Kidde 74347U outdoor-rated electrical box.
How do I change the candela or wattage settings?
Candela and wattage are field-selectable via switches and jumpers on the appliance. All settings are visible through a sealed viewport on the cover after installation, so you can verify without removing the faceplate.
What electrical box does this mount to?
For wet/outdoor locations, use the Kidde 74347U box. For dry locations, a standard 4-inch square box by 1-1/2" deep works (or 2-1/8" deep with the trim skirt accessory).
What are the outdoor candela ratings vs. indoor?
Indoor UL 1971 ratings are 102/123/147/161 cd. Outdoor UL 1638 ratings for the same switch positions are 41/50/60/65 cd. The difference reflects UL's separate test standards for outdoor visibility.
Is this a mass notification (ECS/MNS) appliance?
Yes. The ALERT marking and white housing designate this as an ECS/MNS appliance, visually distinguishing it from red fire alarm notification devices per NFPA 72 requirements.
