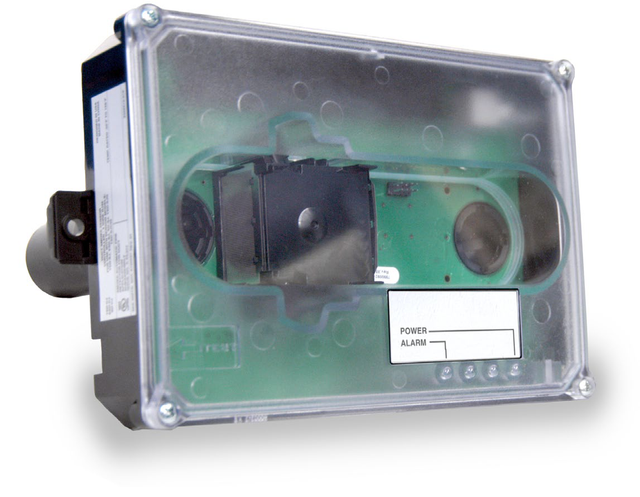

Superduct Gsa Duct Smoke Detector
Kidde Commercial

Superduct Gsa Duct Smoke Detector

SKU KD-GSA-SD

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The GSA-SD SuperDuct is an intelligent, addressable duct smoke detector that shuts down HVAC airflow before smoke circulates through the building's duct system. It carries the same Signature Series photoelectric sensing platform as Kidde's addressable detector line, with environmental compensation that filters out drift and nuisance signals over the life of the unit.

Built for the commercial fire installer

Less than 2 inches deep, the housing fits into tight duct chase clearances without special tooling. The sampling tube installs with or without the cover in place and rotates in 45-degree increments, so alignment with duct airflow doesn't depend on getting the mounting orientation exact on the first try. Removable dust filters and a magnet-activated test switch keep routine maintenance and testing from becoming a two-person job.

Key features

  • Signature Series intelligent sensing: environmental compensation and differential sensing hold sensitivity stable and drift-free over time
  • Wide operating range: -20°F to 158°F (-29°C to 70°C), 100 to 4,000 ft/min air velocity
  • Less than 2" deep housing for tight duct installations
  • Rotating sampling tube, adjustable in 45-degree increments, with or without cover in place
  • Form C auxiliary alarm relay for HVAC shutdown or ancillary equipment control
  • Removable dust filters and magnet-activated test switch simplify field maintenance

System compatibility

Compatible with Kidde VS and VM control systems. UL, ULC, CSFM, FM, and MEA listed. Mounts to a standard North American 1-gang or 4-inch square electrical box.

Specifications

SKUKD-GSA-SD
BrandKidde Commercial
Form factorIntelligent addressable duct smoke detector, less than 2" deep
Compatible panelsKidde VS and VM control systems
Detection methodPhotoelectric (light scattering), Signature Series sensing
Sensitivity0.79 to 2.46 %/ft. obscuration
Air velocity rating100 to 4,000 ft/min
Air pressure differential0.005 to 1.00 in. of water
Operating voltage / current15.2 to 19.95 VDC; standby 45 µA, alarm 45 µA, inrush 1 mA
Auxiliary alarm relay1 Form C, unsupervised, power-limited, 2.0 A @ 30 VDC resistive
Operating temp (UL / ULC)-20 to 158°F (-29 to 70°C) UL; -4 to 120°F (-29 to 49°C) ULC
Humidity10 to 93% noncondensing
MountingNorth American 1-gang box or 4" square box, 1-1/2" deep, with 1-gang cover
Agency listingsUL, ULC, CSFM, FM, MEA

Documents and resources

FAQs

What does the GSA-SD do?
It's an intelligent addressable duct smoke detector that senses smoke in HVAC ductwork and can trigger HVAC shutdown through its onboard Form C relay before smoke recirculates through the building.
What panels is this compatible with?
Kidde VS and VM control systems.
How deep is the housing and what electrical box does it mount to?
Less than 2 inches deep, mounting to a standard North American 1-gang box or a 4-inch square box, 1-1/2 inches deep, with a 1-gang cover.
Can the sampling tube be adjusted for duct airflow direction after mounting?
Yes. The sampling tube can be installed with or without the cover in place and rotated in 45-degree increments to align with duct airflow.
Is a duct detector a substitute for area smoke detection?
No. Per Kidde's documentation, duct detectors are not a substitute for open-area smoke detection or a building's primary fire detection system.
