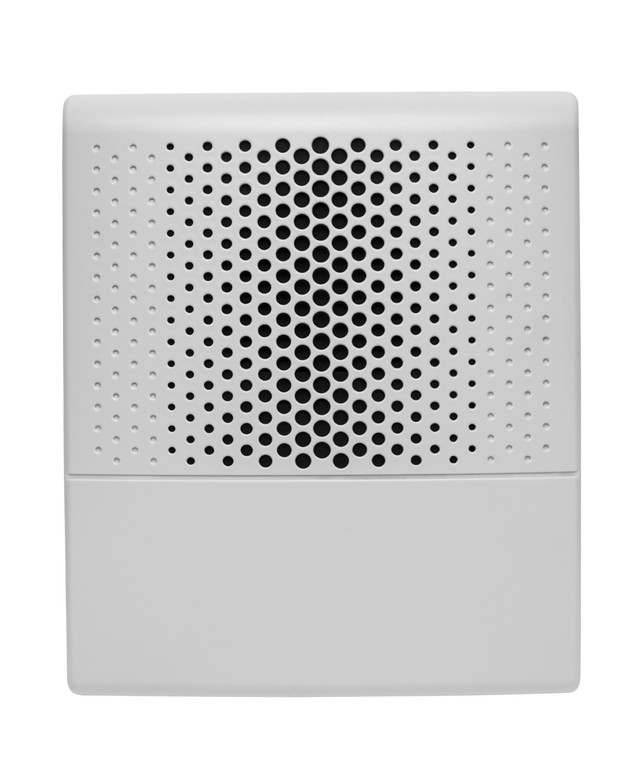

Genesis LED EG4 Series Wall Mount Speaker, White, ALERT Marking
Kidde Commercial

Genesis LED EG4 Series Wall Mount Speaker, White, ALERT Marking

SKU KD-EG4SWA

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The Genesis LED EG4 Series wall mount speaker delivers clear, intelligible notification audio on commercial fire alarm and mass notification circuits. The sealed-back 4-inch mylar cone cuts background noise bleed, and field-selectable wattage taps (1/4, 1/2, 1, or 2W) let you match output to the space without swapping the device. Room-side wiring plate included for accessible connections after install.

Built for the commercial installer

Flush-mounts to any standard North-American 4-inch square box (2-1/8" deep minimum) with no special hardware. Available in 25 VRMS and 70 VRMS configurations to match your FACP speaker circuit. Screw terminals accept #18 to #12 AWG. UL and ULC listed (File S2813), with CSFM and MEA approvals for broad code acceptance across jurisdictions.

Key features

  • Selectable wattage taps: 1/4W, 1/2W, 1W, or 2W - match output to the room without changing hardware
  • Sealed-back speaker design: 4-inch mylar cone with 400-4,000 Hz response for voice intelligibility
  • Room-side wiring plate included: screw terminals accessible after the speaker is seated
  • ALERT marking: white housing with ALERT text for mass notification compliance
  • Standard 4-inch box mount: flush to existing electrical boxes, no adapters needed
  • UL/ULC listed: File S2813, plus CSFM and MEA approvals

System requirements

Connects to any compatible FACP or mass notification system with 25 VRMS or 70 VRMS speaker circuits. Requires a standard 4-inch square electrical box, minimum 2-1/8" deep. For surface mount applications, use the Genesis EG4B surface mount box (sold separately).

Specifications

SKUKD-EG4SWA
BrandKidde Commercial
Form factorWall-mount speaker, Genesis LED EG4 Series
Speaker type4-inch (102mm) sealed-back mylar cone
Frequency response400 to 4,000 Hz
Wattage taps1/4W, 1/2W, 1W, 2W (field-selectable)
Sound output80 dBA (1/4W), 83 dBA (1/2W), 86 dBA (1W), 89 dBA (2W) at 10 ft
Input voltage25 VRMS or 70 VRMS (model-dependent)
Wire connectionsScrew terminals, #18 to #12 AWG (0.75 to 2.5 mm²)
MountingFlush to standard 4" square box, 2-1/8" (54mm) deep minimum
Housing colorWhite
Text markingALERT
Operating temp32°F to 120°F (0°C to 49°C)
Operating humidity0-93% RH, non-condensing
Dimensions6.5" H x 5" W x 1" D (165 x 127 x 25 mm)
Weight1.5 lbs (0.68 kg)
ComplianceUL/ULC Listed (File S2813), CSFM 7320-1657:0211/0285, MEA

Documents and resources

FAQs

What size electrical box does this speaker require?
Flush-mounts to any standard North-American 4-inch square box, minimum 2-1/8" (54mm) deep. For surface installations, use the Genesis EG4B surface mount box (sold separately).
Can I change the wattage tap in the field?
Yes. The speaker has field-selectable wattage taps at 1/4W, 1/2W, 1W, and 2W. Select the tap that matches your circuit design and room coverage requirements.
Does this speaker work with both 25V and 70V circuits?
The Genesis EG4 Series speakers are available in 25 VRMS and 70 VRMS configurations. Verify your model matches the FACP or mass notification speaker circuit voltage before installing.
What is the sound output at each wattage setting?
Measured at 10 feet: 80 dBA at 1/4W, 83 dBA at 1/2W, 86 dBA at 1W, and 89 dBA at 2W.
Is this UL listed for mass notification applications?
Yes. UL/ULC listed under File S2813 with ALERT text marking for mass notification. Also carries CSFM and MEA approvals.
What wire gauge do the terminals accept?
Screw terminals accept #18 to #12 AWG (0.75 mm² to 2.5 mm²). Room-side wiring plate keeps connections accessible after the speaker is mounted.
