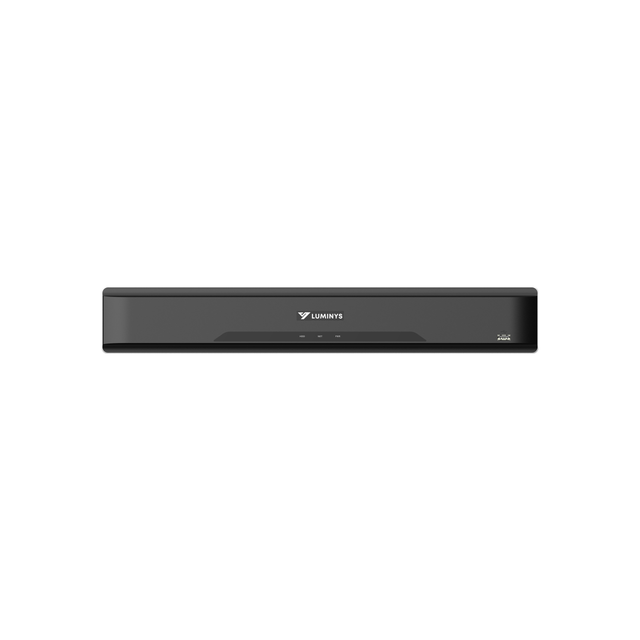

R5 Mainstream NVR, 32MP 32 Ch Dual Nic, 4SATA, Lumisearch+, 10TB
SKU LM-R54-32NA10
- Fast shipping from four branches
- 30-day returns on unopened products
The Luminys R54-32NA10 is a 32-channel 32MP 8K NVR built for commercial deployments that need serious recording capacity and on-board analytics without leaning on a cloud subscription. Dual Gigabit NICs, four SATA bays with 10TB pre-installed, and a full recorder-side AI stack cover everything from intelligent motion to face recognition to license plate capture in a 1.5U chassis.
Built for the commercial installer
Both NICs are live simultaneously - run one to your management network and one to your camera VLAN, or use them for active redundancy. The unit ships NDAA Section 889 compliant, so it clears federal, state, and government-adjacent job requirements. ONVIF and RTSP interoperability mean it slots into mixed-manufacturer deployments; full AI analytics require compatible Luminys cameras but standard recording works with any ONVIF stream.
Key features
- 32-channel, 32MP recording: supports 8K down to legacy 1080p inputs in a single rack unit
- Dual Gigabit NIC: independent simultaneous connections for network segmentation or redundancy
- Recorder-side AI: iMD, VCA (10 rules/channel), Face Recognition (up to 20,000-face library), LumiSearch+, Video Metadata, and LPR - no cloud required
- 4 SATA + 1 eSATA: 10TB included, scales to 64TB total with up to 16TB per drive
- Dual HDMI + Dual VGA outputs: two independent display connections for control room or head-end setups
- NDAA Section 889 compliant: ready for government and critical infrastructure bids
System requirements
Connects to the network via either or both Gigabit ports. Monitor locally via HDMI or VGA, or remotely via LumiViewer desktop/mobile or LumiCloud. No dedicated server needed - the recorder handles AI processing onboard. Compatible Luminys cameras unlock the full analytics stack; ONVIF cameras record natively at up to 32MP.
Specifications
| SKU | LM-R54-32NA10 |
|---|---|
| Brand | Luminys |
| Form factor | 1.5U rack-mount or desktop |
| Channels | 32 |
| Max input resolution | 32MP (8K) |
| Recording bandwidth | 400 Mbps (AI off) / 220 Mbps (AI on) |
| Decoding (AI off) | 2-ch at 32MP, 4-ch at 16MP, 8-ch at 8MP, 16-ch at 4MP, 32-ch at 1080p (all 30fps) |
| Decoding (AI on) | 1-ch at 32MP, 2-ch at 16MP, 4-ch at 8MP, 12-ch at 4MP, 24-ch at 1080p (all 30fps) |
| Storage included | 10TB (1x HDD pre-installed) |
| Max storage | 64TB (4x SATA up to 16TB each + 1x eSATA) |
| Network | 2x RJ-45 Gigabit Ethernet (10/100/1000 Mbps), Dual NIC |
| Video output | 2x HDMI + 2x VGA (independent outputs) |
| USB | 1x USB 2.0 (front panel), 2x USB 3.0 (rear panel) |
| Serial port | 1x RS-232 |
| Alarm I/O | 16-channel input / 6-channel output |
| Audio I/O | 1-channel RCA input / 2-channel RCA output |
| Analytics | iMD, VCA (10 rules/channel), Face Recognition, LumiSearch+, Video Metadata, LPR |
| Codec | H.265+, H.265, H.264+, H.264, MJPEG |
| Communication | ONVIF, RTSP; HTTP/S, TCP/IP, IPv4/IPv6, SNMP, NTP, DHCP, DDNS |
| Client software | LumiViewer (desktop + mobile), LumiCloud |
| Power supply | 100-240 VAC, 50-60 Hz |
| Power consumption | |
| Operating temp | -10°C to 55°C (14°F to 131°F) |
| Operating humidity | 10% to 93% |
| Dimensions | 442.0 × 414.1 × 68.0 mm (17.4 × 16.3 × 2.7 in.) |
| Weight | 4.7 kg (10.5 lb) without HDD |
| Compliance | NDAA Section 889, FCC |
