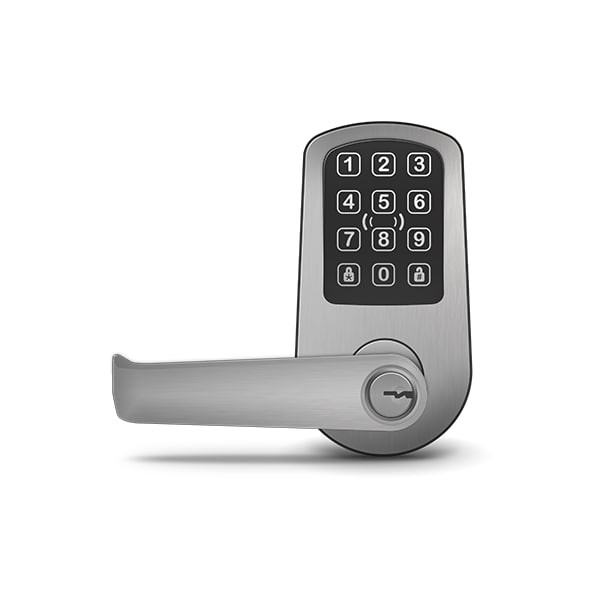

Name: PDK | Red Wireless Cylindrical Lock - Prox + Keypad, Satin Chromium | RLC2PKS
Brand: PDK
SKU: PDK-RLC2PKS
Price: 99999.99 USD
Availability: InStock

PDK | Red Wireless Cylindrical Lock - Prox + Keypad, Satin Chromium | RLC2PKS

No reviews yet Write a Review

SKU:

PDK-RLC2PKS

Description
Specifications
FAQs
Documents

The PDK Red Wireless Cylindrical Lock puts wireless access control on commercial-grade doors without a single wire run. Battery-powered (4x AA, up to two years) or hardwired to 5V DC, it pairs to the Red Hub over HubNet and enrolls in PDK.io automatically, using the same workflow as every other door on the system.

Built for the commercial installer

Grade 2 ANSI/BHMA construction and IP65 weather rating cover exterior and interior applications, including semi-exposed vestibule and covered entry doors. SFIC keyway compatibility keeps it inside existing master key schedules without hardware changes. Credential support spans the full PDK stack: Proximity (125 kHz), PDK High-Security 13.56 MHz (MIFARE DESFire EV1/EV2/EV3), BLE mobile credential via the PDK.io app, and PIN. TAA and NDAA Section 889 compliant. Assembled in USA.

Key features

No wire runs required: battery or 5V DC power, HubNet wireless to the Red Hub
IP65 weather-rated for exterior and interior door applications
Grade 2 ANSI/BHMA construction fits standard commercial door schedules
SFIC keyway support for integration with existing master key systems
Multi-credential: Prox 125 kHz, PDK High-Security 13.56 MHz, BLE mobile, and PIN (varies by SKU)
TAA and NDAA Section 889 compliant, assembled in USA

System requirements

Each lock communicates to PDK.io through a PDK Red Hub (PDK-RHUB). One hub supports up to 16 locks and connects to the existing Ethernet network via PoE or 12-24V DC. No additional controller or panel required.

Four stock styles, endless customization

These locks come in two styles and two finishes: Cylindrical and Deadbolt, Satin Chromium and Flat Black. Looking at this one? Compare it against the other three:

Don't see a lock that fits your needs? You can customize your SKU to the exact shape, style, finish, and credential technology you need.

Configure Your Lock

Brand:

PDK

ANSI/BHMA Grade:

Grade 2

Power Source:

4x AA alkaline or 5V DC

Battery Life:

Up to 2 years

Wireless Protocol:

HubNet (2.4 GHz / 802.15.4)

Mobile Credential Radio:

BLE 4.2, BLE 5.2

Encryption:

AES 256-bit

IP Rating:

IP65 (exterior and interior)

Door Thickness:

1-3/8" to 1-3/4"

Backset:

2-3/8", 2-3/4" (adjustable); 5" available

Operating Temperature:

-4°F to 149°F (-20°C to 65°C)

Operating Humidity:

0-95% RH non-condensing

Keyway:

Conventional, SFIC, High Security, UL437

Finish:

Satin Chromium (626/US26D)

Credential Technologies:

High-Security 13.56 MHz, Prox 125 kHz, BLE Mobile, Keypad

Certifications:

FCC Part 15, UL/cUL 10C, ADA, TAA, NDAA Section 889

Country of Origin:

Assembled in USA

Warranty:

2 yr Mechanical / 2 yr Electronics (standard); up to 5 yrs Platinum Partner

Compatible Platform:

PDK.io 2.0

Required Accessory:

PDK-RHUB (Red Hub)

Does this lock require a hub?

Yes. Every Red Wireless Lockset pairs to a PDK Red Hub (PDK-RHUB) over HubNet. One hub supports up to 16 locks and bridges them to PDK.io.

How many locks can one Red Hub support?

Up to 16 Red Wireless Locksets per hub. One hub typically covers a full apartment floor, office suite, or classroom wing.

Does this work with existing door prep?

Yes. The cylindrical lock fits door thickness 1-3/8" to 1-3/4", with backset options of 2-3/8", 2-3/4" (standard), and 5". SFIC and conventional keyway options available.

What happens when the battery runs low?

PDK.io sends low battery alerts remotely. The lock continues to operate until fully depleted, with visible and audible indicators at the lock.

Does the lock require network connectivity at the door?

No. The lock communicates wirelessly to the Red Hub over HubNet. Only the hub requires a wired Ethernet connection.
