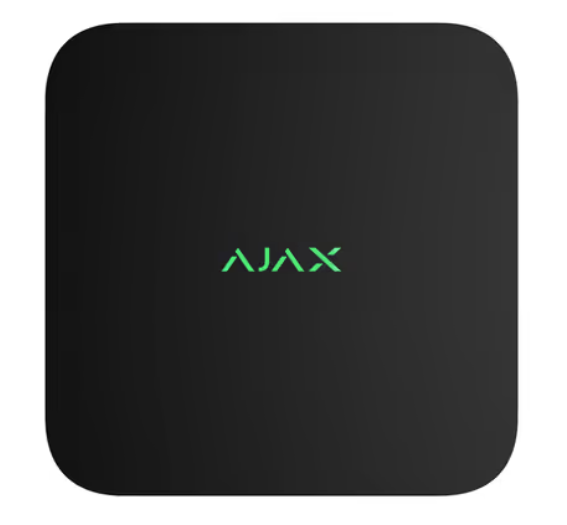

NVR 8-Channel Network Video Recorder with ONVIF Support, Black
SKU AJ-78271
- Fast shipping from four branches
- 30-day returns on unopened products
An 8-channel network video recorder that records Ajax cameras and third-party IP cameras together. It conforms to ONVIF Profile G and S and supports RTSP, so existing cameras on a site do not have to be replaced to bring video onto the Ajax app.
Built for the installer
That ONVIF conformance is what makes it viable on a retrofit. The customer gets one interface covering intrusion and video, while keeping whatever cameras are already installed and working.
It takes a single 2.5 or 3.5 inch SATA drive up to 16 TB, which is not included, and supports H.265 as well as H.264. H.265 roughly halves the storage a given retention period costs, so specify cameras that support it where retention matters.
Bandwidth is up to 100 Mbps, with Bluetooth for setting up the Ethernet connection and a tamper alarm on the enclosure.
Key features
- Records Ajax and third-party IP cameras together via ONVIF Profile G and S and RTSP
- Up to 4K at 25/30 FPS across 8 channels
- Single drive up to 16 TB, 2.5 or 3.5 inch SATA, not included
- H.265 and H.264, where H.265 roughly halves the storage cost of a retention period
- One interface for intrusion and video in the Ajax app
- Tamper alarm on the recorder enclosure
System requirements
Requires 110-240 V mains and an Ajax account. Indoor installation only. A drive is not included; supports drives up to 7 W power consumption.
Specifications
| SKU | AJ-78271 |
|---|---|
| Brand | AJAX |
| Channels | 8-channel, up to 4K resolution at 25/30 FPS |
| Camera support | Ajax cameras, ONVIF Profile conformant IP cameras, and RTSP |
| Storage | 1 x drive up to 16 TB, SATA, 2.5 or 3.5 in form factor. Drive not included |
| Drive power limit | Supports drives with power consumption up to 7 W |
| Video codecs | H.265, H.264 |
| Bandwidth | Up to 100 Mbps |
| Network | Ethernet up to 100 Mbps |
| Bluetooth | BLE 2.400-2.4835 GHz, used to set up the Ethernet connection |
| ONVIF | Conformant with ONVIF Profile G and S |
| Power input | 110-240 V AC, 50/60 Hz, 0.6 A, up to 24 W |
| Backup | CR2032 battery, powers the system clock only |
| Sabotage protection | Tamper alarm on enclosure opening or removal from the mounting panel |
| Dimensions | 7.60 x 7.60 x 1.85 in |
| Device weight | 21.68 oz without a drive |
| Operating temp | 32F to 104F |
| Operating humidity | Up to 75% |
| Protection class | IP20 |
| Colour | Black |
| Region | 9NA, North America model |
| Warranty | 24 months |
