PoE-Powered 5-Port Gigabit Switch with PoE Passthrough. Supplied as Intellinet article 561082. The manufacturer datasheet is linked in the Documents tab.

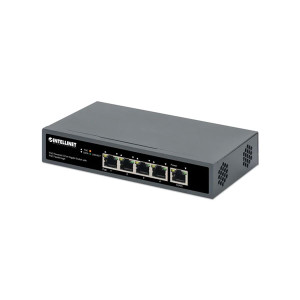

PoE-Powered 5-Port Gigabit Switch with PoE Passthrough 4 x PSE PoE ports, 1 x PD PoE port, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), IEEE 802.3az Energy Efficient Ethernet, Desktop
- Receives power from a PoE injector or PoE switch and provides power to up to four PoE network devices
- Save time and money by delivering data and power via existing network cables
- Doubles the connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.)
- 10/100/1000 auto-sensing ports automatically detect optimal network speeds
- IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
- All RJ45 ports with Auto-MDIX (auto uplink) support
About Intellinet
Intellinet supplies network switches, PoE injectors and rack infrastructure for the professional channel, with published datasheets and declarations of conformity per article number.
Brand:
INTELLINET
Manufacturer part number:
561082
Standards:
IEEE 802.3at, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
Backplane speed:
10 Gbps
MAC address table:
2048 entries
Buffer memory:
Buffer memory of 1.5 MBits
Dimensions:
78 x 140 x 28 mm (3.07 x 5.51 x 1.1 in.)
Weight:
0.27 kg
PoE budget:
60 W PoE Power Budget, One PoE PD Port, Four PSE PoE ports, IEEE 802.3at/af (PoE+/PoE) Compliant, Desktop Format, Wall-mount Option
Operating temperature:
0 - 40Ā°C (32 - 104Ā°F)
Ports:
5 port
PoE standard:
PoE+ (IEEE 802.3at/af)
What is the Intellinet article number?
Article 561082. Intellinet catalogue everything by article number, so quote this when cross-referencing a datasheet or a bill of materials.
Is a datasheet available?
Yes. The Intellinet datasheet for article 561082 is linked in the Documents tab.
Which PoE standard does this support?
PoE+ (IEEE 802.3at/af). Check the powered device's class and draw against the switch's total power budget before specifying.
