Carrier
-
Frequency
-
Wireless technology
Wi-Fi
Bluetooth
-
Platform
This item replaces QO-IQP4001QO-IQP4003 Direct upgrade from the IQ Panel 4 Verizon models. Existing PowerG sensors carry over; 319 or 345 MHz sensors need the add-on card.
IQ Panel 5 All-In-One 7" PowerG+ Alarm Panel with Z-Wave 800 Long Range & Verizon LTE
SKU QO-IQP5017
- PowerG+ built in with 128 security zones, plus 319, 345 and 433 MHz takeovers with an add-on card
- Verizon LTE CAT4 cellular, dual-band Wi-Fi, Bluetooth 5.0 and Z-Wave 800 Long Range for 167 devices
- 7-inch 1280 x 800 touchscreen, 13 MP camera, dual 4 W speakers and an 85 dB siren
- Android 14 on a Qualcomm quad-core SoM, 24-hour backup battery, UL residential and commercial listed
- Free logo branding available
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- ProtocolPowerG+
- Camera13 MP PortraitView, 120° view
- ConnectivityLTE, Wi-Fi, Bluetooth, Z-Wave 800
- Compatibility319, 345, 433 MHz add-on card
- Zones128 security, 100 automation
- Size7 in, 1280 x 800 touch
Pairs with

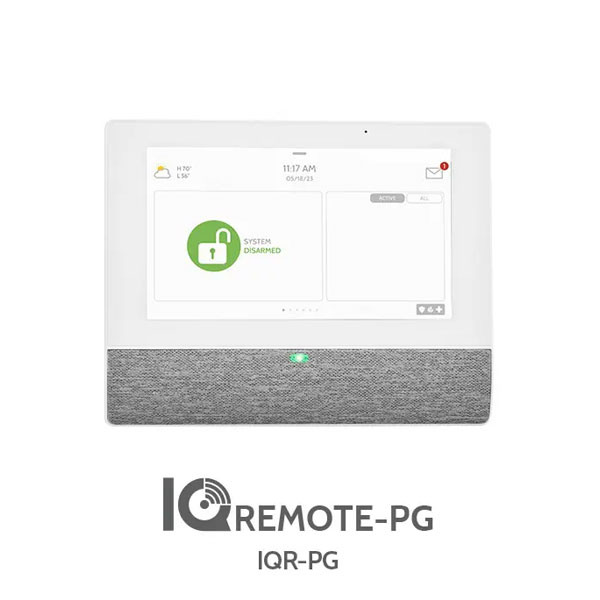

- Secondary keypad IQ HD Touchscreen, Remote PowerG – Secondary Tablet with Wi-Fi & Battery Backup QO-IQR-PG

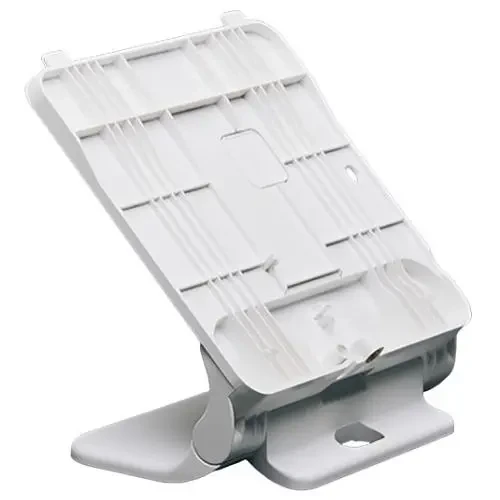

- Table stand IQ Panel 5, IQ5 Hub, IQ5 NS Stand QO-IQ5ST
The IQ Panel 5 is the next-generation 7-inch all-in-one security and smart home panel from Johnson Controls. It ships with PowerG+ built in, Z-Wave 800-Series Long Range, dual-band Wi-Fi, Bluetooth 5.0, and a Verizon LTE CAT4 cellular radio. Runs Android 14 on a Qualcomm DragonWing quad-core SoM, so it stays supported for the long haul.
Built for takeovers and greenfield installs
PowerG+ ships in the box. Legacy 319, 345, and 433 MHz support is available via add-on cards installed at the panel, which means the same platform covers new PowerG+ deployments and takeover jobs where the customer already owns sensors on an older frequency. One panel SKU, one dealer stock, every job type. UL985, UL1023, and UL2610 listings cover residential fire and burglary and commercial burglary applications. ULC-S545 and ULC-S304 cover Canada.
Key features
- PowerG+ built in: 128 security zones and 100 automation devices out of the box, with legacy 319/345/433 available via add-on card
- Z-Wave 800-Series Long Range: up to 167 devices for smart home and automation
- 13MP PortraitView camera: wide-angle 120 degree field of view for disarm and panic snapshots
- 7" 1280x800 capacitive multi-touch display with dual 4W front-facing speakers and 85dB piezo siren
- 24+ hour lithium-ion backup battery (18650, 3,000 mAh)
- Verizon LTE CAT4 cellular path plus dual-band Wi-Fi and Bluetooth 5.0 LE. Click here to view the AT&T version.
- UL/cUL residential and commercial listed: UL985, UL1023, UL2610, ULC-S545, ULC-S304
How to sell it
Lead with the takeover. Most of the panels you replace this year are 319, 345 or 433 MHz systems with sensors the customer already paid for. One IQ Panel 5 with the matching add-on card keeps every one of those sensors, adds PowerG+ for anything new, and the customer gets a 7-inch touchscreen, a camera and an app in the same visit. That is a one-truck upgrade with no re-wiring and no sensor replacement, and it is the sentence that closes it.
For new construction, sell the platform rather than the panel: Android 14 on a current Qualcomm chip means the panel keeps getting features for years, and Z-Wave 800 Long Range covers locks, lights and thermostats without a second hub. Show the PortraitView camera on disarm, since customers understand "you see who turned it off" faster than any spec.
Carry one SKU per carrier and the add-on cards, and every job type is covered from stock. The AT&T version is the other listing in the family above.
System notes
Connects to Alarm.com over the built-in Verizon LTE cellular path. Requires an active Alarm.com Interactive plan with cellular; video streaming from the built-in camera to the Alarm.com app requires an interactive video plan on top. Panel supports up to 4 partitions and 242 user codes.
Specifications
| SKU | QO-IQP5017 |
|---|---|
| Brand | IQ (Qolsys) |
| Form factor | 7" wall-mount all-in-one alarm panel |
| Cellular carrier | Verizon LTE CAT4 |
| Communication | PowerG+ 915 MHz, Verizon LTE CAT4, Wi-Fi 802.11 a/b/g/n/ac dual-band, Z-Wave 800-Series Long Range, Bluetooth 5.0 LE |
| Legacy RF support | 319, 345, and 433 MHz via optional add-on card |
| Wireless capacity | 128 PowerG+ security, 100 PowerG automation, 167 Z-Wave |
| Camera | 13MP PortraitView, 120 degree wide-angle |
| Display | 7" 1280x800 capacitive multi-touch, 300 cd/m² |
| Audio | Dual 4W front-facing speakers, 85dB piezo siren, dual MEMS microphones |
| Processor | Qualcomm DragonWing quad-core SoM |
| Operating system | Android 14 |
| Storage | 32GB NAND flash |
| Partitions | Up to 4 |
| User codes | Up to 242 |
| Power input | 12V DC 1000mA (100-240VAC 50/60Hz adapter, barrel jack) |
| Backup battery | 18650 lithium-ion 3,000 mAh, 24+ hour runtime |
| Operating temp | 32°F to 120°F (0°C to 49°C) |
| Operating humidity | Up to 93% RH, non-condensing |
| Dimensions | 6.1"H x 7.5"W x 1"D (155 x 191 x 26 mm) |
| Weight | 2 lb 4 oz (1 kg) packaged |
| Certifications | UL985, UL1023, UL2610, ULC-S545, ULC-S304; FCC 2AAJXQSIQP5; IC 11205A-QSIQP5 |
| Frequency | PowerG+ |
