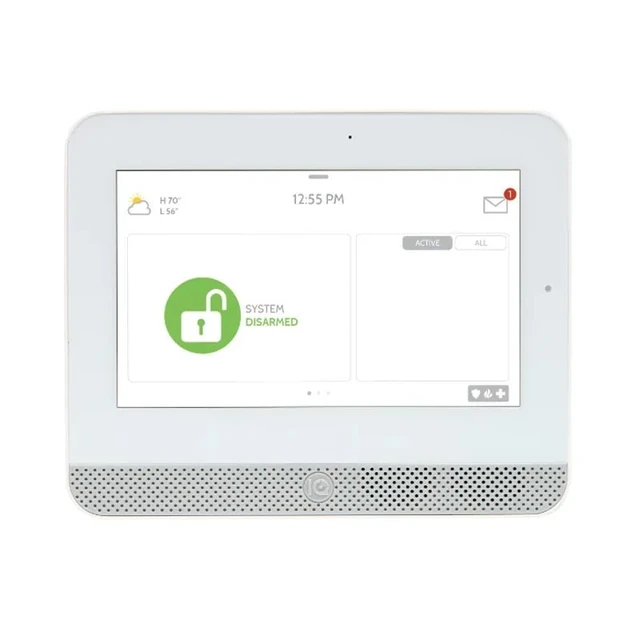

IQ (Qolsys) | IQ5 Hub 7" PowerG+ Alarm Panel with Z-Wave 800 Long Range & AT&T LTE (Replaces IQPH055, IQPH056, IQPH057, IQPH058) | IQH5018

IQ (Qolsys) | IQ5 Hub 7" PowerG+ Alarm Panel with Z-Wave 800 Long Range & AT&T LTE (Replaces IQPH055, IQPH056, IQPH057, IQPH058) | IQH5018

No reviews yet Write a Review
SKU:
QO-IQH5018

The IQ5 Hub is the camera-less variant of the IQ Panel 5. Same 7-inch touchscreen, same Android 14 platform on Qualcomm DragonWing, same PowerG+ radio built in, same Z-Wave 800-Series Long Range and dual-band Wi-Fi. AT&T LTE CAT4 for cellular. Drops the on-panel 13MP camera and the dual speaker/mic array to hit a lower dealer cost.

When the on-panel camera isn't part of the job

The IQ5 Hub exists for installs where the customer already has a separate video system, or where the on-panel camera isn't part of the deal. Everything else about the IQ5 platform carries forward: PowerG+ ships in the box, legacy 319, 345, and 433 MHz support is available via add-on cards, the same UL985 / UL1023 / UL2610 / ULC-S545 / ULC-S304 listings cover residential fire and burglary and commercial burglary in both the US and Canada. Same modular RF story, same certification, same Alarm.com integration ā€” just at a lower price point. Direct upgrade path from the IQ Panel Hub AT&T family (replaces IQPH055, IQPH056, IQPH057, IQPH058).

Key features

  • PowerG+ built in: 128 security zones and 100 automation devices, with legacy 319/345/433 available via add-on card
  • Z-Wave 800-Series Long Range: up to 167 devices for smart home and automation
  • 7" 1080x600 capacitive multi-touch display with 85dB piezo siren
  • 24+ hour lithium-ion backup battery (18650, 3,000 mAh)
  • AT&T LTE CAT4 cellular path plus dual-band Wi-Fi and Bluetooth 5.0 LE for disarming. Click here to view the Verizon version.
  • UL/cUL residential and commercial listed: UL985, UL1023, UL2610, ULC-S545, ULC-S304
  • No on-panel camera ā€” pair with a separate video system when needed

System notes

Connects to Alarm.com over the built-in AT&T LTE cellular path. Requires an active Alarm.com Interactive plan with cellular. Panel supports up to 4 partitions and 242 user codes. Optional SmartMount table stand sold separately for desktop deployments.

View the full IQ5 lineup

Brand:
IQ (Qolsys)
Form factor:
7" wall-mount alarm panel hub (no on-panel camera)
Cellular carrier:
AT&T LTE CAT4
Communication:
PowerG+ 915 MHz, AT&T LTE CAT4, Wi-Fi 802.11 a/b/g/n/ac dual-band, Z-Wave 800-Series Long Range, Bluetooth 5.0 LE
Legacy RF support:
319, 345, and 433 MHz via optional add-on card
Wireless capacity:
128 PowerG+ security, 100 PowerG automation, 167 Z-Wave
On-panel camera:
None (video handled by separate system if needed)
Display:
7" 1080x600 capacitive multi-touch, 300 cd/mĀ²
Audio:
1 front-facing 2W speaker, 85dB piezo siren, 1 MEMS microphone
Processor:
Qualcomm DragonWing quad-core SoM
Operating system:
Android 14
Memory:
3GB LPDDR RAM, 32GB NAND flash storage
Partitions:
Up to 4
User codes:
Up to 242
Power input:
12V DC 1000mA (100-240VAC 50/60Hz adapter, barrel jack)
Backup battery:
18650 lithium-ion 3,000 mAh, 24+ hour runtime
Operating temp:
32Ā°F to 120Ā°F (0Ā°C to 49Ā°C)
Operating humidity:
Up to 93% RH, non-condensing
Dimensions:
6.1"H x 7.5"W x 1"D (155 x 191 x 26 mm)
Weight:
2 lb 4 oz (1 kg) packaged
Certifications:
UL985, UL1023, UL2610, ULC-S545, ULC-S304; FCC 2AAJXQSIQP5; IC 11205A-QSIQP5
How is the IQ5 Hub different from the IQ Panel 5?
The Hub drops the 13MP PortraitView on-panel camera, downgrades the dual 4W speakers to a single 2W speaker, and uses one MEMS mic instead of two. Everything else ā€” chipset, OS, wireless capacity, cert ā€” matches the Panel.
Which cellular carrier does this panel use?
AT&T LTE CAT4 variant. See the full IQ5 lineup for Verizon options.
Which IQ Panel Hub models does this replace?
IQH5018 is the direct upgrade path for the AT&T IQ Panel Hub SKUs IQPH055, IQPH056, IQPH057, and IQPH058. Existing PowerG sensor deployments migrate forward via standard takeover; legacy 319/345/433 MHz sensors are supported via optional add-on card.
Can I reuse existing 319, 345, or 433 MHz sensors?
Yes, with the corresponding legacy RF add-on card installed at the panel. PowerG+ is built in; other frequencies are per-frequency add-on cards.
Is the IQ5 Hub UL Commercial listed?
Yes. UL985, UL1023, UL2610 cover residential fire, residential burglary, and commercial burglary. ULC-S545 and ULC-S304 cover Canada.
How many Z-Wave devices does it support?
Up to 167 devices on the built-in 800-Series Z-Wave Long Range radio.
What Alarm.com plan is required?
An active Alarm.com Interactive plan with cellular is required for the panel's connected features. Configure through your Alarm.com dealer portal at activation.
How long does the battery last during a power outage?
24+ hours on the built-in 18650 lithium-ion battery (3,000 mAh), meeting UL commercial standby requirements.
