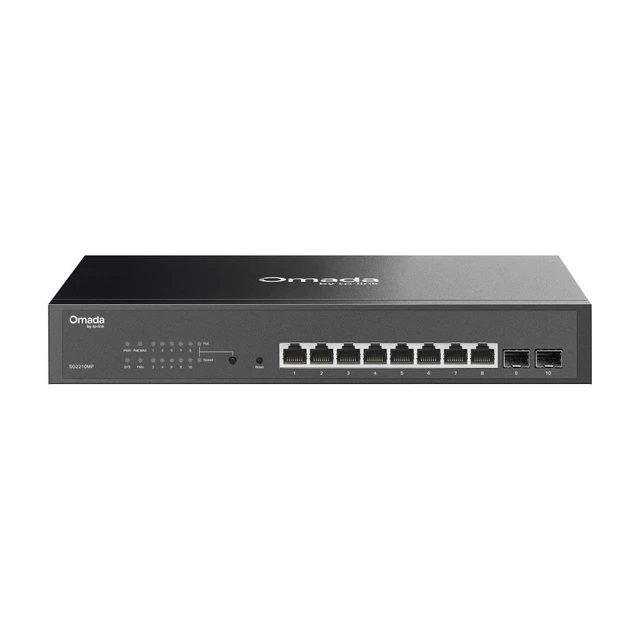

Omada 10-Port Gigabit Smart PoE+ Switch, 8 PoE+ Ports, 150 W, 2 Gigabit SFP Slots, Rackmount
SKU TPL-SG2210MP Model SG2210MP
- 8 Gigabit PoE+ ports sharing a 150 W budget for cameras, APs and phones
- Two SFP slots for fiber uplinks to the core or between buildings
- VLANs, ACLs, 802.1X and static routing for segmented camera networks
- Managed in Omada with zero-touch provisioning, or standalone by web UI and CLI
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- Ports8 x Gigabit PoE+, 2 x SFP
- PoE150 W, 802.3af/at
- MountRackmount or desktop
- Size11.6 x 7.1 x 1.7 in
The Omada SG2210MP is a 10-port Gigabit Smart switch with eight PoE+ ports and a 150 W budget, built for a small rack or shelf full of cameras and access points. Two SFP slots take fiber uplinks, and the whole switch is managed in the same Omada site as the gateway and APs.
Built for camera and wireless deployments
Every RJ45 port is 802.3af/at PoE+, with Perpetual PoE keeping devices powered through a switch reboot and Fast PoE bringing them up before the switch finishes booting. Static routing, 802.1Q VLANs, ACLs and 802.1X cover segmented camera, voice and guest networks. The steel case mounts in a rack with the included brackets or sits on a desk.
Key features
- 8 PoE+ ports, 150 W total: 802.3af/at for PTZs, APs and phones
- Perpetual and Fast PoE: devices stay powered through a switch reboot and power up early on a cold start
- Two SFP slots: for fiber uplinks to the core or between buildings
- VLANs, static routing and ACLs: up to 4K VLAN groups and 32 IPv4/IPv6 static routes
- Rackmount or desktop: mounting brackets and feet included
- Omada management: zero-touch provisioning and batch firmware upgrades through the cloud controller
System requirements
Powered from 100-240V AC with the included power cord. Powered devices must be 802.3af or 802.3at compliant. Centralized management needs an Omada Cloud-Based Controller (firmware 5.15.22 or later), Omada hardware controller or Omada Software Controller (5.15.20 or later); zero-touch provisioning needs the cloud controller. Without a controller the switch runs standalone from its own web interface and CLI.
Specifications
| SKU | TPL-SG2210MP |
|---|---|
| Brand | TP-Link |
| Form factor | 10-port Gigabit Smart PoE+ switch with SFP slots, rackmount or desktop |
| Communication | Ethernet / IP |
| Power input | 100-240V AC, 50/60 Hz |
| Power consumption | 172.7 W max at 110V with 150 W of PoE load |
| Management | Smart |
| PoE | 802.3af PoE |
| PoE | 802.3at PoE+ |
| Port speed | Gigabit |
| Works with | Omada |
| Ethernet ports | 8 x Gigabit RJ45 PoE+ |
| SFP slots | 2 x 100/1000 Mbps SFP |
| PoE budget | 150 W total |
| PoE features | Perpetual PoE, Fast PoE |
| Switching capacity | 20 Gbps |
| Packet forwarding rate | 14.88 Mpps |
| MAC address table | 8K |
| Jumbo frame | 9 KB |
| VLANs | 4K 802.1Q VLAN groups, MAC, protocol and voice VLAN, GVRP |
| L2+ features | 32 IPv4/IPv6 static routes, DHCP server and relay, link aggregation with LACP, STP/RSTP/MSTP, loopback detection |
| Security | 802.1X, RADIUS AAA, ACLs, DHCP snooping, ARP inspection, port security, storm control |
| Controller management | Omada Cloud-Based (v5.15.22+), hardware or Software Controller (v5.15.20+); Omada app |
| Communication notes | Web GUI, CLI through Telnet, SNMP v1/v2c/v3, RMON, LLDP/LLDP-MED, IGMP snooping, IPv6 |
| Cooling | 1 fan |
| Surge protection | ±6 kV |
| Mounting | Rackmount or desktop (mounting brackets and feet included) |
| Dimensions | 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) |
| Operating temp | 23°F to 122°F (-5°C to 50°C) |
| Operating humidity | 10 to 90% RH, non-condensing |
| Compliance | FCC, CE |
| Package contents | SG2210MP, power cord, mounting brackets, mounting feet, screws, installation guide |
