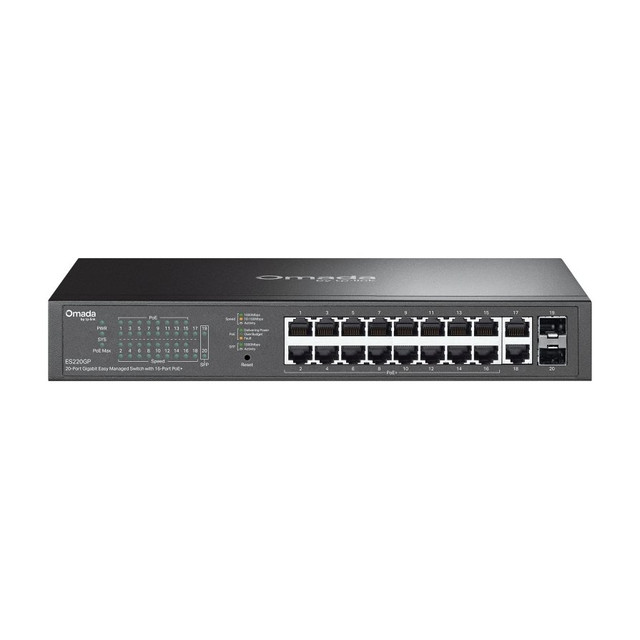

Omada 20-Port Gigabit Easy Managed PoE+ Switch, 16 PoE+ Ports, 150 W, 2 SFP Slots, Fanless
SKU TPL-ES220GP Model ES220GP
- 16 Gigabit PoE+ ports from a 150 W budget, plus 2 RJ45 and 2 SFP slots
- Fast PoE and Perpetual PoE keep cameras up through a switch reboot
- PoE reach to 250 m, VLANs and port isolation in a fanless case
- Adopts into Omada with zero-touch provisioning, or runs standalone by web GUI
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- Ports16 PoE+, 2 RJ45, 2 SFP
- PoE150 W, 802.3af/at
- RangePoE to 250 m
- MountDesktop or rack
- Size11.6 x 7.1 x 1.7 in
The Omada ES220GP is a 20-port Gigabit Easy Managed switch with sixteen PoE+ ports and a 150 W budget, a fanless fit for a closet or office rack with a mid-size camera and AP load. Two SFP slots handle fiber uplinks or links to another switch.
Built for quiet closets and mid-size camera installs
Sixteen ports deliver 802.3af/at PoE+ at up to 30 W each, but the 150 W budget is shared, so size the job by total draw. Two more RJ45 ports and two Gigabit SFP slots cover data and uplinks. Fast PoE and Perpetual PoE keep devices up through a reboot, and PoE reach extends to 250 m at a reduced 10 Mbps link. With no fan it stays silent on a desk or in a rack.
Key features
- 16 PoE+ ports, 150 W total: 802.3af/at at up to 30 W per port for cameras, APs and phones
- 2 Gigabit SFP slots plus 2 data ports: fiber uplinks or links to a recorder and a second switch
- Fast PoE and Perpetual PoE: devices power up early and stay powered through a switch reboot
- PoE reach to 250 m: long camera runs at a reduced 10 Mbps link speed
- Fanless, desktop or rack mount: silent in use, brackets and screws included, with a security lock slot
System requirements
Powered from a 100-240V AC outlet with the included power cord. Powered devices must be 802.3af or 802.3at compliant. The SFP slots need separate Gigabit SFP modules. Centralized management needs an Omada Cloud-Based, Hardware or Software Controller; zero-touch provisioning needs the cloud controller. Without a controller the switch runs standalone from its web interface.
Specifications
| SKU | TPL-ES220GP |
|---|---|
| Brand | TP-Link |
| Form factor | 20-port Gigabit Easy Managed PoE+ switch, fanless, desktop or rack mount |
| Communication | Ethernet / IP |
| Power input | 100-240V AC, 50/60 Hz, 2.5A (power cord included) |
| Power consumption | 182.43 W max at 110V with 150 W of PoE load |
| Management | Easy Managed |
| PoE | 802.3af PoE |
| PoE | 802.3at PoE+ |
| Port speed | Gigabit |
| Works with | Omada |
| Ethernet ports | 16 x Gigabit PoE+ RJ45, 2 x Gigabit RJ45 |
| SFP slots | 2 x Gigabit SFP |
| PoE budget | 150 W total, 30 W max per port |
| PoE features | Fast PoE, Perpetual PoE, PoE Auto Recovery (standalone mode), IntelliRecover (controller mode), up to 250 m PoE reach (link drops to 10 Mbps) |
| Switching capacity | 40 Gbps |
| Packet forwarding rate | 29.76 Mpps |
| MAC address table | 8K |
| Jumbo frame | 15 KB |
| VLANs | 802.1Q tag VLAN, up to 32 VLAN groups (4K VID), MTU VLAN, port-based VLAN |
| L2 features | Static link aggregation (up to 4 groups, 8 ports per group), loopback detection, 802.3x flow control, port mirroring (one-to-one, many-to-one), port statistics, LLDP |
| Security | Port isolation, storm control (broadcast, multicast, unknown unicast), physical security lock slot |
| Controller management | Omada Cloud-Based, Hardware and Software Controller; Omada app |
| Communication notes | Web GUI, DHCP client, cable diagnostics, LLDP, IGMP v1/v2/v3 snooping with fast leave, port-based/802.1p/DSCP QoS with 8 queues and WRR, ONVIF in controller mode |
| Cooling | Fanless |
| Surge protection | ±6 kV common mode on Ethernet ports |
| Mounting | Desktop or rack mount (brackets, screws and rubber feet included) |
| Dimensions | 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) |
| Operating temp | 23°F to 104°F (-5°C to 40°C) |
| Operating humidity | 10 to 90% RH, non-condensing |
| Compliance | FCC, CE |
| Package contents | ES220GP, power cord, mounting brackets, rubber feet, screws, installation guide |
