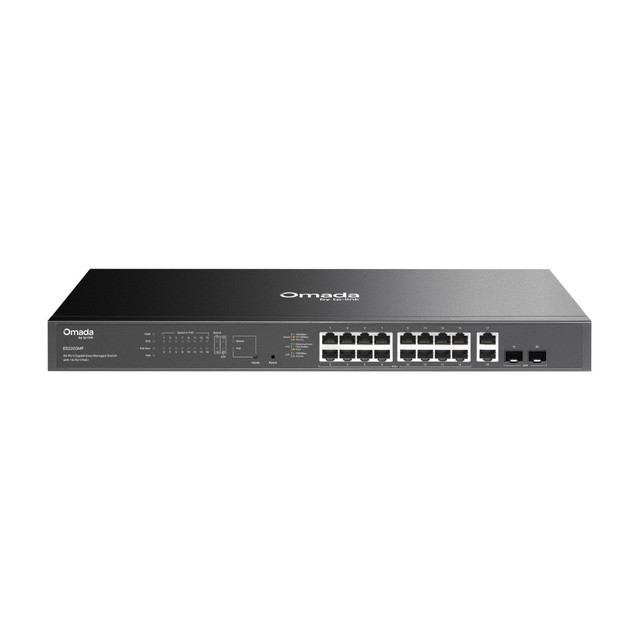

Omada 20-Port Gigabit Easy Managed PoE+ Switch, 16 PoE+ Ports, 250 W, 2 SFP Slots, 1U Rack
SKU TPL-ES220GMP Model ES220GMP
- 16 Gigabit PoE+ ports from a 250 W budget, plus 2 RJ45 and 2 SFP slots
- Fast PoE and Perpetual PoE keep cameras up through a switch reboot
- PoE reach to 250 m, VLANs and port isolation in a 1U rack case
- Adopts into Omada with zero-touch provisioning, or runs standalone by web GUI
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- Ports16 PoE+, 2 RJ45, 2 SFP
- PoE250 W, 802.3af/at
- RangePoE to 250 m
- Mount1U rack
- Size17.3 x 7.1 x 1.7 in
The Omada ES220GMP is a 20-port Gigabit Easy Managed switch with sixteen PoE+ ports and a 250 W budget, a rack-mount fit for a 16-camera or mixed camera and AP install. Two SFP slots handle fiber uplinks or links to another switch.
Built for 16-camera and wireless installs
Sixteen ports deliver 802.3af/at PoE+ at up to 30 W each from the 250 W budget, with two more RJ45 ports for data and two Gigabit SFP slots for fiber. Fast PoE and Perpetual PoE keep devices up through a switch reboot, and PoE reach extends to 250 m at a reduced 10 Mbps link. It has one fan, rated 15.0 to 34.3 dBA at 1 m.
Key features
- 16 PoE+ ports, 250 W total: 802.3af/at at up to 30 W per port for cameras, APs and phones
- 2 Gigabit SFP slots plus 2 data ports: fiber uplinks or links to a recorder and a second switch
- Fast PoE and Perpetual PoE: devices power up early and stay powered through a switch reboot
- PoE reach to 250 m: long camera runs at a reduced 10 Mbps link speed
- 1U rack mount: brackets and screws included, with a physical security lock slot
System requirements
Powered from a 100-240V AC outlet with the included power cord. Powered devices must be 802.3af or 802.3at compliant. The SFP slots need separate Gigabit SFP modules. Centralized management needs an Omada Cloud-Based, Hardware or Software Controller on built-in version 6.1.0 or later; zero-touch provisioning needs the cloud controller. Without a controller the switch runs standalone from its web interface.
Specifications
| SKU | TPL-ES220GMP |
|---|---|
| Brand | TP-Link |
| Form factor | 20-port Gigabit Easy Managed PoE+ switch, 1U rack mount |
| Communication | Ethernet / IP |
| Power input | 100-240V AC, 50/60 Hz (power cord included) |
| Power consumption | 289.7 W max at 110V with 250 W of PoE load |
| Management | Easy Managed |
| PoE | 802.3af PoE |
| PoE | 802.3at PoE+ |
| Port speed | Gigabit |
| Works with | Omada |
| Ethernet ports | 16 x Gigabit PoE+ RJ45, 2 x Gigabit RJ45 |
| SFP slots | 2 x Gigabit SFP |
| PoE budget | 250 W total, 30 W max per port |
| PoE features | Fast PoE, Perpetual PoE, PoE Auto Recovery (standalone mode), IntelliRecover (controller mode), up to 250 m PoE reach (link drops to 10 Mbps) |
| Switching capacity | 40 Gbps |
| Packet forwarding rate | 29.76 Mpps |
| MAC address table | 8K |
| Jumbo frame | 15 KB |
| VLANs | 802.1Q tag VLAN, up to 32 VLAN groups (4K VID) |
| L2 features | Static link aggregation (up to 4 groups), loopback detection, 802.3x flow control, port mirroring (one-to-one, many-to-one), port statistics, LLDP, 802.3az EEE |
| Security | Port isolation, storm control (broadcast, multicast, unknown unicast), physical security lock slot |
| Controller management | Omada Cloud-Based, Hardware and Software Controller (built-in version 6.1.0 or later); Omada app |
| Communication notes | Web GUI, DHCP client, cable diagnostics, LLDP, IGMP v1/v2/v3 snooping with fast leave, port-based/802.1p/DSCP QoS with 8 queues and WRR, ONVIF in controller mode |
| Cooling | 1 fan, 15.0 to 34.3 dBA at 1 m (77°F / 25°C) |
| Surge protection | ±6 kV common mode on Ethernet ports |
| Mounting | 1U rack mount (brackets, screws and mounting feet included) |
| Dimensions | 17.3 x 7.1 x 1.7 in (440 x 180 x 44 mm) |
| Operating temp | 23°F to 122°F (-5°C to 50°C) |
| Operating humidity | 10 to 90% RH, non-condensing |
| Compliance | FCC, CE |
| Package contents | ES220GMP, power cord, mounting brackets, mounting feet, screws, installation guide |
