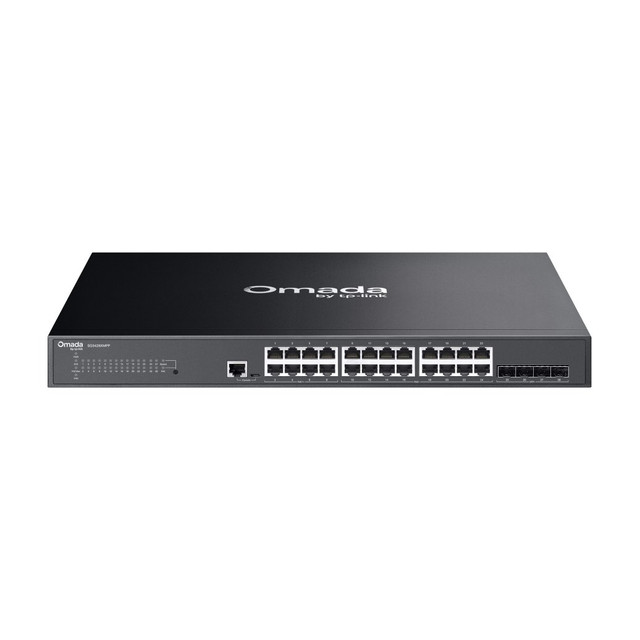

Omada 28-Port Gigabit L2+ Managed Switch, 8 PoE++ and 16 PoE+ Ports, 500 W, 4 x 10G SFP+ Slots
SKU TPL-SG3428XMPP Model SG3428XMPP
- 24 Gigabit ports: 8 PoE++ at up to 90 W and 16 PoE+ at up to 30 W
- 500 W total PoE budget for PTZ cameras, APs and high-draw devices
- 4 10G SFP+ slots for uplinks and 128 Gbps of switching capacity
- Managed in Omada with zero-touch provisioning, or standalone by web UI and CLI
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- Ports24 x Gigabit, 4 x 10G SFP+
- PoE500 W, up to 90 W per port
- ConnectivityL2+ managed, cloud or standalone
- Mount19-inch rack
- Size17.3 x 13.0 x 1.7 in
The Omada SG3428XMPP is a 28-port Gigabit L2+ managed switch with eight 802.3bt PoE++ ports, sixteen PoE+ ports and a 500 W budget, for racks that feed PTZ cameras, outdoor APs and other high-draw devices alongside standard PoE gear. Four 10G SFP+ slots carry the uplinks.
Built for high-power PoE deployments
Ports 1 to 8 deliver up to 90 W each and ports 9 to 24 deliver up to 30 W, all sharing 500 W. Perpetual PoE keeps cameras powered through a switch reboot and Fast PoE brings them up before the switch finishes booting. It manages in the same Omada site as the gateway and APs, with static routing, 802.1Q VLANs, ACLs and 802.1X for segmented networks, and mounts in a 19-inch rack.
Key features
- Eight PoE++ ports at up to 90 W for PTZs, outdoor APs and other high-draw devices
- Sixteen PoE+ ports at up to 30 W with a 500 W total budget
- Perpetual and Fast PoE: devices stay powered through a switch reboot and power up early on a cold start
- Four 10G SFP+ slots for uplinks to the core or between buildings
- L2+ features: static routing, DHCP server, VLANs, ACLs and ERPS ring recovery
System requirements
Centralized management needs an an Omada Cloud-Based Controller, Omada hardware controller or Omada Software Controller; zero-touch provisioning needs the cloud controller. Without a controller the switch runs standalone from its own web interface and CLI. Powered devices must be 802.3af, 802.3at or 802.3bt compliant.
Specifications
| SKU | TPL-SG3428XMPP |
|---|---|
| Brand | TP-Link |
| Form factor | 28-port Gigabit L2+ managed PoE++ switch with 10G SFP+ uplinks, rackmount |
| Communication | Ethernet / IP |
| Power input | 100-240V AC, 50/60 Hz |
| Power consumption | 597.7 W max at 110V with 500 W of PoE load |
| Management | L2+ Managed |
| PoE | 802.3af PoE |
| PoE | 802.3at PoE+ |
| PoE | 802.3bt PoE++ |
| Port speed | Gigabit |
| Port speed | 10G |
| Works with | Omada |
| Ethernet ports | 24 x Gigabit RJ45 (8 PoE++, 16 PoE+) |
| SFP slots | 4 x 1/10G SFP+ |
| Console ports | 1 x RJ45, 1 x Micro-USB |
| PoE budget | 500 W total; ports 1-8 up to 90 W, ports 9-24 up to 30 W |
| PoE features | Perpetual PoE, Fast PoE |
| Switching capacity | 128 Gbps |
| Packet forwarding rate | 95.23 Mpps |
| MAC address table | 16K |
| Jumbo frame | 9 KB |
| VLANs | 4K 802.1Q VLANs, MAC, protocol, private and voice VLAN, VLAN mapping and replace |
| L2+ features | 48 IPv4/IPv6 static routes, DHCP server and relay, link aggregation, STP, ERPS, loopback detection |
| Security | 802.1X, RADIUS and TACACS+ AAA, ACLs, DHCP snooping, ARP inspection, port security, storm control |
| Controller management | Omada Cloud-Based, hardware or Software Controller; Omada app |
| Communication notes | Web GUI, CLI via console and Telnet, SNMP v1/v2c/v3, RMON, LLDP, sFlow, IPv6 |
| Cooling | 3 fans; typical 44.6 dBA at 1 m (80% PoE load, 77°F/25°C) |
| Surge protection | 6 kV |
| Mounting | 19-inch rack (rackmount kit and rubber feet included) |
| Dimensions | 17.3 x 13.0 x 1.7 in (440 x 330 x 44 mm) |
| Operating temp | 23°F to 113°F (-5°C to 45°C) |
| Operating humidity | 10 to 90% RH, non-condensing |
| Compliance | FCC, CE |
| Package contents | SG3428XMPP, power cord, RJ45 console cable, rackmount kit, rubber feet, screws, installation guide |
