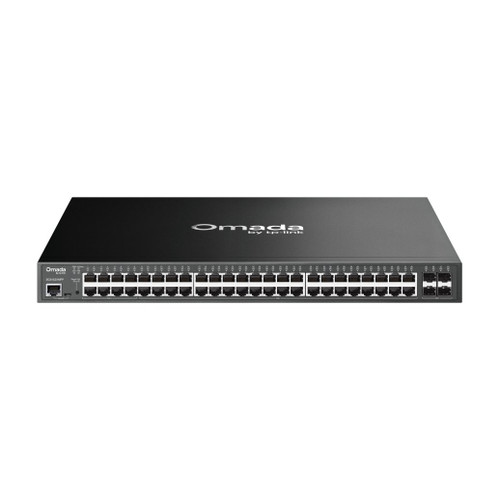

Omada 52-Port Gigabit L2+ Managed Switch, 8 PoE++ and 40 PoE+ Ports, 750 W, 4 x 10G SFP+ Slots
SKU TPL-SG3452XMPP Model SG3452XMPP
- 48 Gigabit ports: 8 PoE++ at up to 90 W and 40 PoE+ at up to 30 W
- 750 W total PoE budget for PTZ cameras, APs and high-draw devices
- 4 10G SFP+ slots for uplinks and 176 Gbps of switching capacity
- Managed in Omada with zero-touch provisioning, or standalone by web UI and CLI
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- Ports48 x Gigabit, 4 x 10G SFP+
- PoE750 W, up to 90 W per port
- ConnectivityL2+ managed, cloud or standalone
- Mount19-inch rack
- Size17.3 x 13.0 x 1.7 in
The Omada SG3452XMPP is a 52-port Gigabit L2+ managed switch with eight 802.3bt PoE++ ports, forty PoE+ ports and a 750 W budget, built for dense racks that power PTZ cameras, outdoor APs and standard PoE gear from one rack unit. Four 10G SFP+ slots carry the uplinks.
Built for dense, high-power PoE deployments
Ports 1 to 8 deliver up to 90 W each and ports 9 to 48 deliver up to 30 W, all sharing 750 W. Perpetual PoE keeps cameras powered through a switch reboot and Fast PoE brings them up before the switch finishes booting. With 176 Gbps of switching capacity and 10G uplinks, a full PoE load does not choke the backbone. It manages in the same Omada site as the gateway and APs, and mounts in a 19-inch rack.
Key features
- Eight PoE++ ports at up to 90 W for PTZs, outdoor APs and other high-draw devices
- Forty PoE+ ports at up to 30 W with a 750 W total budget
- Perpetual and Fast PoE: devices stay powered through a switch reboot and power up early on a cold start
- Four 10G SFP+ slots and 176 Gbps switching capacity
- L2+ features: static routing, DHCP server, VLANs, ACLs and ERPS ring recovery
System requirements
Centralized management needs an an Omada Cloud-Based Controller, Omada hardware controller or Omada Software Controller; zero-touch provisioning needs the cloud controller. Without a controller the switch runs standalone from its own web interface and CLI. Powered devices must be 802.3af, 802.3at or 802.3bt compliant.
Specifications
| SKU | TPL-SG3452XMPP |
|---|---|
| Brand | TP-Link |
| Form factor | 52-port Gigabit L2+ managed PoE++ switch with 10G SFP+ uplinks, rackmount |
| Communication | Ethernet / IP |
| Power input | 100-240V AC, 50/60 Hz |
| Power consumption | 932.6 W max at 110V with 750 W of PoE load |
| Management | L2+ Managed |
| PoE | 802.3af PoE |
| PoE | 802.3at PoE+ |
| PoE | 802.3bt PoE++ |
| Port speed | Gigabit |
| Port speed | 10G |
| Works with | Omada |
| Ethernet ports | 48 x Gigabit RJ45 (8 PoE++, 40 PoE+) |
| SFP slots | 4 x 1/10G SFP+ |
| Console ports | 1 x RJ45, 1 x Micro-USB |
| PoE budget | 750 W total; ports 1-8 up to 90 W, ports 9-48 up to 30 W |
| PoE features | Perpetual PoE, Fast PoE, PoE extend mode |
| Switching capacity | 176 Gbps |
| Packet forwarding rate | 130.9 Mpps |
| MAC address table | 16K |
| Jumbo frame | 9 KB |
| VLANs | 4K 802.1Q VLANs, MAC, protocol, private and voice VLAN, VLAN mapping and replace |
| L2+ features | 48 IPv4/IPv6 static routes, DHCP server and relay, link aggregation, STP, ERPS, loopback detection |
| Security | 802.1X, RADIUS and TACACS+ AAA, ACLs, DHCP snooping, ARP inspection, port security, storm control |
| Controller management | Omada Cloud-Based, hardware or Software Controller; Omada app |
| Communication notes | Web GUI, CLI via console and Telnet, SNMP v1/v2c/v3, RMON, LLDP, sFlow, IPv6 |
| Cooling | 3 fans; typical 38.3 dBA at 1 m (600 W PoE load, 77°F/25°C) |
| Surge protection | 6 kV |
| Mounting | 19-inch rack (rackmount kit and rubber feet included) |
| Dimensions | 17.3 x 13.0 x 1.7 in (440 x 330 x 44 mm) |
| Operating temp | 23°F to 113°F (-5°C to 45°C) |
| Operating humidity | 10 to 90% RH, non-condensing |
| Compliance | FCC, CE |
| Package contents | SG3452XMPP, power cord, RJ45 console cable, rackmount kit, rubber feet, screws, installation guide |
