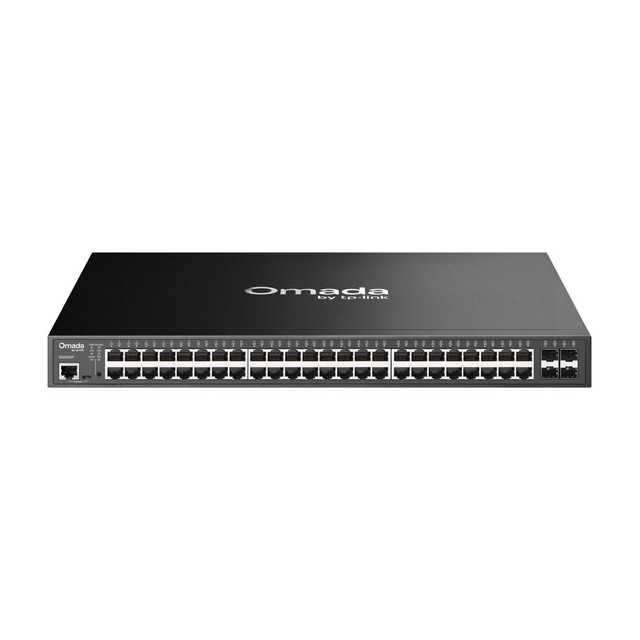

Omada 52-Port Gigabit L2+ Managed PoE+ Switch, 48 PoE+ Ports, 384 W, 4 SFP Slots
SKU TPL-SG3452P Model SG3452P
- 48 Gigabit PoE+ ports with a 384 W budget and up to 30 W per port
- 4 Gigabit SFP slots for fiber uplinks to the core or another closet
- L2+ static routing, VLANs, QinQ, ACLs, 802.1X and ERPS ring recovery
- Managed in Omada with zero-touch provisioning, or standalone by web UI and CLI
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- Ports48 x Gigabit PoE+, 4 x SFP
- PoE384 W, 30 W per port
- ConnectivityL2+ managed, cloud or standalone
- Mount19-inch rack
- Size17.3 x 13.0 x 1.7 in
The Omada SG3452P is a 52-port Gigabit L2+ managed switch with 48 PoE+ ports and a 384 W PoE budget, for dense camera and access point jobs where one rack unit has to power and connect a lot of drops. Four Gigabit SFP slots handle uplinks, and it manages in the same Omada site as the gateway and APs.
Built for high-density camera and AP jobs
Every RJ45 port is 802.3af/at PoE+ at up to 30 W, all sharing 384 W, so size the load before you fill the ports. Perpetual PoE keeps cameras powered through a switch reboot and Fast PoE brings them up before the switch finishes booting. Static routing, 802.1Q VLANs, QinQ, ACLs and 802.1X cover segmented camera, voice and guest networks, and the switch mounts in a 19-inch rack.
Key features
- 48 PoE+ ports sharing 384 W: up to 30 W per port for cameras, APs and phones
- Perpetual and Fast PoE: devices stay powered through a switch reboot and power up early on a cold start
- Four Gigabit SFP slots for fiber uplinks
- L2+ features: static routing, DHCP server, VLANs, QinQ, ACLs and ERPS ring recovery
- Zero-touch provisioning and batch firmware upgrades through the Omada Cloud-Based Controller
System requirements
Centralized management needs an Omada Cloud-Based Controller (firmware 5.15.22 or later), Omada hardware controller or Omada Software Controller (5.15.20 or later); zero-touch provisioning needs the cloud controller. Without a controller the switch runs standalone from its own web interface and CLI. Powered devices must be 802.3af or 802.3at compliant.
Specifications
| SKU | TPL-SG3452P |
|---|---|
| Brand | TP-Link |
| Form factor | 52-port Gigabit L2+ managed PoE+ switch, rackmount |
| Communication | Ethernet / IP |
| Power input | 100-240V AC, 50/60 Hz |
| Power consumption | 464.2 W max at 110V with 384 W of PoE load |
| Management | L2+ Managed |
| PoE | 802.3af PoE |
| PoE | 802.3at PoE+ |
| Port speed | Gigabit |
| Works with | Omada |
| Ethernet ports | 48 x Gigabit RJ45 PoE+ |
| SFP slots | 4 x Gigabit SFP |
| Console ports | 1 x RJ45, 1 x Micro-USB |
| PoE budget | 384 W total, up to 30 W per port |
| PoE features | Perpetual PoE, Fast PoE |
| Switching capacity | 104 Gbps |
| Packet forwarding rate | 77.38 Mpps |
| MAC address table | 16K |
| Jumbo frame | 9 KB |
| VLANs | 4K 802.1Q VLANs, MAC, protocol and voice VLAN, QinQ |
| L2+ features | 48 static routes, DHCP server and relay, link aggregation, STP, ERPS, loopback detection |
| Security | 802.1X, RADIUS and TACACS+ AAA, ACLs, DHCP snooping, ARP inspection, port security, storm control |
| Controller management | Omada Cloud-Based (v5.15.22+), hardware or Software Controller (v5.15.20+); Omada app |
| Communication notes | Web GUI, CLI via console and Telnet, SNMP v1/v2c/v3, RMON, LLDP, sFlow, IPv6 |
| Cooling | 3 fans; typical 37.0 dBA at 1 m (80% PoE load, 77°F/25°C), fanless below 50 W PoE load |
| Surge protection | ±6 kV |
| Mounting | 19-inch rack (rackmount kit and rubber feet included) |
| Dimensions | 17.3 x 13.0 x 1.7 in (440 x 330 x 44 mm) |
| Operating temp | 23°F to 113°F (-5°C to 45°C) |
| Operating humidity | 10 to 90% RH, non-condensing |
| Compliance | FCC, CE |
| Package contents | SG3452P, power cord, console cable, rackmount kit, rubber feet, screws, installation guide |
