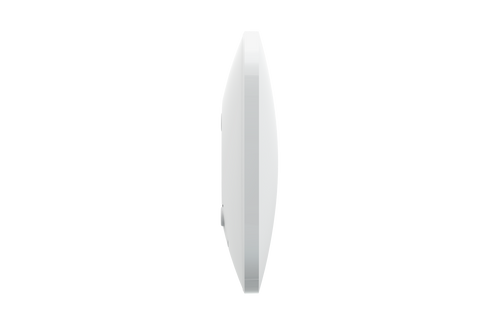

  • AJAX | ReX 2 Jeweller Range Extender with Ethernet & Photo Verification Support, White | 42841

You save

AJAX | ReX 2 Jeweller Range Extender with Ethernet & Photo Verification Support, White | 42841

AJAX | ReX 2 Jeweller Range Extender with Ethernet & Photo Verification Support, White | 42841

No reviews yet Write a Review
SKU:
AJ-42841

The range extender that also carries photos. ReX 2 supports the Wings protocol alongside Jeweller, which is what lets it forward images from MotionCam detectors, and it has an Ethernet port so the extended segment can reach the hub over the network instead of over the air.

Built for the installer

That Ethernet option is the real differentiator. On a site where the far building has a network drop but no reliable radio path, ReX 2 connects over Ethernet and serves the devices around it locally. Photo delivery drops from 18 seconds over Wings to 10 seconds over Ethernet.

Alarm delivery to the hub is 0.3 seconds. Up to 199 devices per extender, five extenders per hub.

Key features

  • Forwards photo verification from MotionCam detectors, which ReX 1 does not
  • Ethernet port so a far building can reach the hub over the network instead of over the air
  • Photo delivery in 10 s over Ethernet against 18 s over the radio path
  • 0.3 second alarm delivery to the hub
  • Up to 199 devices per extender, five extenders per hub

System requirements

Requires an Ajax hub. Powered from 110-240 V mains and designed for indoor use only. Photo verification requires MotionCam devices and a compatible hub.

Brand:
AJAX
Radio communication range:
Up to 5,600 ft in open space, between the device and a hub or range extender
Protocols:
Jeweller and Wings
Devices per extender:
Up to 199
Extenders per hub:
Up to 5
Ethernet:
1 x 8P8C socket, up to 100 Mbps, as main or alternative channel
Alarm delivery time:
0.3 s to the hub
Photo delivery time:
18 s via Wings, 10 s via Ethernet
Power input:
110-240 V AC
Sabotage protection:
Tamper alarm on enclosure opening or removal from the mounting panel
Use environment:
Indoor use only
Colour:
White
Region:
9NA, North America model
Radio protocol:
Jeweller, two-way encrypted wireless
Frequency band (North America):
905.0-926.5 MHz, certified to UL/ULC standards
Radio modulation:
GFSK with frequency hopping
Encryption:
Block encryption with a dynamic key
Communication loss detection:
After 36 seconds
Anti-spoofing:
Device authentication
Warranty:
24 months
What does ReX 2 do that ReX does not?
It supports the Wings protocol, so it forwards photo verification from MotionCam detectors, and it has an Ethernet port so the extended segment can reach the hub over the network.
How much faster is Ethernet for photo delivery?
Photos arrive in about 10 seconds over Ethernet against 18 seconds over the Wings radio channel, so a wired connection meaningfully improves verification speed.
Can it serve a separate building?
Yes. Where the far building has a network drop but no reliable radio path to the hub, ReX 2 connects over Ethernet and serves the devices around it locally.
Does this device need an Ajax hub?
Yes. All Jeweller devices report to an Ajax hub or a range extender. The device cannot operate standalone and does not connect to a third-party panel directly.
What does the 9NA region code mean?
It is the North America model, operating on the 905.0-926.5 MHz Jeweller band certified to UL/ULC standards. European models on 868 MHz are not interchangeable with it.
How quickly is a lost device detected?
Within 36 seconds. Jeweller polls each device continuously, so a jammed, removed or failed device is reported rather than quietly going offline.
